Bals Elektrotechnik 17524 17524 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection type (IP) IP44
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
400 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type
Lower and upper part
IP44
- Factory colour
Red
- Dim
(L x W x H) 191 x 180 x 500 mm
- Length
191 mm
- Width
180 mm
- Height
500 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135058 Bals Elektrotechnik 17524 17524 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135058 Bals Elektrotechnik 17524 17524 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
Description

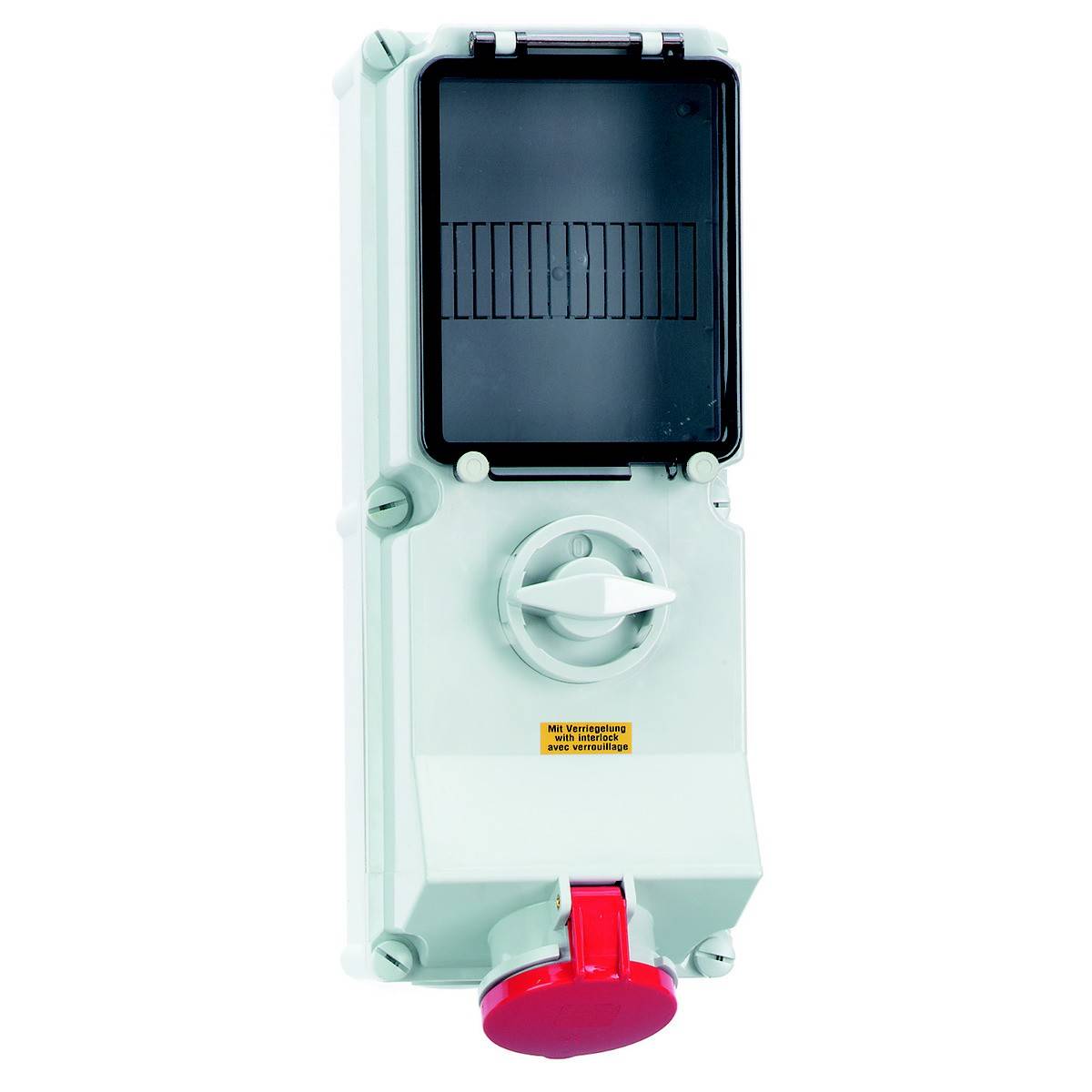

Wall socket can be switched off, locked, secured
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device color: Smoke topaz control flap, red flap lid RAL 3000, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray housing part RAL 7035, gray switch knob RAL 7035

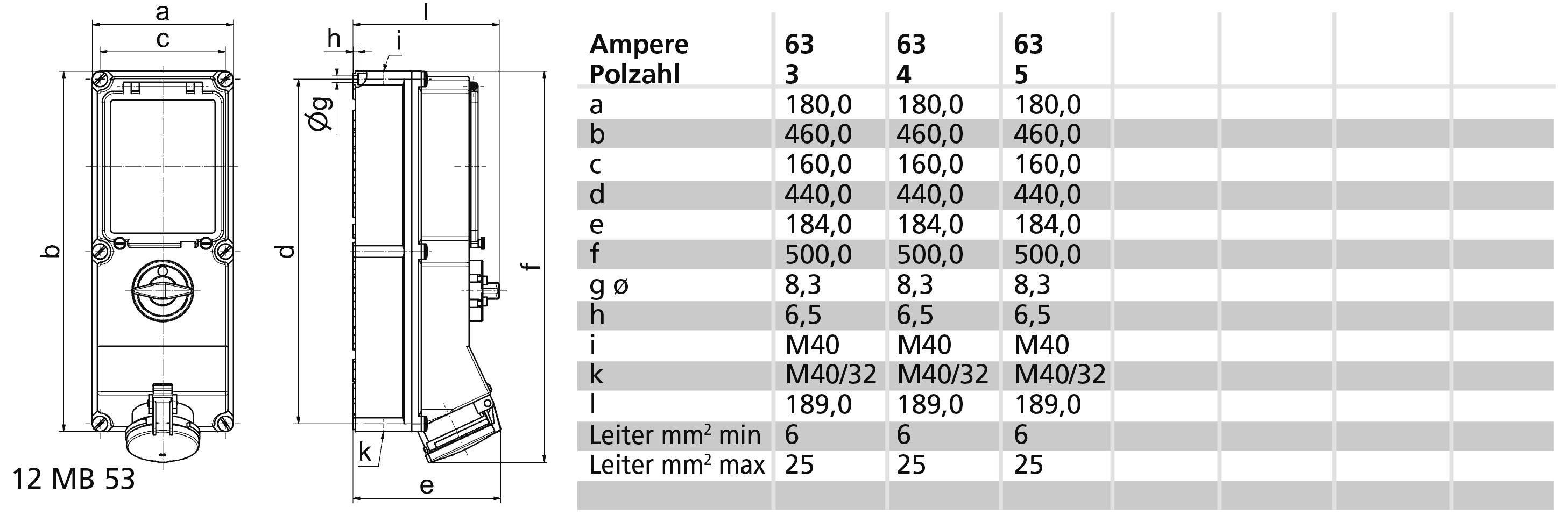

Device height: 500 mm, device width: 180 mm, device depth: 191 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, in 0 position lockable for up to 4 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 8 division units is available horizontally under the operating flap
This text is machine translated.
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device color: Smoke topaz control flap, red flap lid RAL 3000, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray housing part RAL 7035, gray switch knob RAL 7035
Device height: 500 mm, device width: 180 mm, device depth: 191 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, in 0 position lockable for up to 4 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 8 division units is available horizontally under the operating flap
