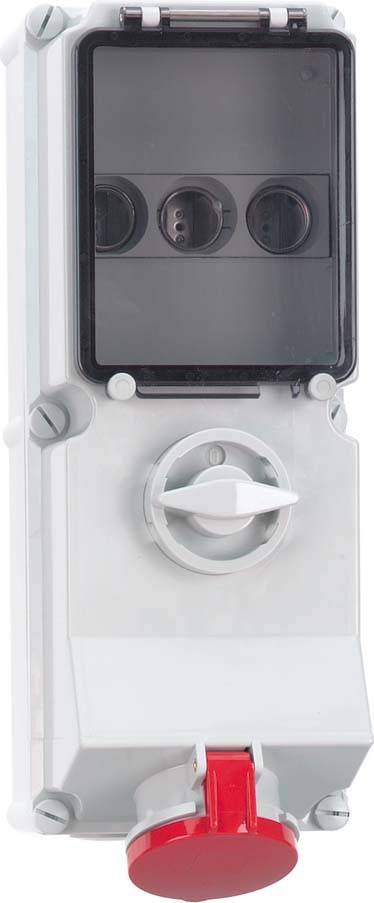

Bals Elektrotechnik 1786 1786 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection type (IP) IP44
- Switch: With on/off switch without locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- D-fuse
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
On/off switch
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Cores
5
- Type
Lower and upper part
IP44
- Factory colour
Red
- Dim
(L x W x H) 153 x 134 x 391 mm
- Length
153 mm
- Width
134 mm
- Height
391 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147408 Bals Elektrotechnik 1786 1786 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147408 Bals Elektrotechnik 1786 1786 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket can be switched off and protected
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 365x134 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D-fuse
Cable entry: 1xM40/M32 top, 1xM40/M32 bottom
Device color: Smoke topaz control flap, red flap lid RAL 3000, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray housing part RAL 7035, gray switch knob RAL 7035
Device height: 391 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7mm, a D III 3-pin fuse socket is available under the operating flap
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 365x134 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D-fuse
Cable entry: 1xM40/M32 top, 1xM40/M32 bottom
Device color: Smoke topaz control flap, red flap lid RAL 3000, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray housing part RAL 7035, gray switch knob RAL 7035
Device height: 391 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7mm, a D III 3-pin fuse socket is available under the operating flap
This text is machine translated.
