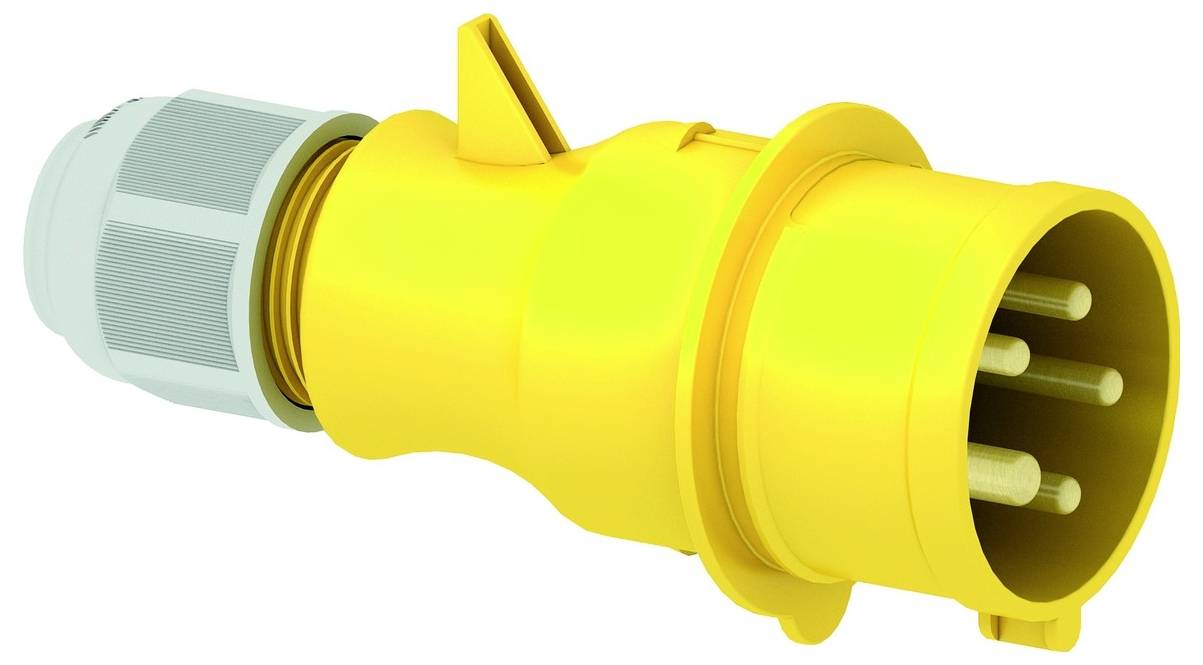

Image similar
Bals Elektrotechnik 21009-TLS 21009-TLS CEE plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 1012
- Protection type (IP) IP44
- IEC current 16 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Phase inverter: No.
- With straight plug
- Product type
CEE plug
- Cores
5
- Dim
(L x W x H) 75 x 66 x 146 mm
- Length
75 mm
- Width
66 mm
- Height
146 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547310 Bals Elektrotechnik 21009-TLS 21009-TLS CEE plug 1 pc(s)
Description
Plug TLS with MULTI-Grip screw connection
16A 5P (3P+N+PE) 110V (57/100 - 75/130V~) 4H IP44
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Yellow housing RAL 1012, cable gland gray RAL 7035
Device height: 146 mm, device width: 66 mm, device depth: 75 mm
Other technical features: With multi-grip cable gland and integrated strain relief, the casing is one-piece, for cables with a min. Diameter from 8 mm to max. Diameter 18 mm
This text is machine translated.
