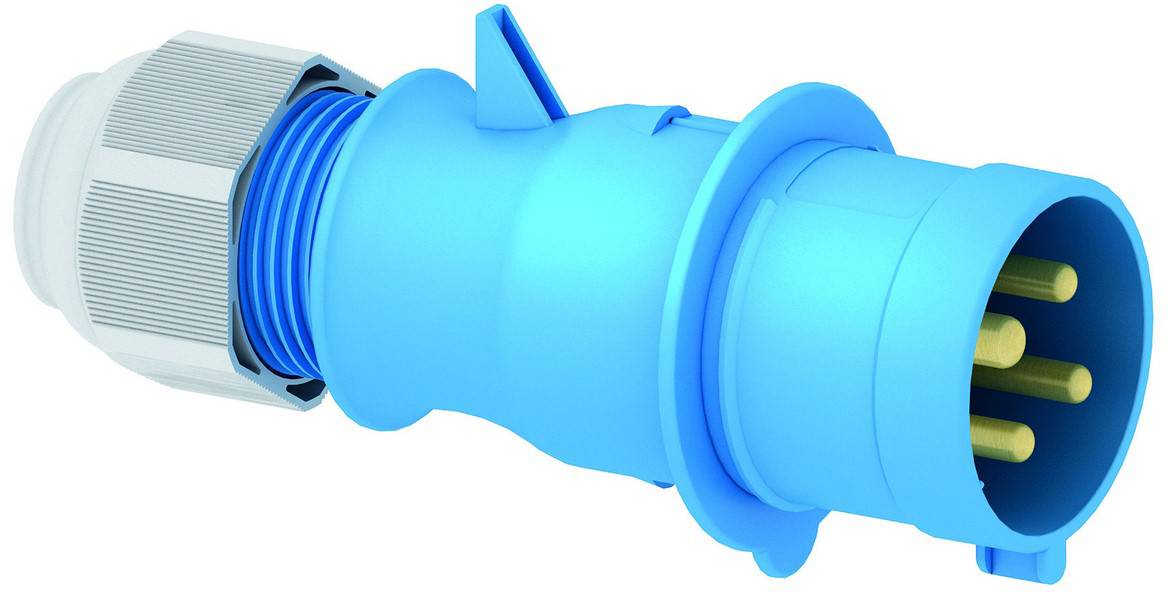

Image similar
Bals Elektrotechnik 21020-TLS 21020-TLS CEE plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 6002
- Protection type (IP) IP44
- IEC current 32 A.
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Phase inverter: No.
- With straight plug
- Product type
CEE plug
- Cores
4
- Factory colour
RAL 6002 (Leaf Green)
- Dim
(W x H) 71 mm x 167 mm
- Width
71 mm
- Height
167 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544710 Bals Elektrotechnik 21020-TLS 21020-TLS CEE plug 1 pc(s)
Description
Plug TLS with MULTI-Grip screw connection
32A 4p (3P+PE) >50V green >300-500Hz (> 50V~) 2h IP44
Frequency: Over 300 Hz up to and including 500Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Green housing RAL 6002, cable gland gray RAL 7035
Device height: 167 mm, device width: 71 mm, device depth: 81 mm
Other technical features: With multi-grip cable gland and integrated strain relief, the casing is one-piece, for cables with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
32A 4p (3P+PE) >50V green >300-500Hz (> 50V~) 2h IP44
Frequency: Over 300 Hz up to and including 500Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Green housing RAL 6002, cable gland gray RAL 7035
Device height: 167 mm, device width: 71 mm, device depth: 81 mm
Other technical features: With multi-grip cable gland and integrated strain relief, the casing is one-piece, for cables with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
