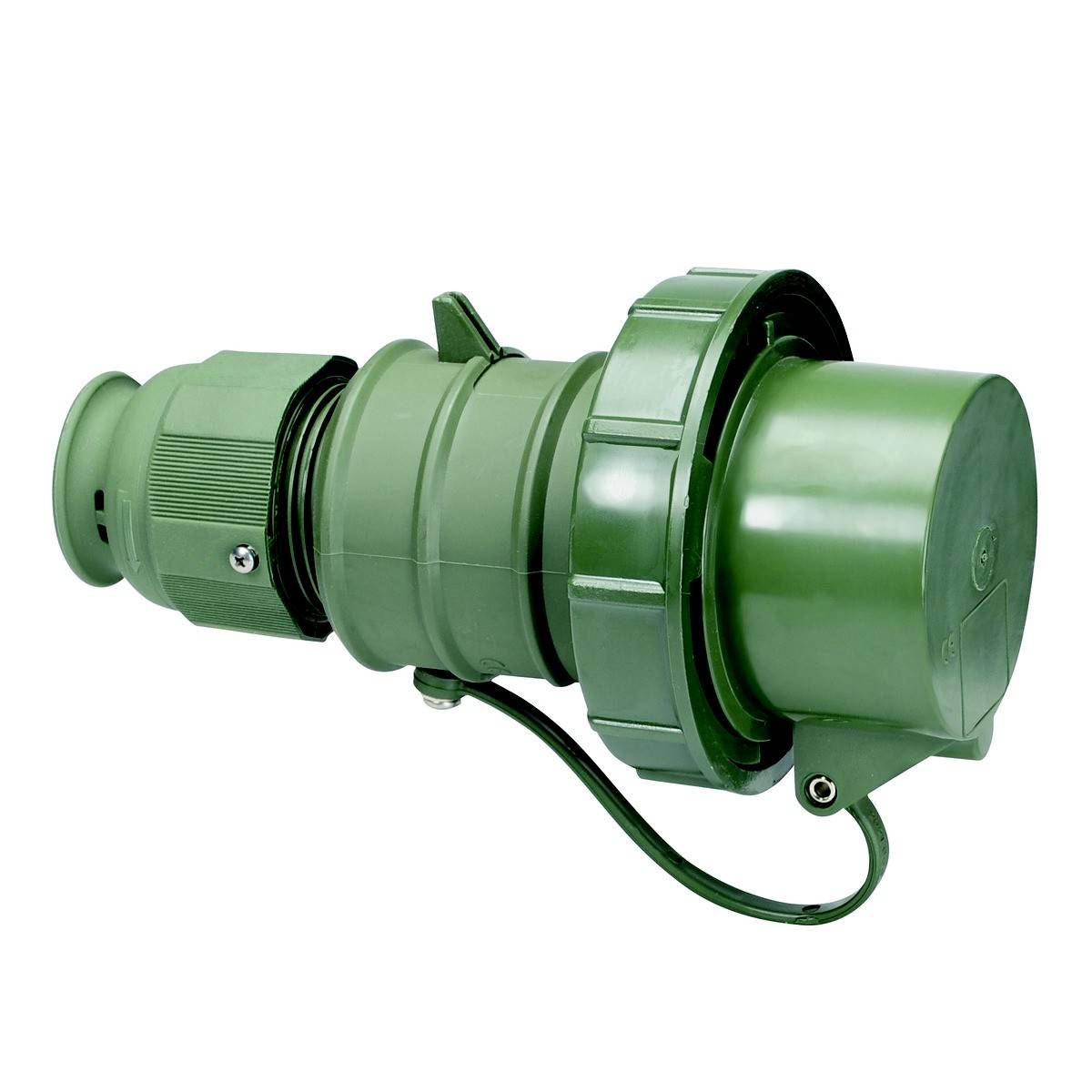

Bals Elektrotechnik 210403 210403 CEE plug 16.0 A 3-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of poles: 3
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- RAL number: 6002
- Phase inverter: No.
- Protection class (IP) IP67
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Product type
CEE plug
- Nominal voltage
500 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
straight
IP67
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
3
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135014 Bals Elektrotechnik 210403 210403 CEE plug 16.0 A 3-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135014 Bals Elektrotechnik 210403 210403 CEE plug 16.0 A 3-pin 500 V 1 pc(s)
Description
QUICK-CONNECT TN. PLUG
16A 3p (2P+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Bronze green cable connector RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green housing cover RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green cover RAL 6031-F09

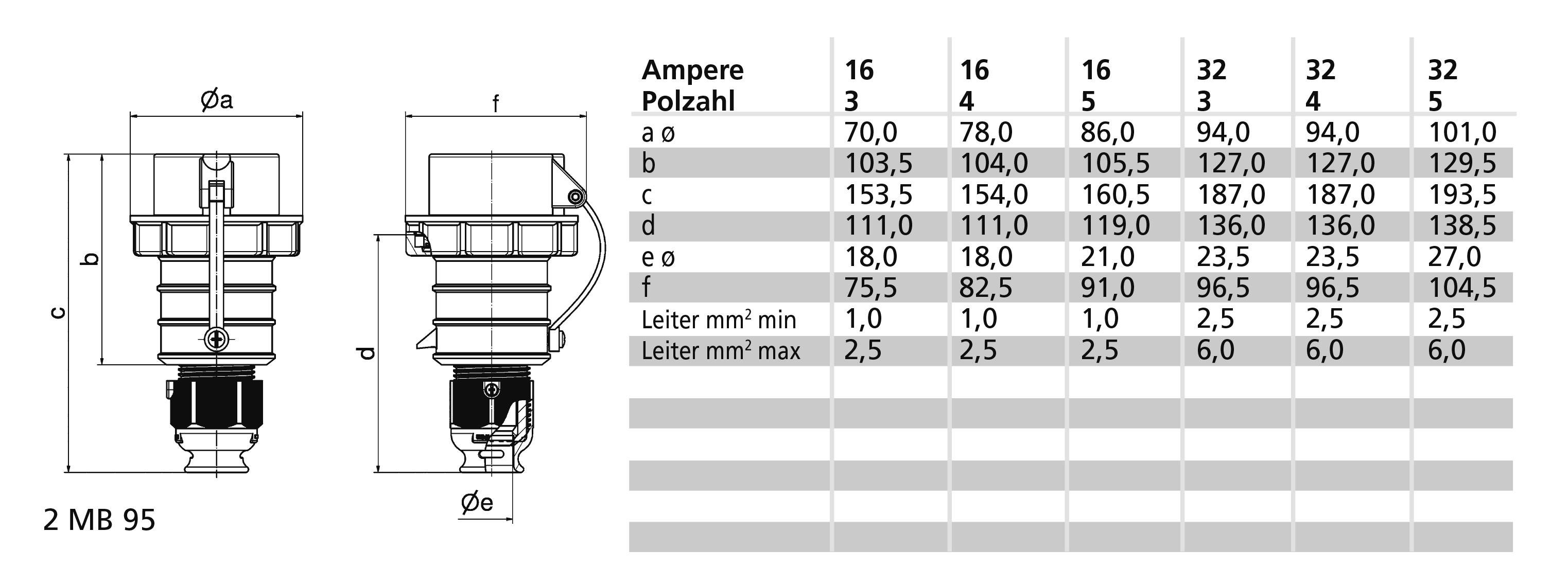

Device height: 154 mm, device width: 70.5 mm, device depth: 76 mm
Other technical features: For cables with a min. Diameter from 8 mm to max. Diameter 18 mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, with sealing hood
VG type no.: VG 96919 CP 039
This text is machine translated.
