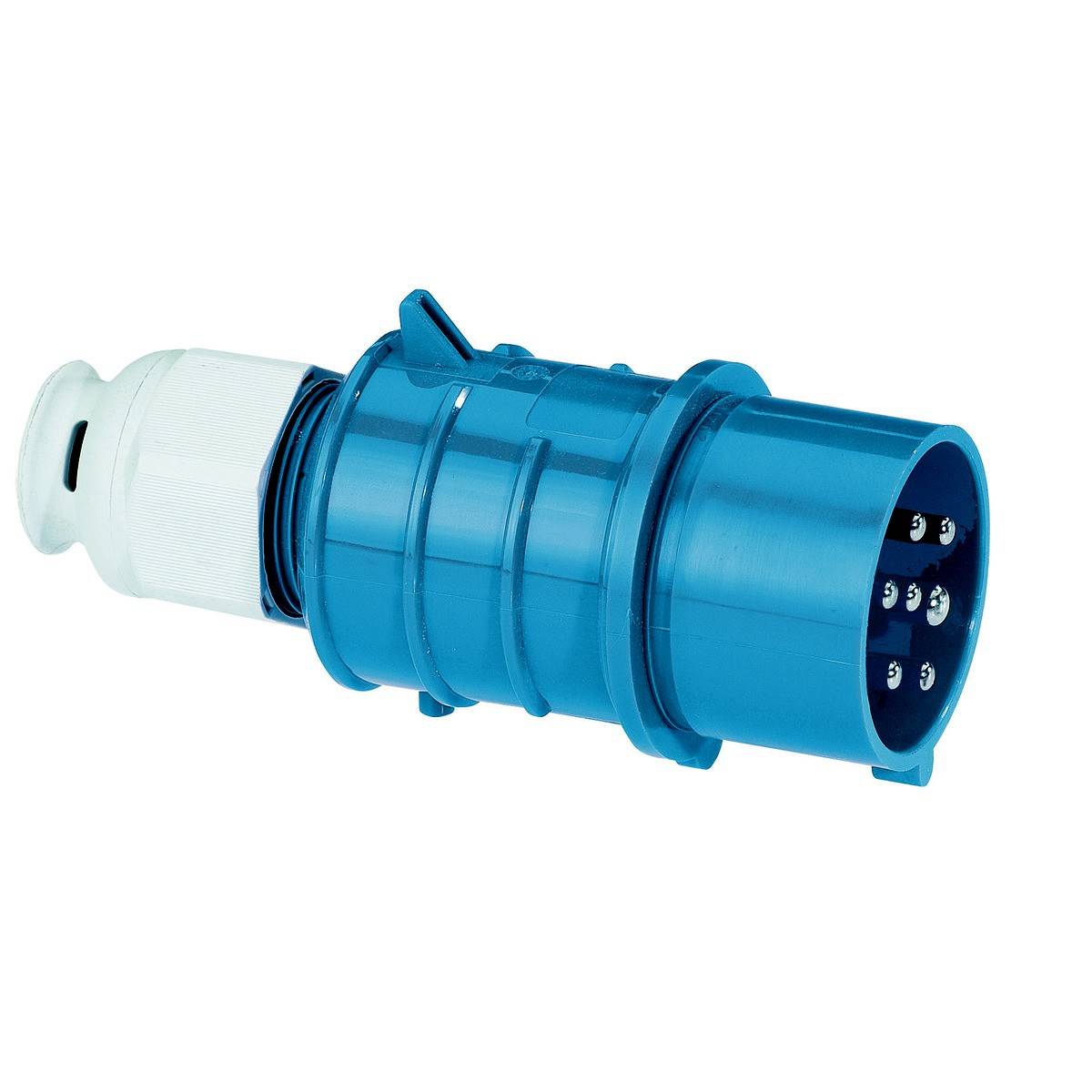

Bals Elektrotechnik 210550 210550 CEE plug 16.0 A 7-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 7
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- RAL number: 5015
- Phase inverter: No.
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
230 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
straight
IP44
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
7
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
230 V
5015
Gland nut
7
Plastic
Nickel-plated
16 A
Screwed terminal
Straight
CuZn
IP44
FALSE
9 h
Blue
230 V (50+60 Hz) blue
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146351 Bals Elektrotechnik 210550 210550 CEE plug 16.0 A 7-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146351 Bals Elektrotechnik 210550 210550 CEE plug 16.0 A 7-pin 230 V 1 pc(s)
Description
TE plug
16A 7P (6P+PE) 230V (230V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Collar blue RAL 5015, cable gland gray RAL 7035, housing cover blue RAL 5015

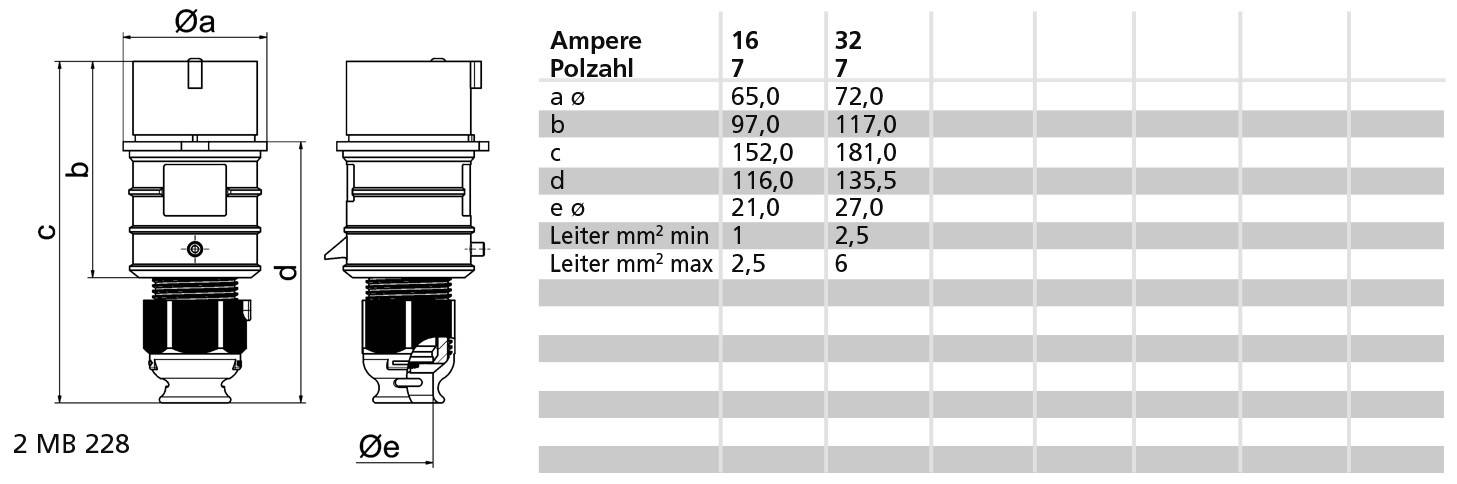

Device height: 154 mm, device width: 65 mm, device depth: 74 mm
Other technical features: For cables with a min. Diameter from 10mm to max. Diameter 21 mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
16A 7P (6P+PE) 230V (230V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Collar blue RAL 5015, cable gland gray RAL 7035, housing cover blue RAL 5015
Device height: 154 mm, device width: 65 mm, device depth: 74 mm
Other technical features: For cables with a min. Diameter from 10mm to max. Diameter 21 mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
