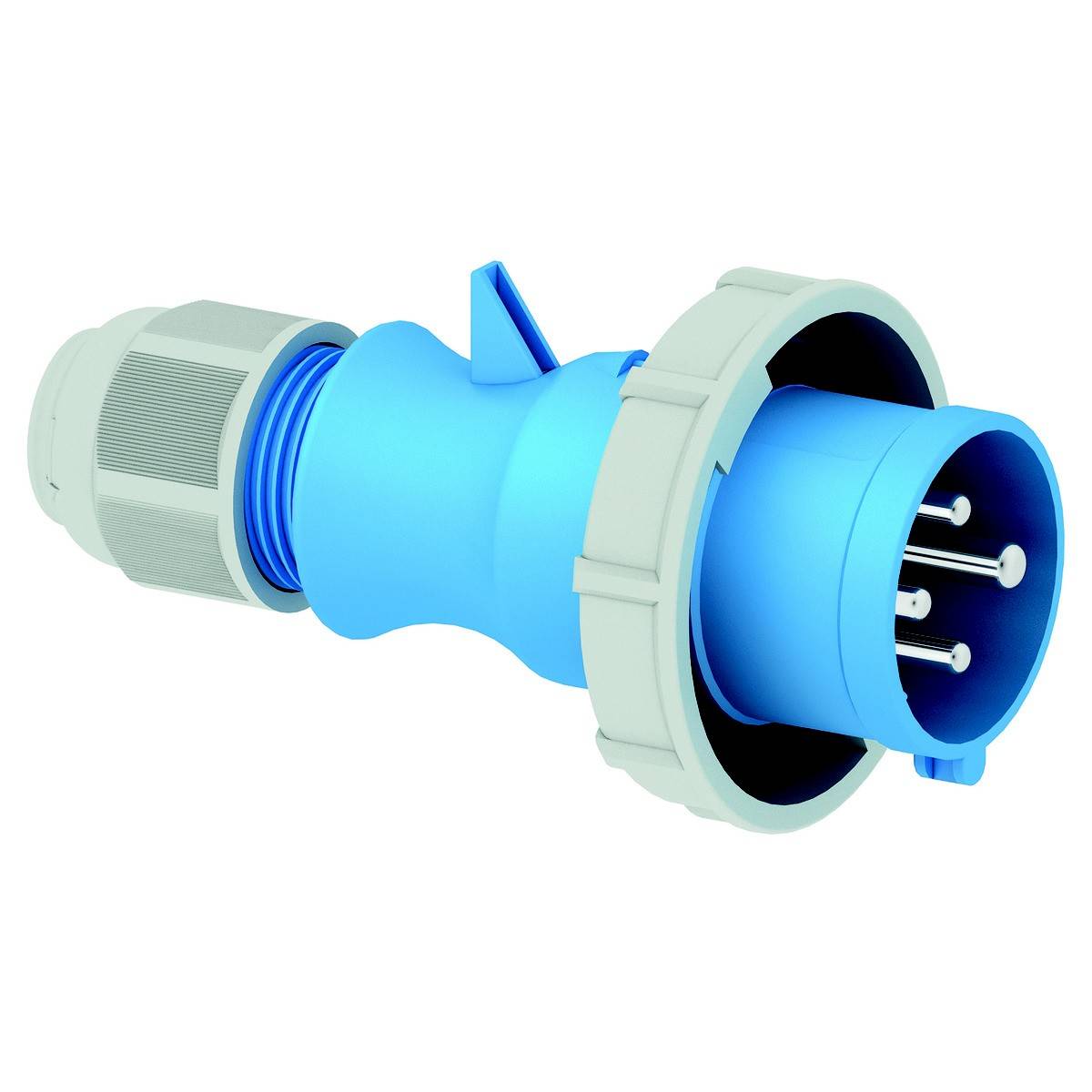

Bals Elektrotechnik 210582 210582 CEE plug 16.0 A 4-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- RAL number: 5015
- Phase inverter: No.
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
230 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
straight
IP67
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
4
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146149 Bals Elektrotechnik 210582 210582 CEE plug 16.0 A 4-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146149 Bals Elektrotechnik 210582 210582 CEE plug 16.0 A 4-pin 230 V 1 pc(s)
Description
Plug TLS with MULTI-Grip screw connection
16A 4P (3P+PE) 230V (200 - 250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Housing blue RAL 5015, bayonet ring gray RAL 7035, cable gland gray RAL 7035

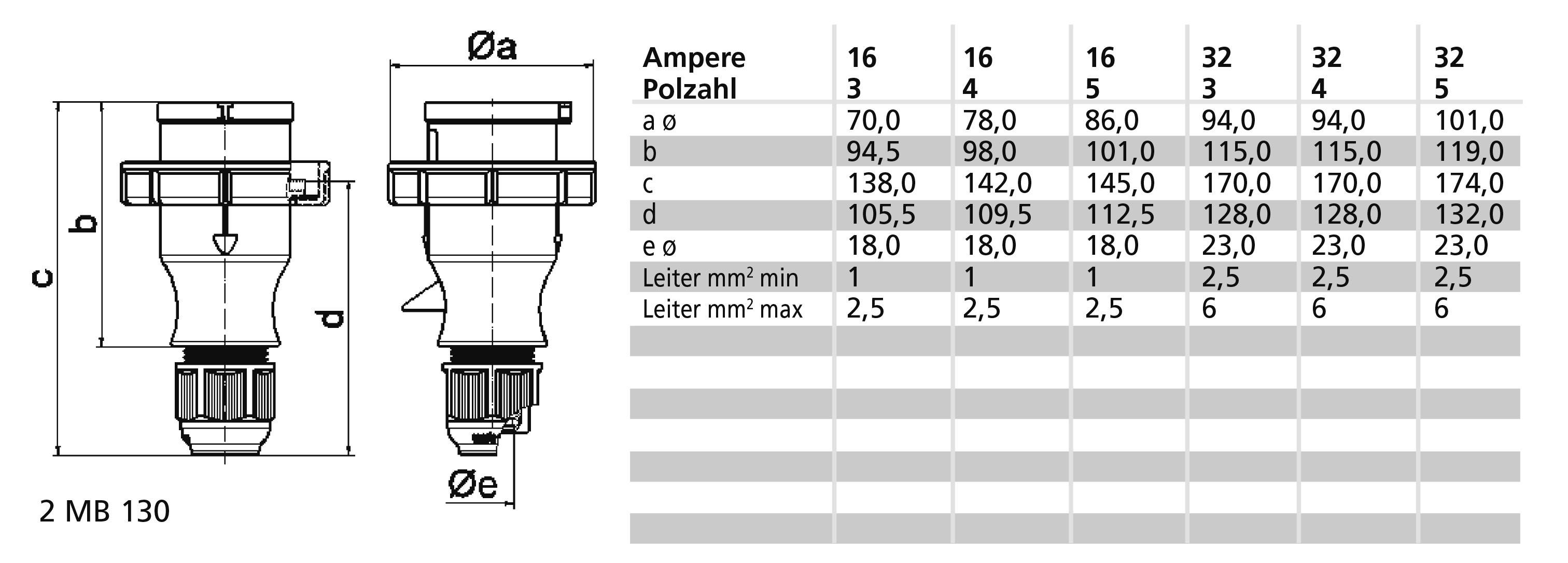

Device height: 143 mm, device width: 78 mm, device depth: 78 mm
Other technical features: The casing is one-piece, With MULTI-Grip cable gland and integrated strain relief, for cable with a min. Diameter from 8 mm to max. Diameter 18 mm
This text is machine translated.
16A 4P (3P+PE) 230V (200 - 250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Housing blue RAL 5015, bayonet ring gray RAL 7035, cable gland gray RAL 7035
Device height: 143 mm, device width: 78 mm, device depth: 78 mm
Other technical features: The casing is one-piece, With MULTI-Grip cable gland and integrated strain relief, for cable with a min. Diameter from 8 mm to max. Diameter 18 mm
