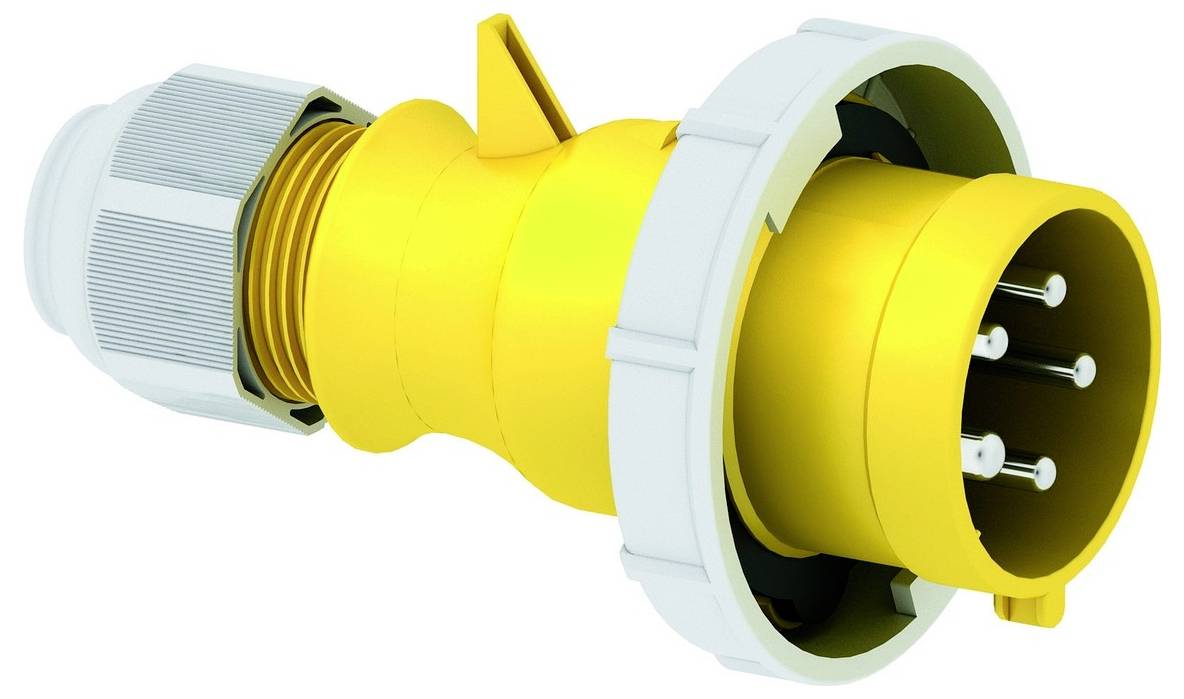

Image similar
Bals Elektrotechnik 210605 210605 CEE plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 1012
- Protection class (IP) IP67
- IEC current 32 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Phase inverter: No.
- With straight plug
- Product type
CEE plug
- Type A
CEE plug
- Cores
5
- Dim
(L x W x H) 101 x 101 x 174 mm
- Length
101 mm
- Width
101 mm
- Height
174 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543414 Bals Elektrotechnik 210605 210605 CEE plug 1 pc(s)
Description
Plug TLS with MULTI-Grip screw connection
32A 5P (3P+N+PE) 110V (57/100 - 75/130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Cable gland gray RAL 7035, housing yellow RAL 1012, bayonet ring gray RAL 7035
Device height: 174 mm, device width: 101 mm, device depth: 101 mm
Other technical features: The casing is one-piece, With Multi-Grip cable gland and integrated strain relief, for cable with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
32A 5P (3P+N+PE) 110V (57/100 - 75/130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Cable gland gray RAL 7035, housing yellow RAL 1012, bayonet ring gray RAL 7035
Device height: 174 mm, device width: 101 mm, device depth: 101 mm
Other technical features: The casing is one-piece, With Multi-Grip cable gland and integrated strain relief, for cable with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
