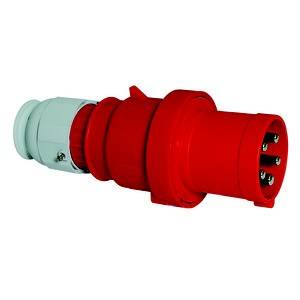

Bals Elektrotechnik 210765 210765 CEE plug 63.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Phase inverter: No.
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
400 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
Screwless terminal
- Type B
CEE plug
- Type
straight
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
400 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3146375 Bals Elektrotechnik 210765 210765 CEE plug 63.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146375 Bals Elektrotechnik 210765 210765 CEE plug 63.0 A 5-pin 400 V 1 pc(s)
Description
QUICK-CONNECT TE PLUG
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw less spring clamp technology with frame terminals
Cable entry: With cable gland
Colour: Control slide gray RAL 7035, housing cover red RAL 3000, collar red RAL 3000, cable gland gray RAL 7035
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw less spring clamp technology with frame terminals
Cable entry: With cable gland
Colour: Control slide gray RAL 7035, housing cover red RAL 3000, collar red RAL 3000, cable gland gray RAL 7035
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
