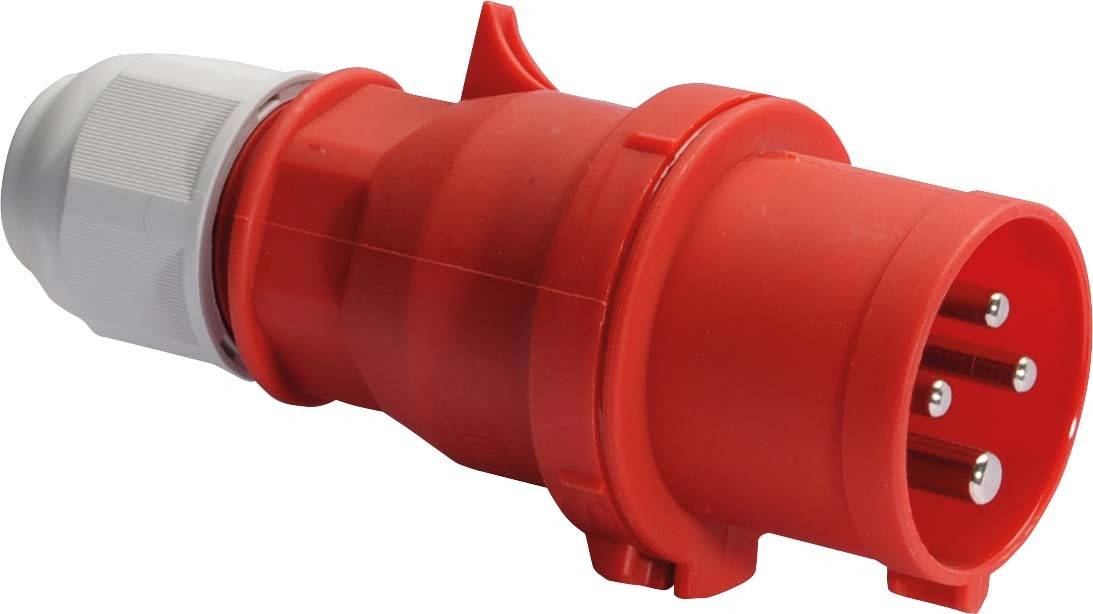

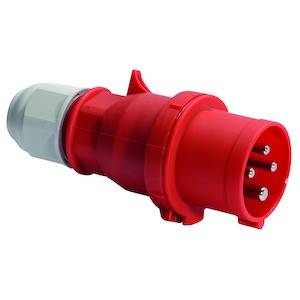

Bals Elektrotechnik 2130 2130 CEE plug 16.0 A 4-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Phase inverter: No.
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type B
CEE plug
- Type
straight
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
4
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
400 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3146892 Bals Elektrotechnik 2130 2130 CEE plug 16.0 A 4-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146892 Bals Elektrotechnik 2130 2130 CEE plug 16.0 A 4-pin 400 V 1 pc(s)
Description
QUICK connect plug
16A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with socket spring clamps
Cable entry: With cable gland
Colour: Red housing RAL 3000, red collar RAL 3000, cable gland gray RAL 7035

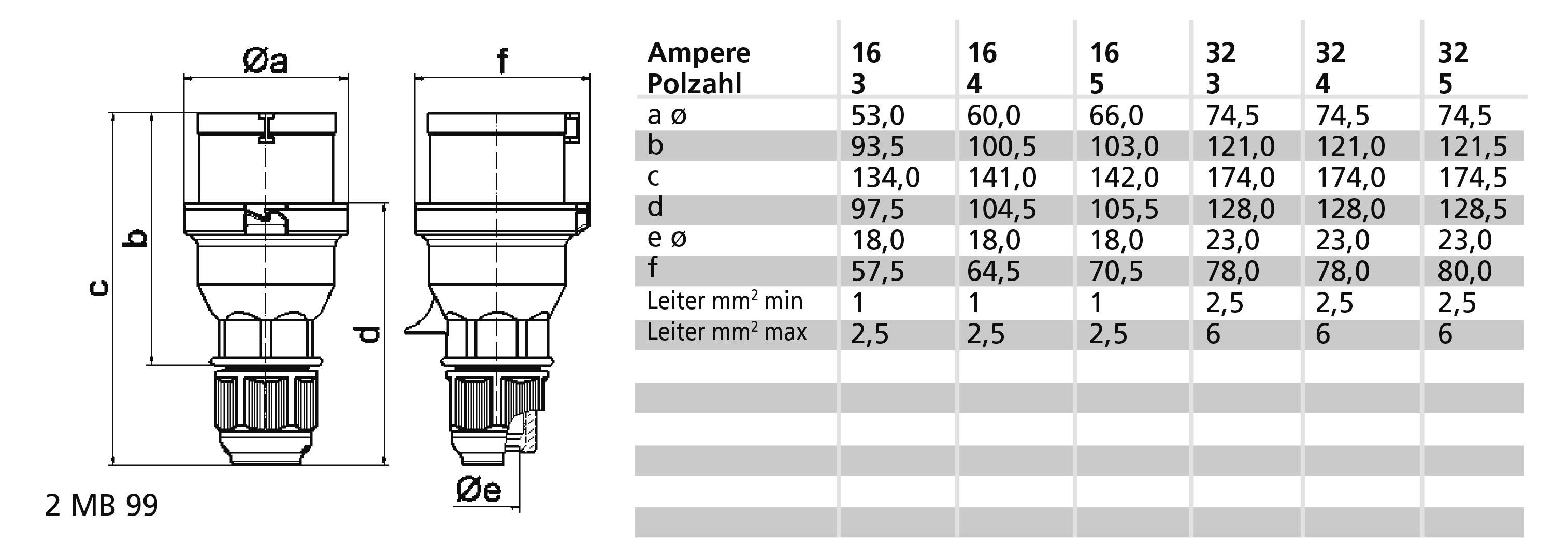

Device height: 146 mm, device width: 60 mm, device depth: 65 mm
Other technical features: With MULTI-Grip cable gland and integrated strain relief, the connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 8 mm to max. Diameter 18 mm
This text is machine translated.
16A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with socket spring clamps
Cable entry: With cable gland
Colour: Red housing RAL 3000, red collar RAL 3000, cable gland gray RAL 7035
Device height: 146 mm, device width: 60 mm, device depth: 65 mm
Other technical features: With MULTI-Grip cable gland and integrated strain relief, the connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 8 mm to max. Diameter 18 mm
