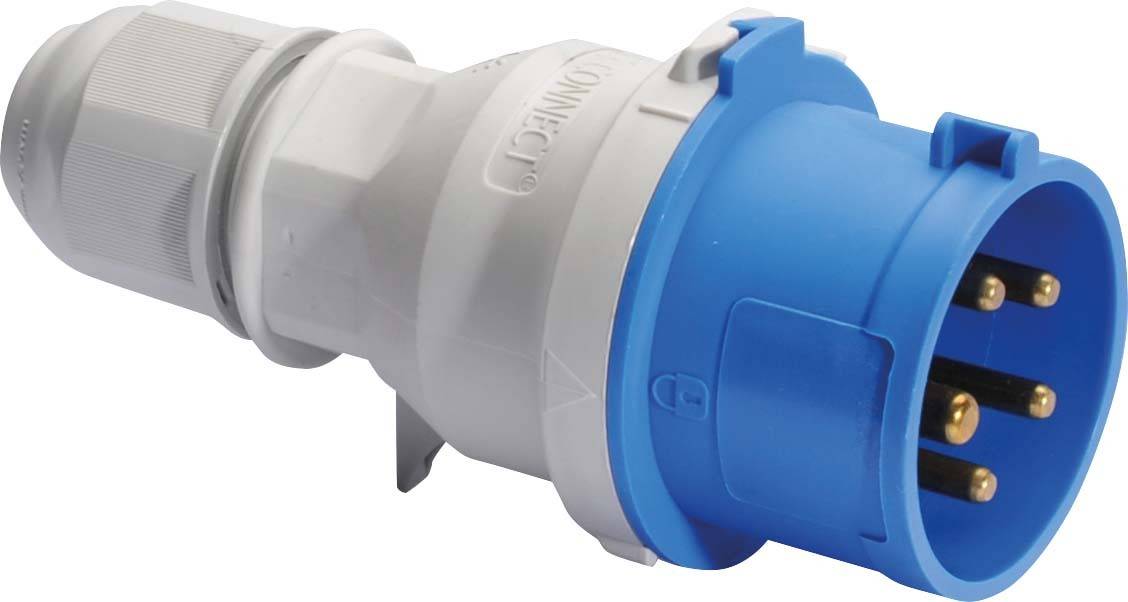

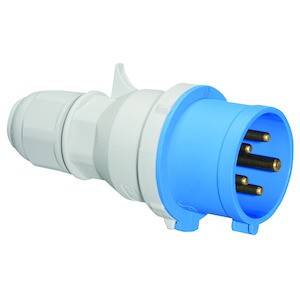

Bals Elektrotechnik 2135 2135 CEE plug 16.0 A 5-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- RAL number: 5015
- Phase inverter: No.
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
230 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
straight
IP44
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3146965 Bals Elektrotechnik 2135 2135 CEE plug 16.0 A 5-pin 230 V 1 pc(s)
Description
QUICK connect plug
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact carrier/contacts: The contacts are bare brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with socket spring clamps
Cable entry: With cable gland
Colour: Collar blue RAL 5015, housing cover gray RAL 7035, cable gland gray RAL 7035

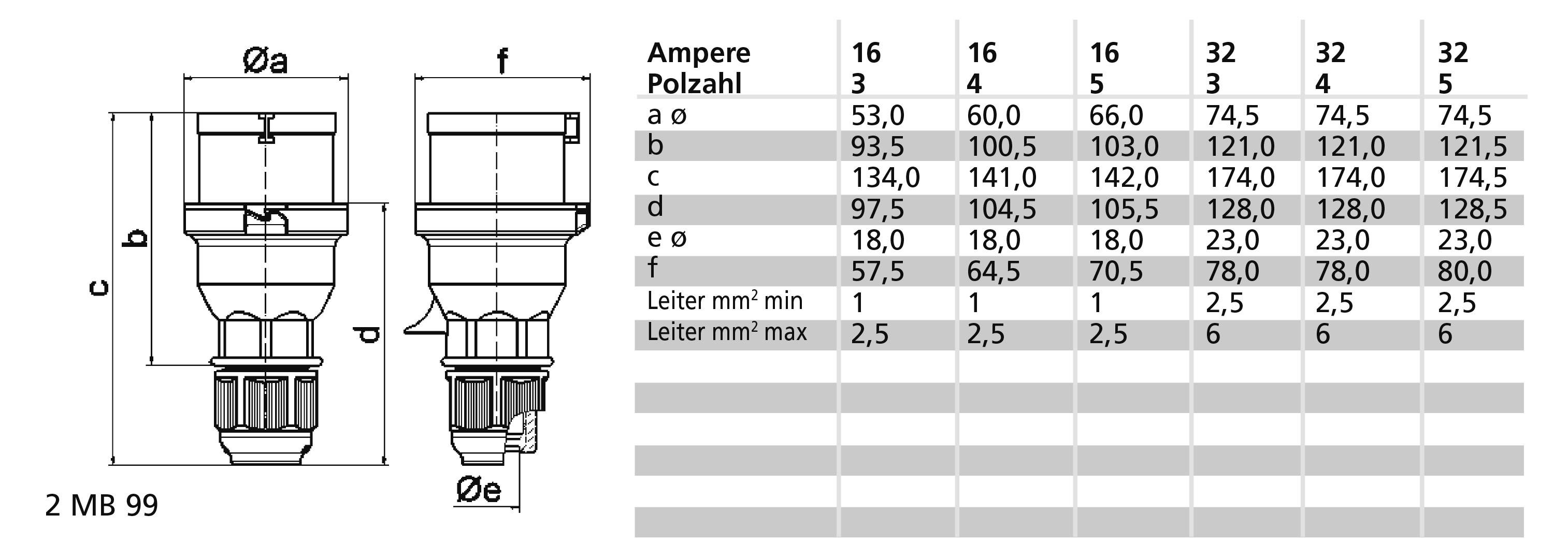

Device height: 147 mm, device width: 71 mm, device depth: 75 mm
Other technical features: With MULTI-Grip cable gland and integrated strain relief, the connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 8 mm to max. Diameter 18 mm
This text is machine translated.
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact carrier/contacts: The contacts are bare brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with socket spring clamps
Cable entry: With cable gland
Colour: Collar blue RAL 5015, housing cover gray RAL 7035, cable gland gray RAL 7035
Device height: 147 mm, device width: 71 mm, device depth: 75 mm
Other technical features: With MULTI-Grip cable gland and integrated strain relief, the connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 8 mm to max. Diameter 18 mm
