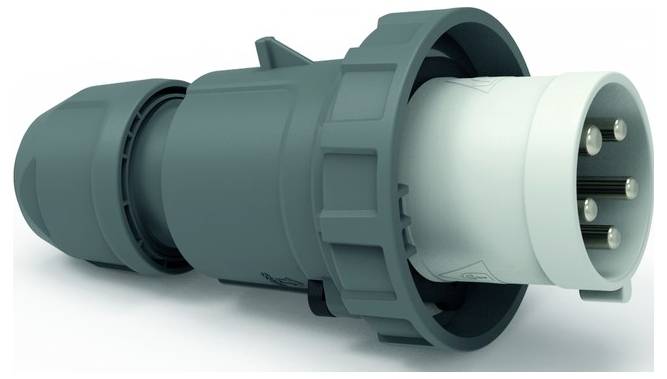

Image similar
Bals Elektrotechnik 21400 21400 CEE plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE plug
- Type A
CEE plug
- Cores
5
- Factory colour
Grey
- Dim
(W x H) 114 mm x 234 mm
- Width
114 mm
- Height
234 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546277 Bals Elektrotechnik 21400 21400 CEE plug 1 pc(s)
Description
TE plug
63A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1H IP67
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: With cable gland
Colour: Collar gray RAL 7035, operating slide black RAL 9005, housing cover dark gray RAL 7012, cable gland dark gray RAL 7012, bayonet ring dark gray RAL 7012
Device height: 234 mm, device width: 114 mm, device depth: 114 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, with MULTI-Grip cable screwing and integrated strain relief
This text is machine translated.
63A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1H IP67
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: With cable gland
Colour: Collar gray RAL 7035, operating slide black RAL 9005, housing cover dark gray RAL 7012, cable gland dark gray RAL 7012, bayonet ring dark gray RAL 7012
Device height: 234 mm, device width: 114 mm, device depth: 114 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, with MULTI-Grip cable screwing and integrated strain relief
This text is machine translated.
