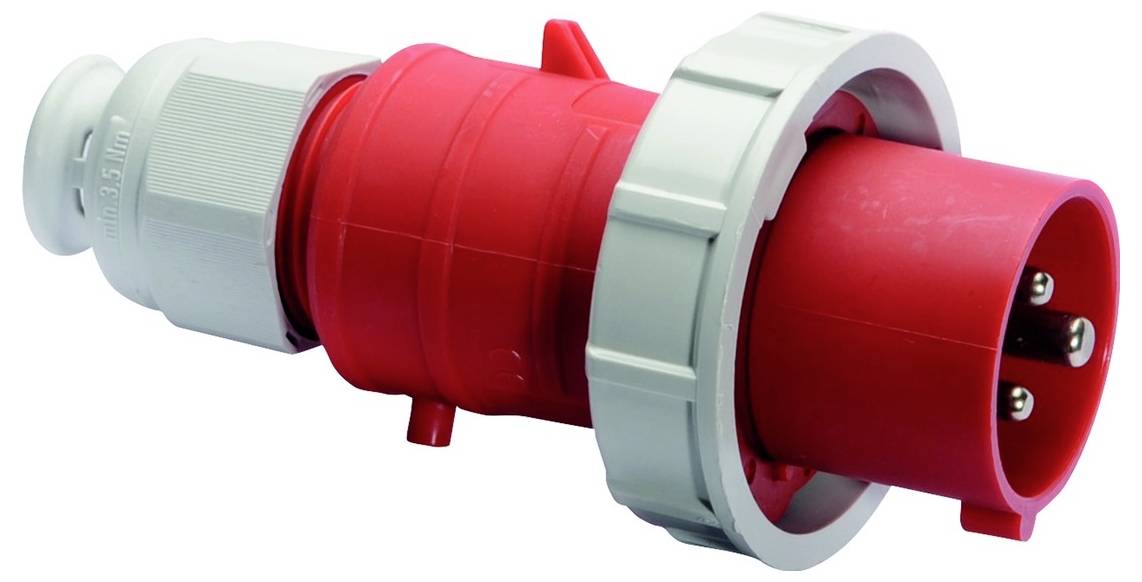

Image similar
Bals Elektrotechnik 21409 21409 CEE plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 3000
- Protection class (IP) IP67
- IEC current 32 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 9 h
- Colour code: Red
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Phase inverter: No.
- With straight plug
- Product type
CEE plug
- Features
Screwless terminals
- Cores
3
- Dim
(L x W x H) 94 x 94 x 180 mm
- Length
94 mm
- Width
94 mm
- Height
180 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547596 Bals Elektrotechnik 21409 21409 CEE plug 1 pc(s)
Description
QUICK-CONNECT TE PLUG
32A 3P (2P+PE) 400V (380 - 415V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Collar red RAL 3000, housing cover red RAL 3000, cable gland gray RAL 7035, bayonet ring gray RAL 7035
Device height: 180 mm, device width: 94 mm, device depth: 94 mm
Other technical features: With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, for cable with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
32A 3P (2P+PE) 400V (380 - 415V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Collar red RAL 3000, housing cover red RAL 3000, cable gland gray RAL 7035, bayonet ring gray RAL 7035
Device height: 180 mm, device width: 94 mm, device depth: 94 mm
Other technical features: With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, for cable with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
