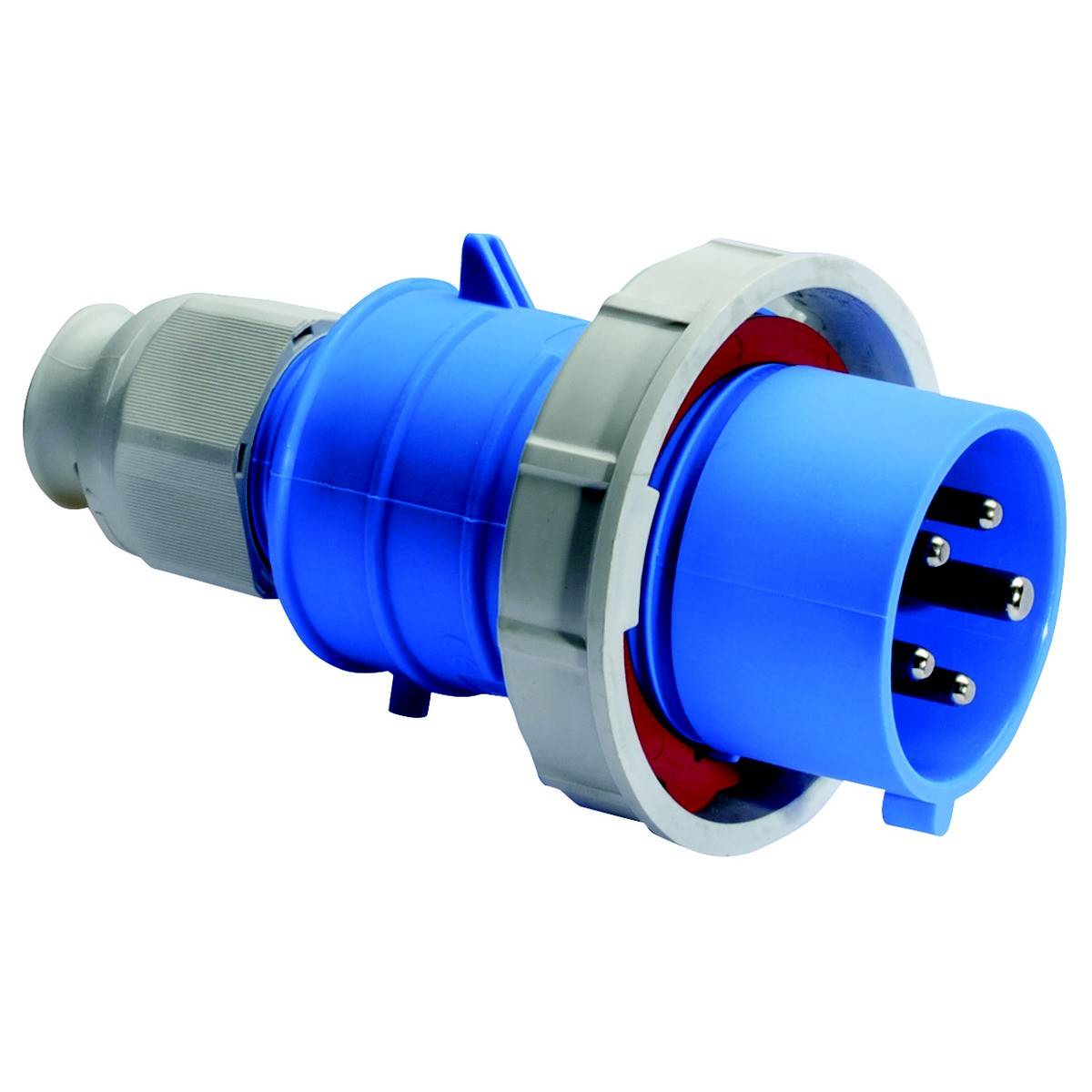

Bals Elektrotechnik 21414 21414 CEE plug 32.0 A 5-pin 230 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- RAL number: 5015
- Phase inverter: No.
- Protection class (IP) IP67
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
230 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
straight
IP67
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
230 V
5015
Gland nut
5
Plastic
Nickel-plated
32 A
Screw less terminal
Straight
CuZn
IP67
FALSE
9 h
Blue
230 V (50+60 Hz) blue
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135031 Bals Elektrotechnik 21414 21414 CEE plug 32.0 A 5-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135031 Bals Elektrotechnik 21414 21414 CEE plug 32.0 A 5-pin 230 V 1 pc(s)
Description
QUICK-CONNECT TE PLUG
32A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Collar blue RAL 5015, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing cover blue RAL 5015

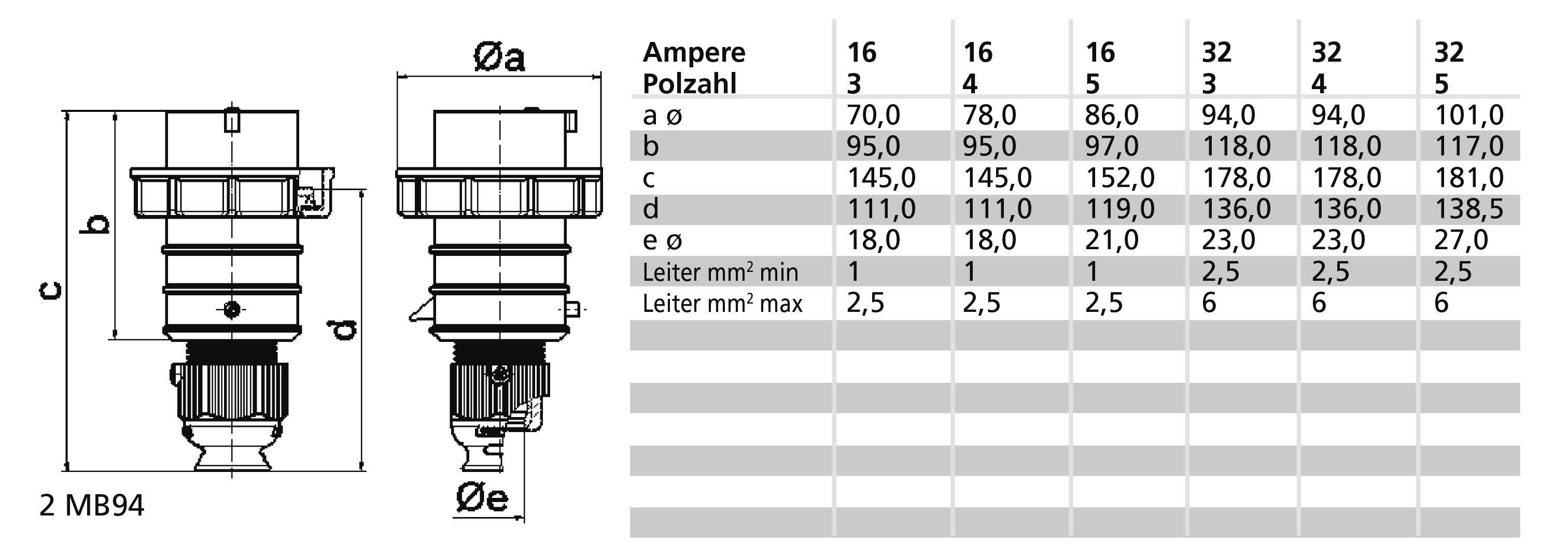

Device height: 182 mm, device width: 102 mm, device depth: 102 mm
Other technical features: For cables with a min. Diameter from 13 mm to max. Diameter 27mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
32A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Collar blue RAL 5015, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing cover blue RAL 5015
Device height: 182 mm, device width: 102 mm, device depth: 102 mm
Other technical features: For cables with a min. Diameter from 13 mm to max. Diameter 27mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
