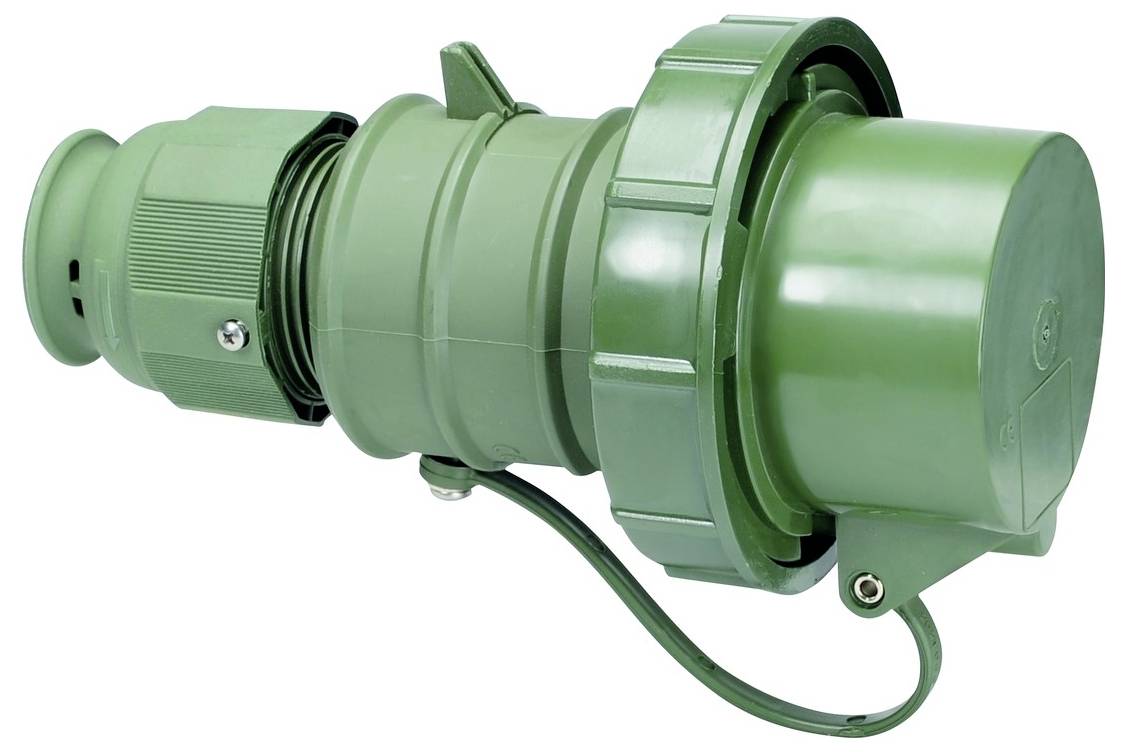

Bals Elektrotechnik 21424 21424 CEE plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 6031
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: Other
- Time setting 11 h
- Colour code: Green
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Phase inverter: No.
- With straight plug
- Product type
CEE plug
- Features
Screwless terminals
- Cores
5
- Factory colour
Green
- Dim
(L x W x H) 91 x 86.5 x 161 mm
- Length
91 mm
- Width
86.5 mm
- Height
161 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547595 Bals Elektrotechnik 21424 21424 CEE plug 1 pc(s)
Description
Quick Connect TN plug
16A 5P (3P+N+PE) 440 V (250/440 - 265/460V~) 11H IP67
Frequency: 60Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Bronze green cable gland RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green cover RAL 6031-F09, bronze green bayonet ring RAL 6031-F9, bronze green housing cover RAL 6031-F9
Device height: 161 mm, device width: 86.5 mm, device depth: 91 mm
Other technical features: For cables with a min. Diameter from 10mm to max. Diameter 21 mm, With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, with closing hood
VG type no.: VG 96919 CP 003
This text is machine translated.
16A 5P (3P+N+PE) 440 V (250/440 - 265/460V~) 11H IP67
Frequency: 60Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Bronze green cable gland RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green cover RAL 6031-F09, bronze green bayonet ring RAL 6031-F9, bronze green housing cover RAL 6031-F9
Device height: 161 mm, device width: 86.5 mm, device depth: 91 mm
Other technical features: For cables with a min. Diameter from 10mm to max. Diameter 21 mm, With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, with closing hood
VG type no.: VG 96919 CP 003
This text is machine translated.
