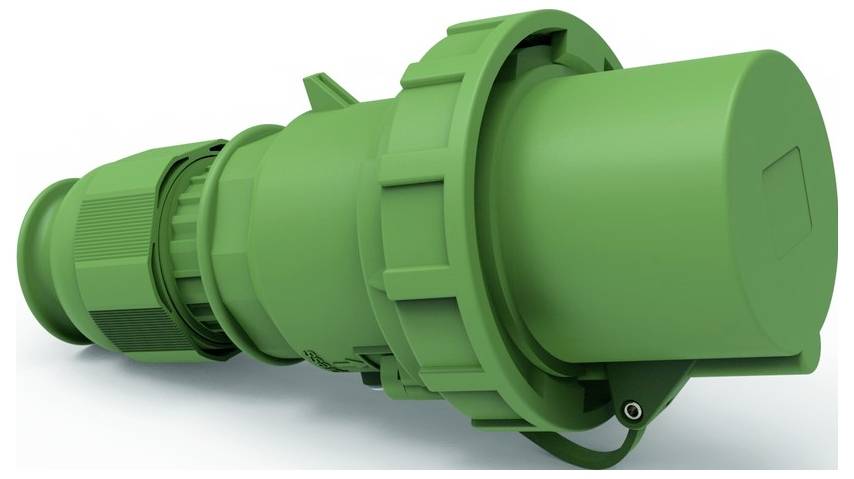

Image similar
Bals Elektrotechnik 21428 21428 CEE plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 5015
- Protection class (IP) IP67
- IEC current 63 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Phase inverter: No.
- With straight plug
- Product type
CEE plug
- Cores
5
- Dim
(L x W x H) 115 x 113.5 x 244 mm
- Length
115 mm
- Width
113.5 mm
- Height
244 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544975 Bals Elektrotechnik 21428 21428 CEE plug 1 pc(s)
Description
TN plug
63A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: With cable gland
Colour: Bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green housing cover RAL 6031-F9, actuator slide black RAL 9005
Device height: 244 mm, device width: 113.5 mm, device depth: 115 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it by means of screwdriver: With multi-grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, with closing hood
VG type no.: VG 96919 CP 010
This text is machine translated.
63A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: With cable gland
Colour: Bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green housing cover RAL 6031-F9, actuator slide black RAL 9005
Device height: 244 mm, device width: 113.5 mm, device depth: 115 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it by means of screwdriver: With multi-grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, with closing hood
VG type no.: VG 96919 CP 010
This text is machine translated.
