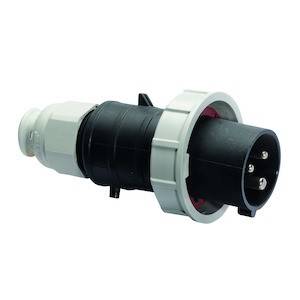

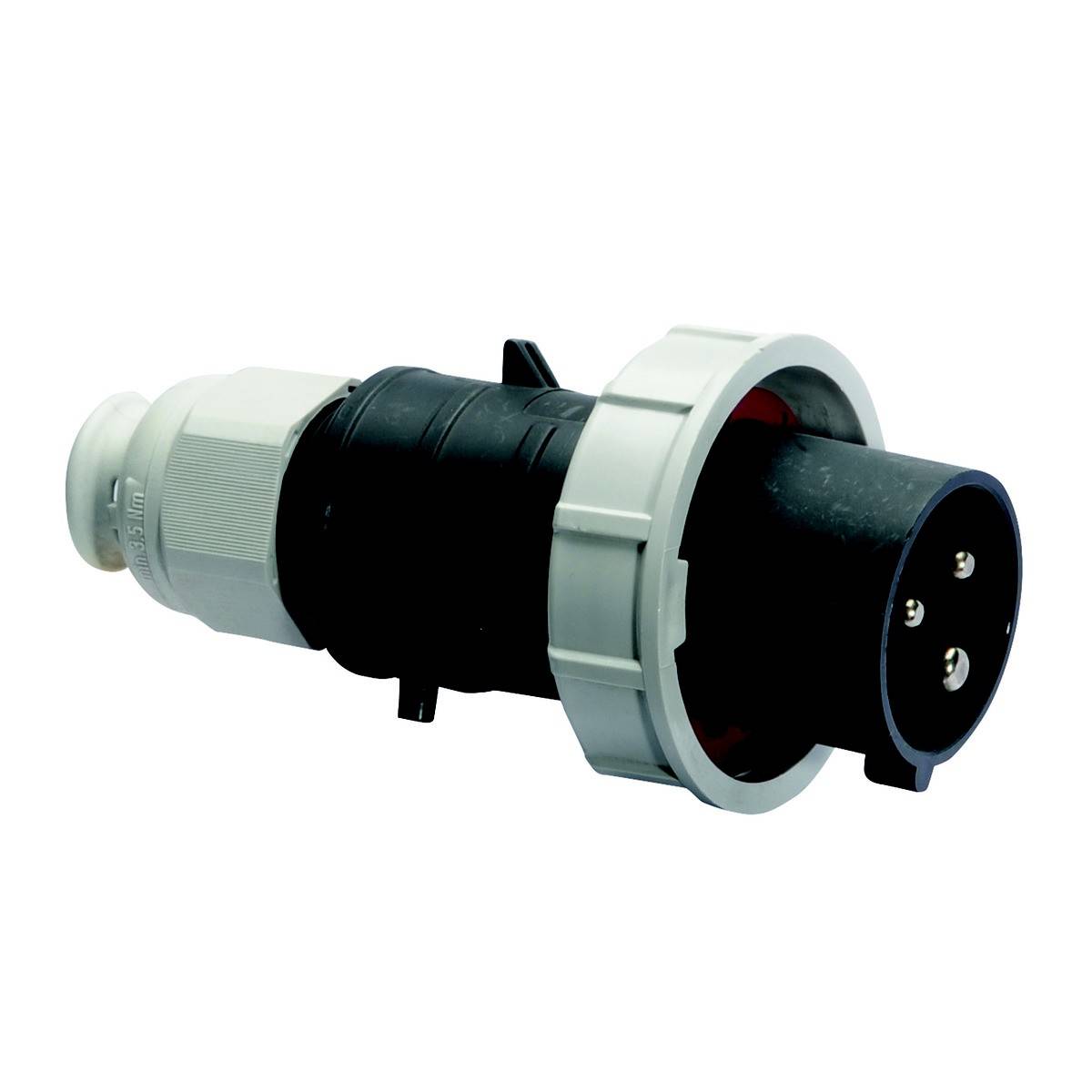

Bals Elektrotechnik 21487 21487 CEE plug 16.0 A 3-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of poles: 3
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- RAL number: 9005
- Phase inverter: No.
- Protection class (IP) IP67
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
500 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
straight
IP67
- Factory colour
Black
- Content
1 pc(s)
- Number of pins
3
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
500 V
9005
Gland nut
3
Plastic
Nickel-plated
16 A
Screw less terminal
Straight
CuZn
IP67
FALSE
7 h
Black
500 V (50+60 Hz) black
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146147 Bals Elektrotechnik 21487 21487 CEE plug 16.0 A 3-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146147 Bals Elektrotechnik 21487 21487 CEE plug 16.0 A 3-pin 500 V 1 pc(s)
Description
QUICK-CONNECT TE PLUG
16A 3P (2P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Collar black RAL 9005, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing cover black RAL 9005

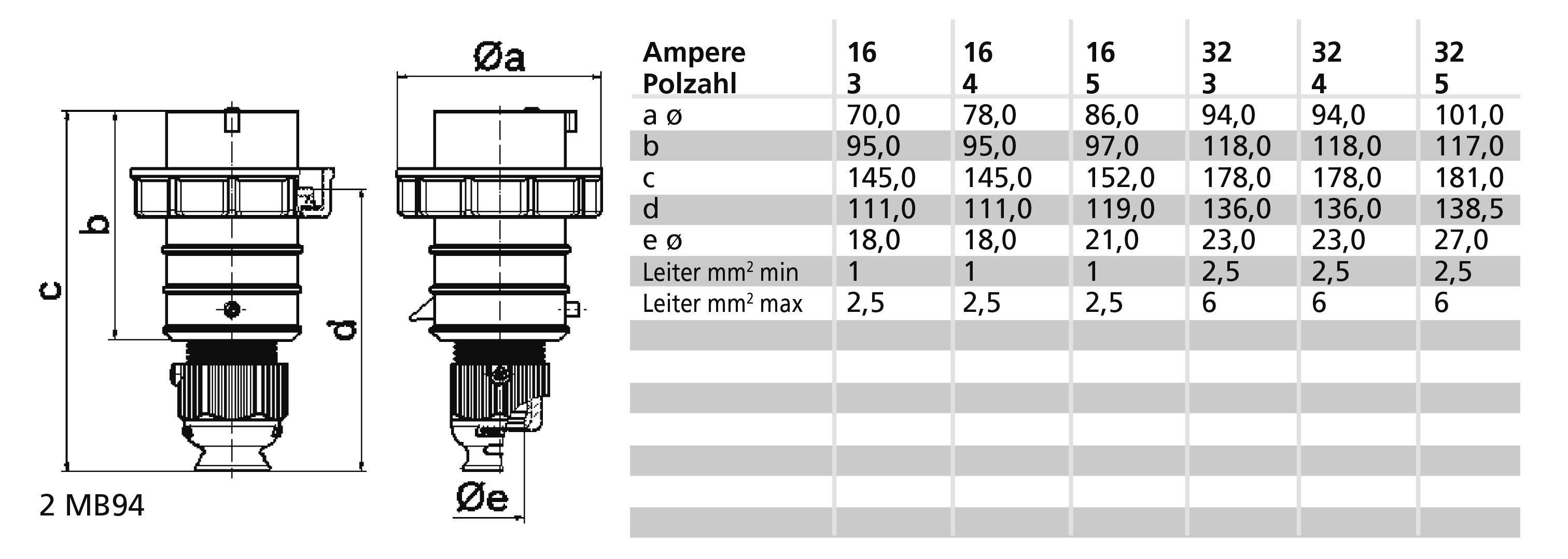

Device height: 147 mm, device width: 71 mm, device depth: 71 mm
Other technical features: For cables with a min. Diameter from 8 mm to max. Diameter 18 mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
16A 3P (2P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Collar black RAL 9005, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing cover black RAL 9005
Device height: 147 mm, device width: 71 mm, device depth: 71 mm
Other technical features: For cables with a min. Diameter from 8 mm to max. Diameter 18 mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
