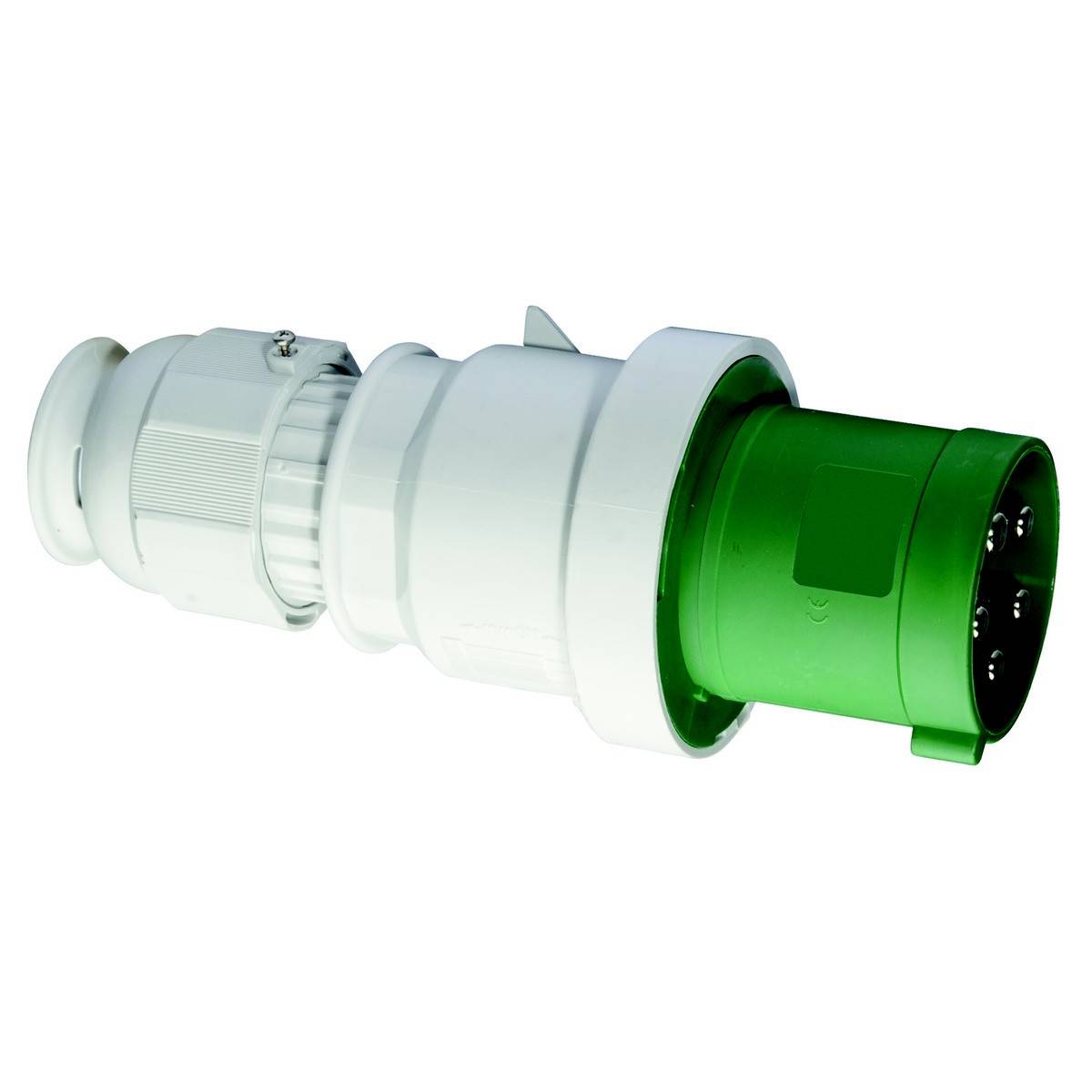

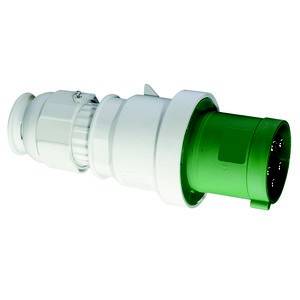

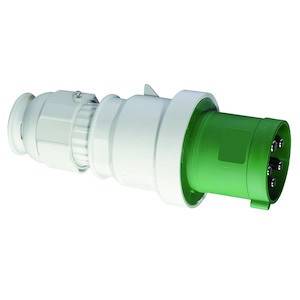

Bals Elektrotechnik 21663 21663 CEE plug 63.0 A 5-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 50-500 V (100-300 Hz) green
- Time setting 10 h
- Colour code: Green
- RAL number: 6002
- Phase inverter: No.
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
500 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
Screw terminals
- Type
straight
IP44
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146401 Bals Elektrotechnik 21663 21663 CEE plug 63.0 A 5-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146401 Bals Elektrotechnik 21663 21663 CEE plug 63.0 A 5-pin 500 V 1 pc(s)
User & Safety Instructions 3146401 Bals Elektrotechnik 21663 21663 CEE plug 63.0 A 5-pin 500 V 1 pc(s)
Description
TE plug
63A 5p (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: With cable gland
Colour: Control slide gray RAL 7035, housing cover gray RAL 7035, cable gland gray RAL 7035, collar green RAL 6002
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
63A 5p (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: With cable gland
Colour: Control slide gray RAL 7035, housing cover gray RAL 7035, cable gland gray RAL 7035, collar green RAL 6002
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
