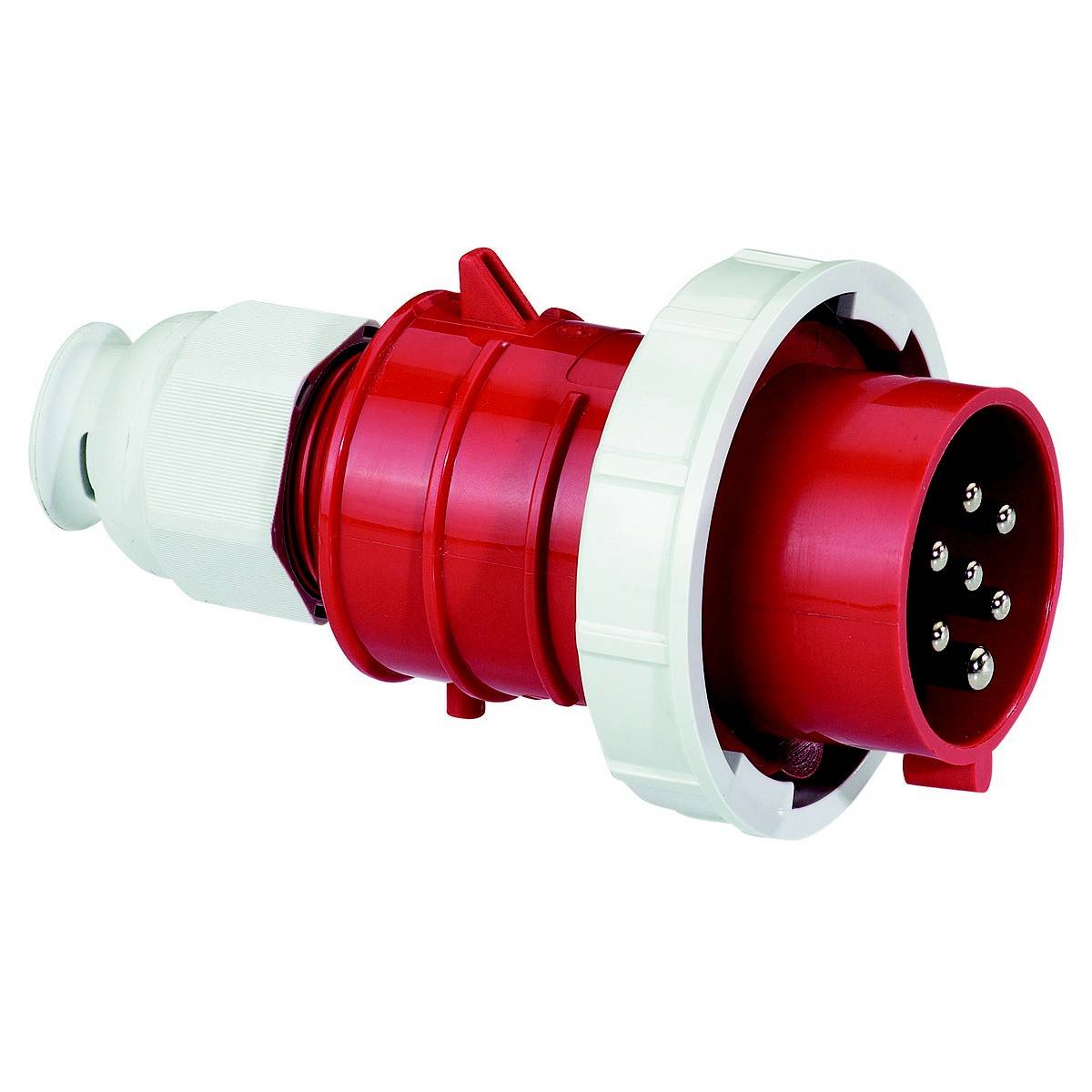

Bals Elektrotechnik 21667 21667 CEE plug 16.0 A 7-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 7
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Phase inverter: No.
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
straight
IP67
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
7
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
400 V
3000
Gland nut
7
Plastic
Nickel-plated
16 A
Screwed terminal
Straight
CuZn
IP67
FALSE
6 h
Red
400 V (50+60 Hz) red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146361 Bals Elektrotechnik 21667 21667 CEE plug 16.0 A 7-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146361 Bals Elektrotechnik 21667 21667 CEE plug 16.0 A 7-pin 400 V 1 pc(s)
Description
TE plug
16A 7P (6P+PE) 400V (400V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Red housing RAL 3000, red collar RAL 3000, bayonet ring gray RAL 7035, gray cable gland RAL 7035

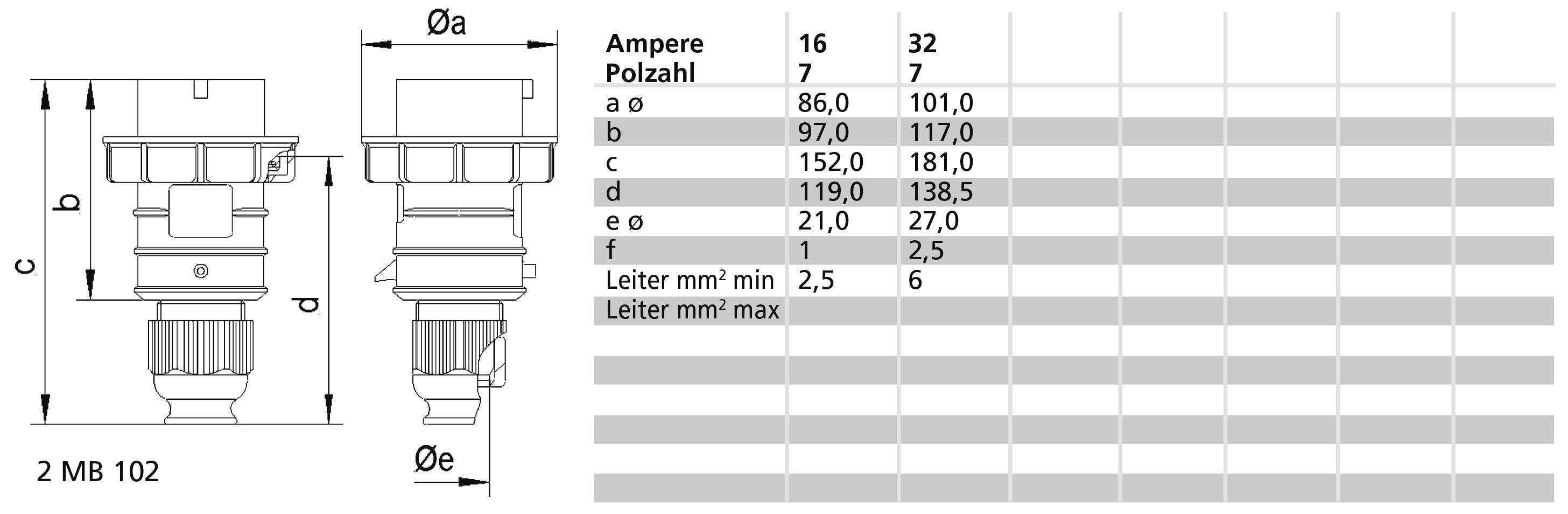

Device height: 154 mm, device width: 87 mm, device depth: 87 mm
Other technical features: For cables with a min. Diameter from 10mm to max. Diameter 21 mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
16A 7P (6P+PE) 400V (400V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Red housing RAL 3000, red collar RAL 3000, bayonet ring gray RAL 7035, gray cable gland RAL 7035
Device height: 154 mm, device width: 87 mm, device depth: 87 mm
Other technical features: For cables with a min. Diameter from 10mm to max. Diameter 21 mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
