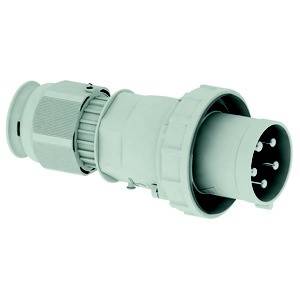

Bals Elektrotechnik 21966 21966 CEE plug 125.0 A 5-pin 50 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 125 A.
- Number of pins: 5
- Voltage according to EN 60309-2: >50 V gray
- Time setting 1 h
- Colour code: Grey
- RAL number: 7035
- Phase inverter: No.
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
50 V
- Nominal current
125.0 A
- Nominal current - rounded value
125 A
- Type A
Screw terminals
- Type B
CEE plug
- Type
straight
IP67
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
50 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3146637 Bals Elektrotechnik 21966 21966 CEE plug 125.0 A 5-pin 50 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146637 Bals Elektrotechnik 21966 21966 CEE plug 125.0 A 5-pin 50 V 1 pc(s)
Description
TE plug
125A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1H IP67
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 50.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: With cable gland
Colour: Grey RAL 7035 activation slider, bayonet ring gray RAL 7035, gray housing cover RAL 7035, gray cable gland RAL 7035, gray collar RAL 7035
Device height: 273 mm, device width: 126 mm, device depth: 126 mm
Other technical features: For cables with a min. Diameter from 26mm to max. Diameter 50mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
125A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1H IP67
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 50.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: With cable gland
Colour: Grey RAL 7035 activation slider, bayonet ring gray RAL 7035, gray housing cover RAL 7035, gray cable gland RAL 7035, gray collar RAL 7035
Device height: 273 mm, device width: 126 mm, device depth: 126 mm
Other technical features: For cables with a min. Diameter from 26mm to max. Diameter 50mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
