Bals Elektrotechnik 227 227 CEE phase inverter 32.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Phase inverter: Yes
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE phase inverter
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type B
CEE plug
- Type
straight
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
400 V
- Weight
0.3234 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3147049 Bals Elektrotechnik 227 227 CEE phase inverter 32.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147049 Bals Elektrotechnik 227 227 CEE phase inverter 32.0 A 5-pin 400 V 1 pc(s)
Description

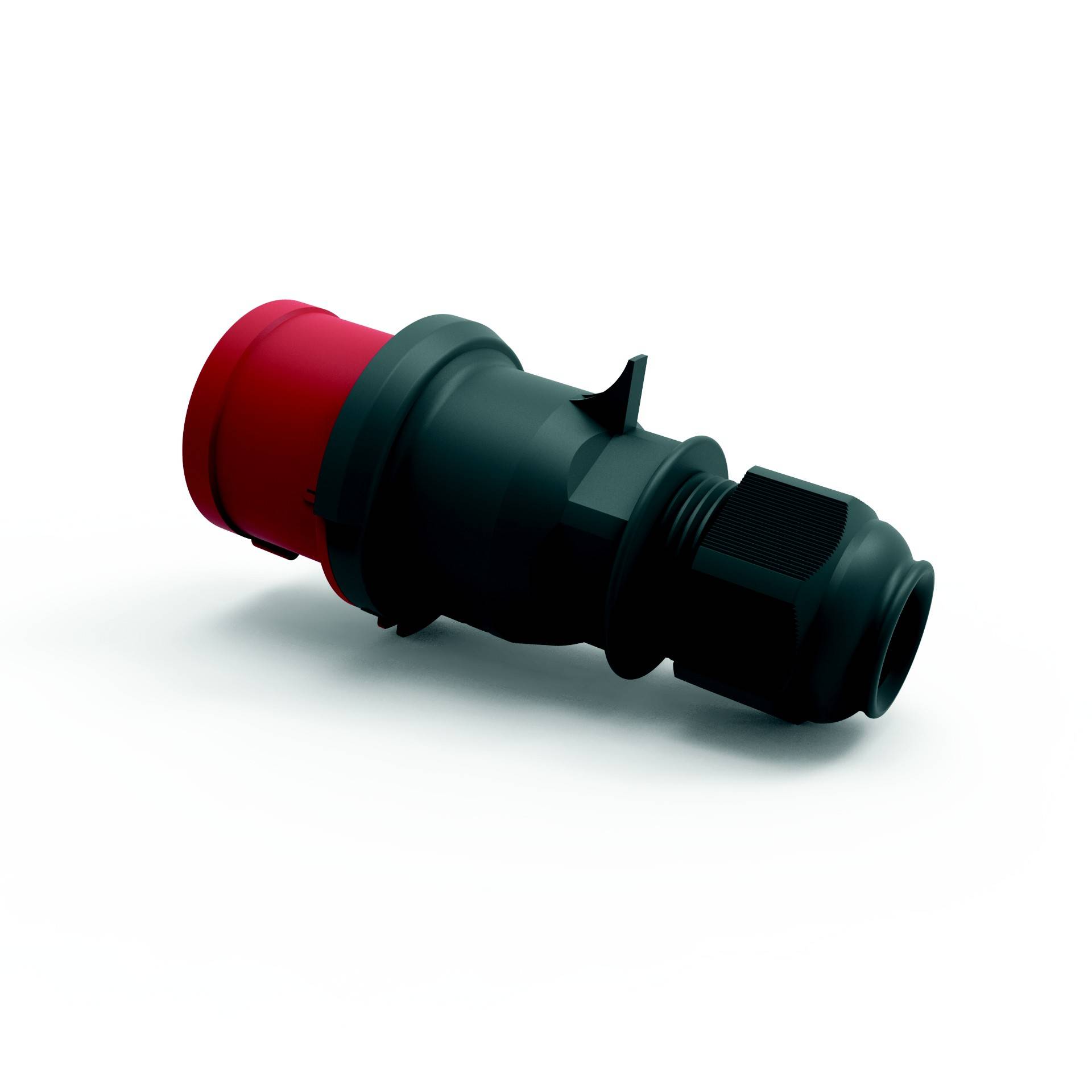

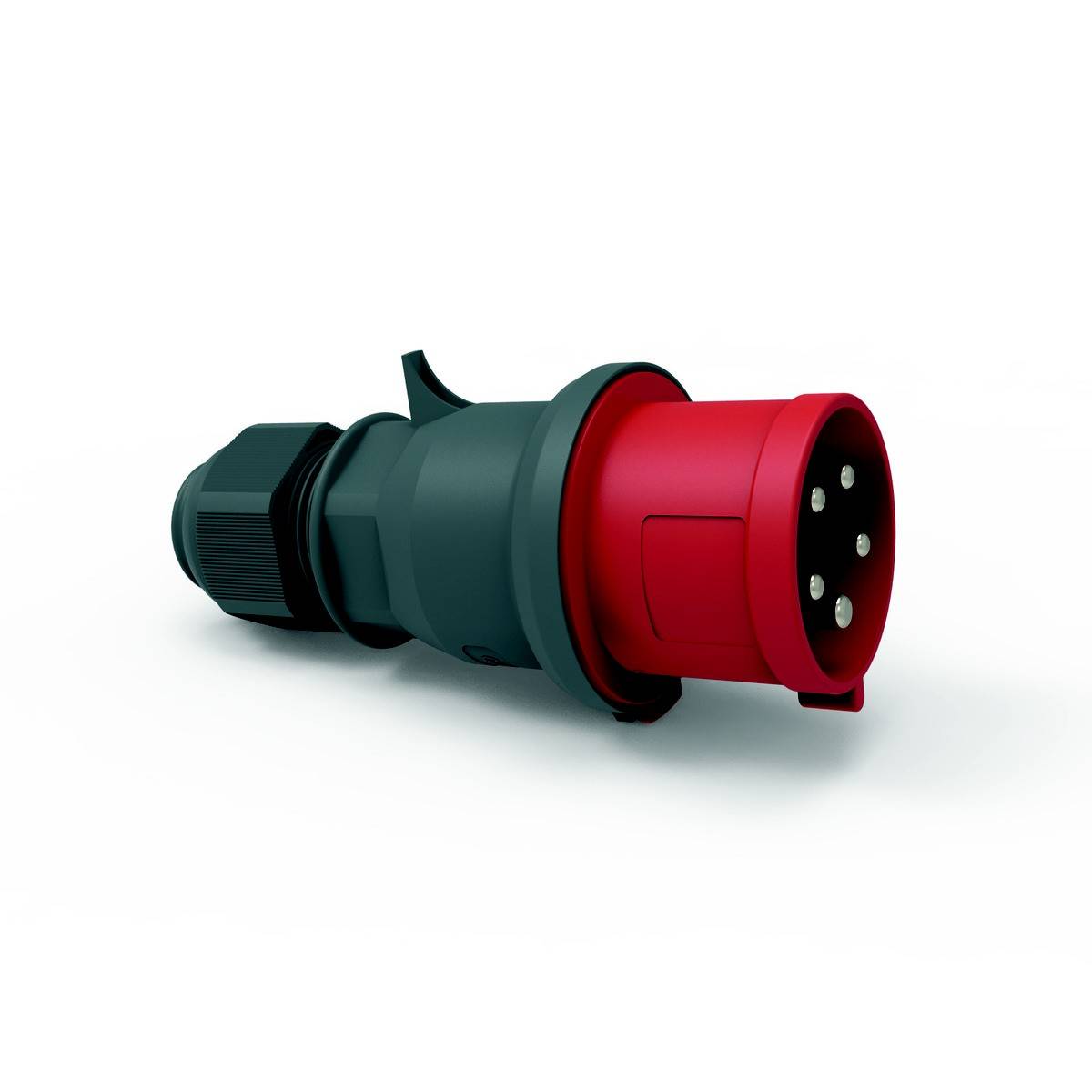

Phase inverter QUICK-Connect with MULTI-grip screw connection
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with socket spring clamps
Cable entry: With cable gland
Colour: Red collar RAL 3000, dark gray cable gland RAL 7012, dark gray housing cover RAL 7012

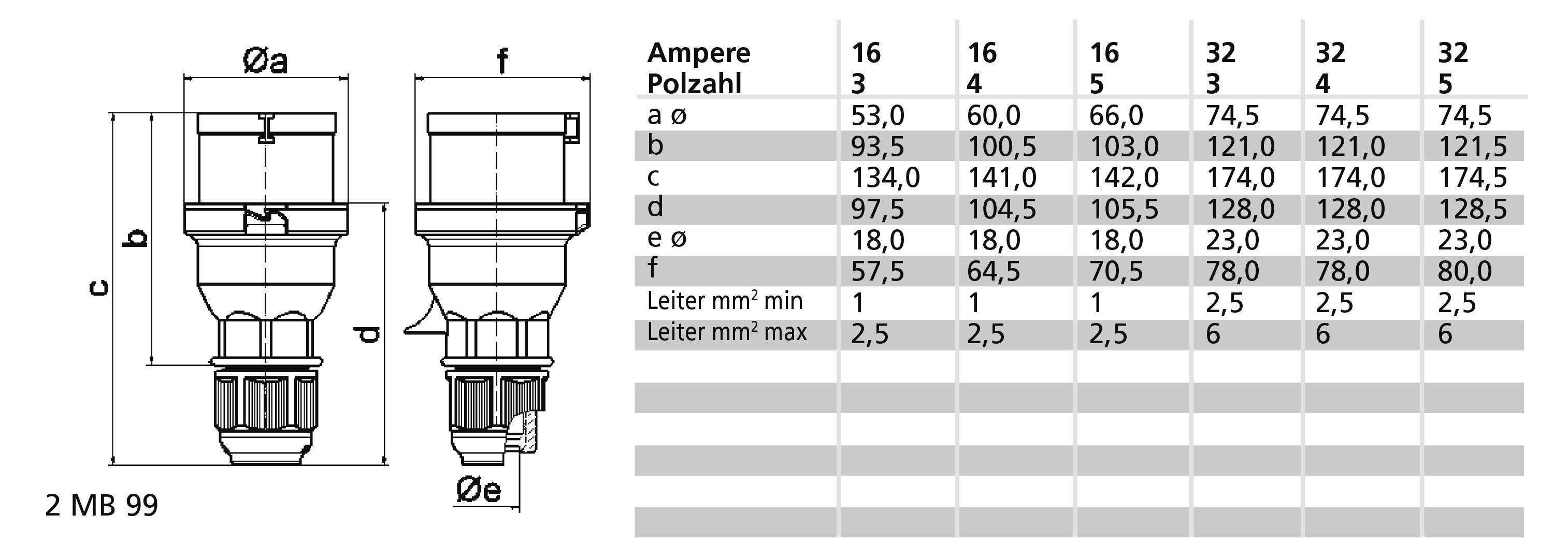

Device height: 178 mm, device width: 79 mm, device depth: 88 mm
Other technical features: With MULTI-Grip cable gland and integrated strain relief, the connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with socket spring clamps
Cable entry: With cable gland
Colour: Red collar RAL 3000, dark gray cable gland RAL 7012, dark gray housing cover RAL 7012
Device height: 178 mm, device width: 79 mm, device depth: 88 mm
Other technical features: With MULTI-Grip cable gland and integrated strain relief, the connection of housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
