Bals Elektrotechnik 24210 24210 CEE phase inverter 32.0 A 5-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Number of pins: 5
- Time setting 9 h
- Colour code: Blue
- RAL number: 5015
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Design: Other
- Phase inverter: Yes
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE phase inverter
- Nominal voltage
230 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screw terminals
- Type
Angled
IP44
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145029 Bals Elektrotechnik 24210 24210 CEE phase inverter 32.0 A 5-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3145029 Bals Elektrotechnik 24210 24210 CEE phase inverter 32.0 A 5-pin 230 V 1 pc(s)
Description

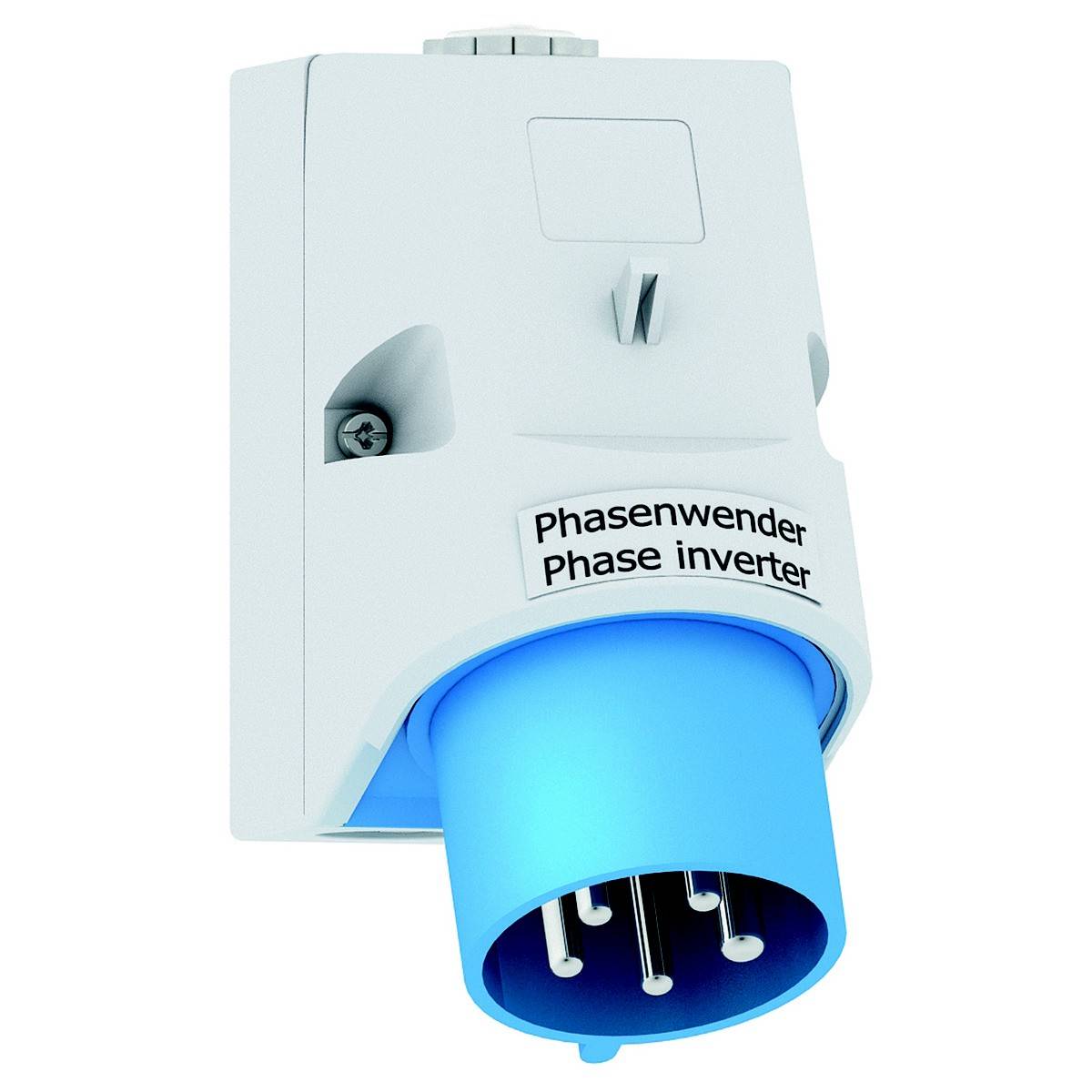

Phase inverter TE as wall-mounted device plug
32A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015

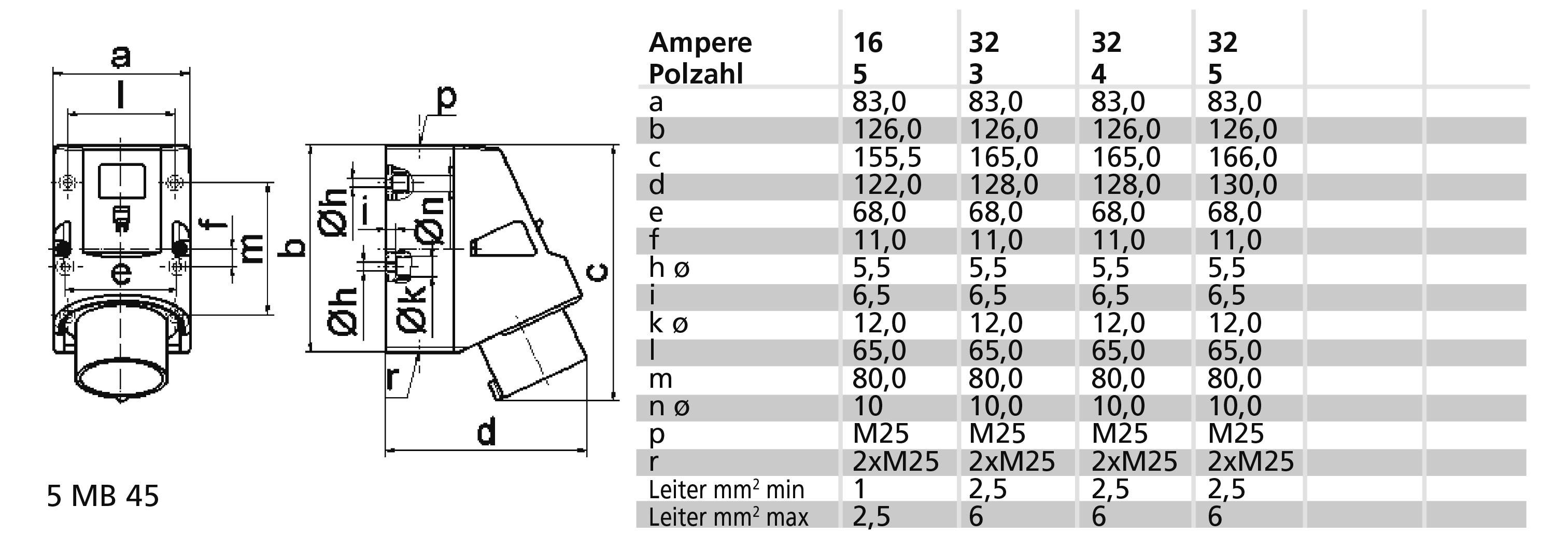

Casing size: 126x83 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Collar blue RAL 5015, lower section gray RAL 7035, upper section of housing gray RAL 7035
Device height: 166 mm, device width: 83 mm, device depth: 130 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°, and the bottom of the housing contains 4 fixing holes for breaking off
This text is machine translated.
32A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Casing size: 126x83 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Collar blue RAL 5015, lower section gray RAL 7035, upper section of housing gray RAL 7035
Device height: 166 mm, device width: 83 mm, device depth: 130 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°, and the bottom of the housing contains 4 fixing holes for breaking off
This text is machine translated.
