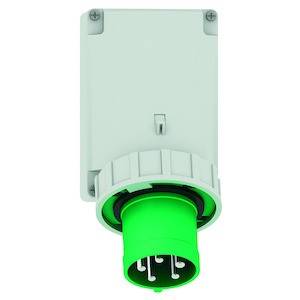

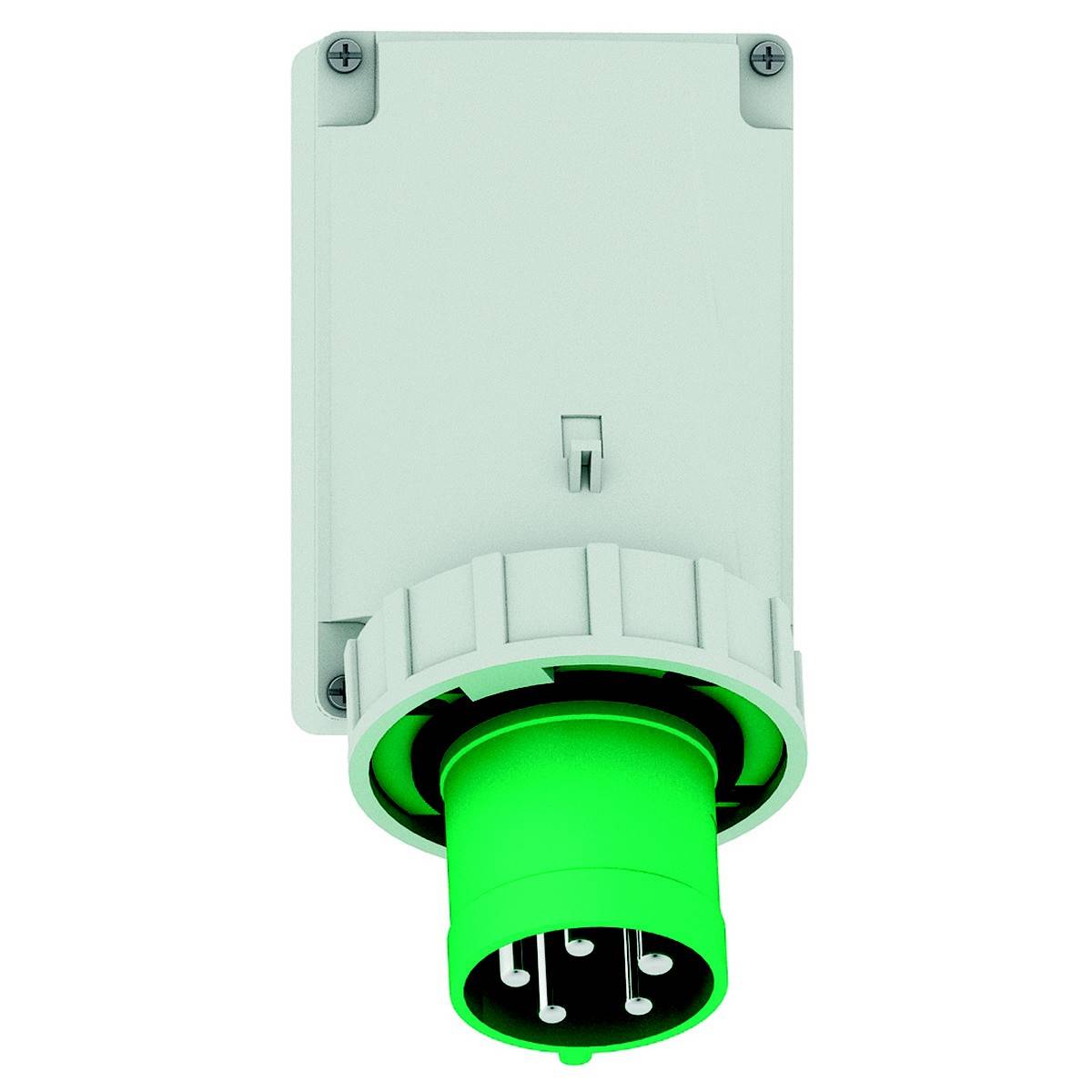

Bals Elektrotechnik 24320 24320 CEE add-on plug 63.0 A 5-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- Voltage according to EN 60309-2: 50-500 V (100-300 Hz) green
- Number of pins: 5
- Time setting 10 h
- Colour code: Green
- RAL number: 6002
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Design: Other
- Phase inverter: No.
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE add-on plug
- Nominal voltage
500 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
Screw terminals
- Type
Angled
IP67
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145106 Bals Elektrotechnik 24320 24320 CEE add-on plug 63.0 A 5-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3145106 Bals Elektrotechnik 24320 24320 CEE add-on plug 63.0 A 5-pin 500 V 1 pc(s)
Description
Wall-mounted connector
63A 5p (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP67
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Polycarbonate housing material
Connection technology: With screw terminal
Cable entry: 1xM40 top, 2xM32 bottom
Colour: Bayonet ring, gray RAL 7035, lower section, gray RAL 7035, housing part gray RAL 7035, green collar RAL 6002

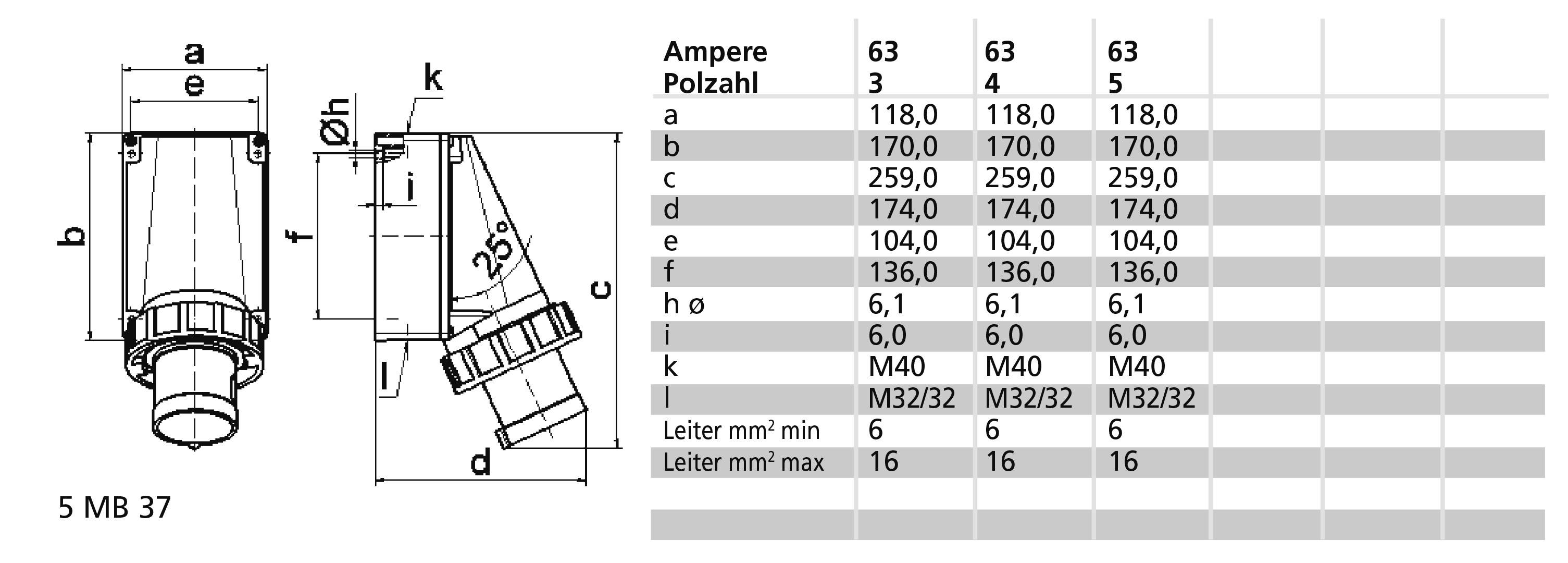

Device height: 259 mm, device width: 118 mm, device depth: 174 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
This text is machine translated.
