Bals Elektrotechnik 24335 24335 CEE add-on plug 32.0 A 3-pin 110 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Number of poles: 3
- Time setting 4 h
- Colour code: Yellow
- RAL number: 1012
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Design: Other
- Phase inverter: No.
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Product type
CEE add-on plug
- Nominal voltage
110 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screw terminals
- Type
Angled
IP44
- Factory colour
Yellow
- Content
1 pc(s)
- Number of pins
3
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
110 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135041 Bals Elektrotechnik 24335 24335 CEE add-on plug 32.0 A 3-pin 110 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135041 Bals Elektrotechnik 24335 24335 CEE add-on plug 32.0 A 3-pin 110 V 1 pc(s)
Description

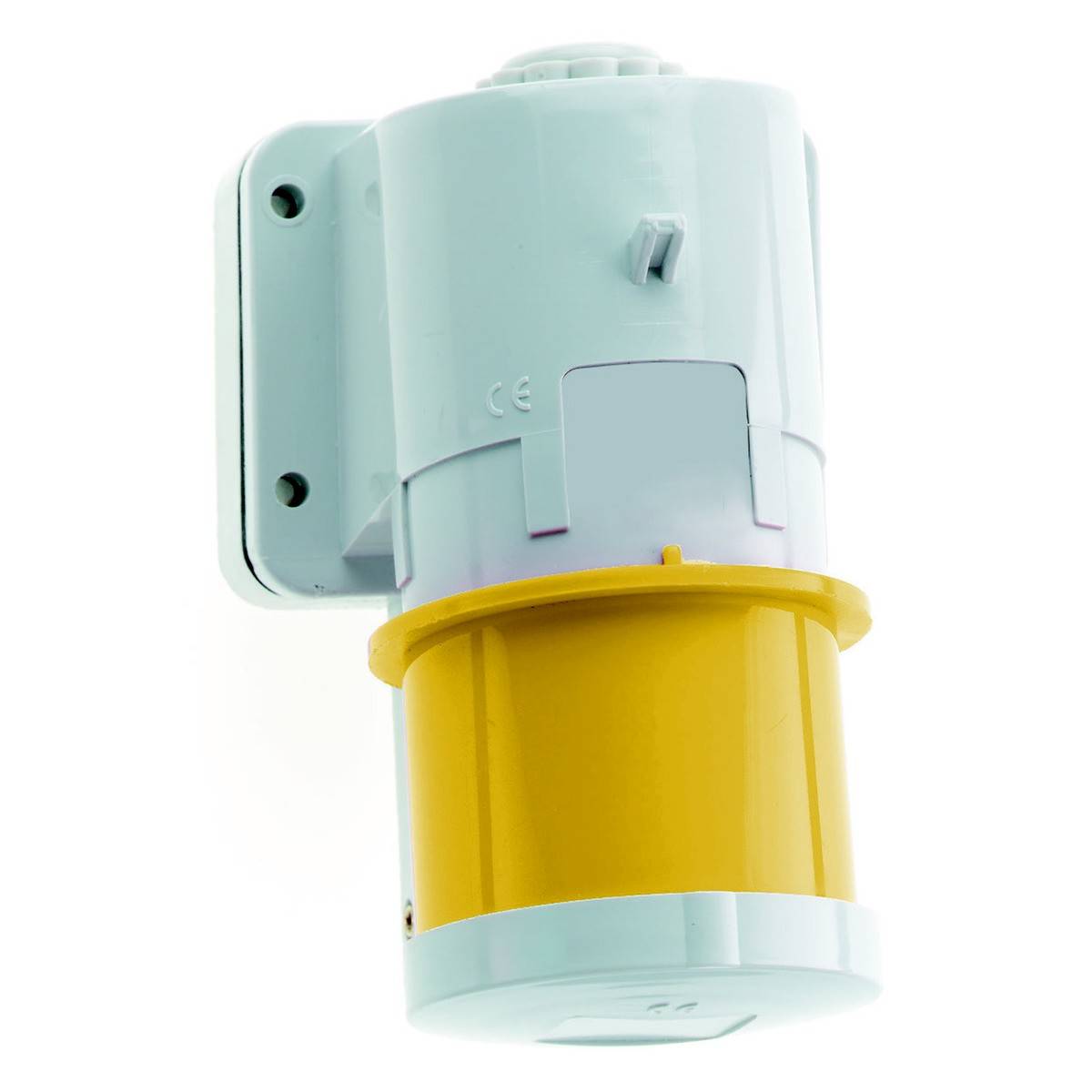

Wall-mounted connector
32A 3P (2P+PE) 110V (100 - 130V~) 4H IP44
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Housing size: 75x90 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Yellow collar RAL 1012, hinged lid gray RAL 7035, lower section gray RAL 7035, upper section of housing gray RAL 7035

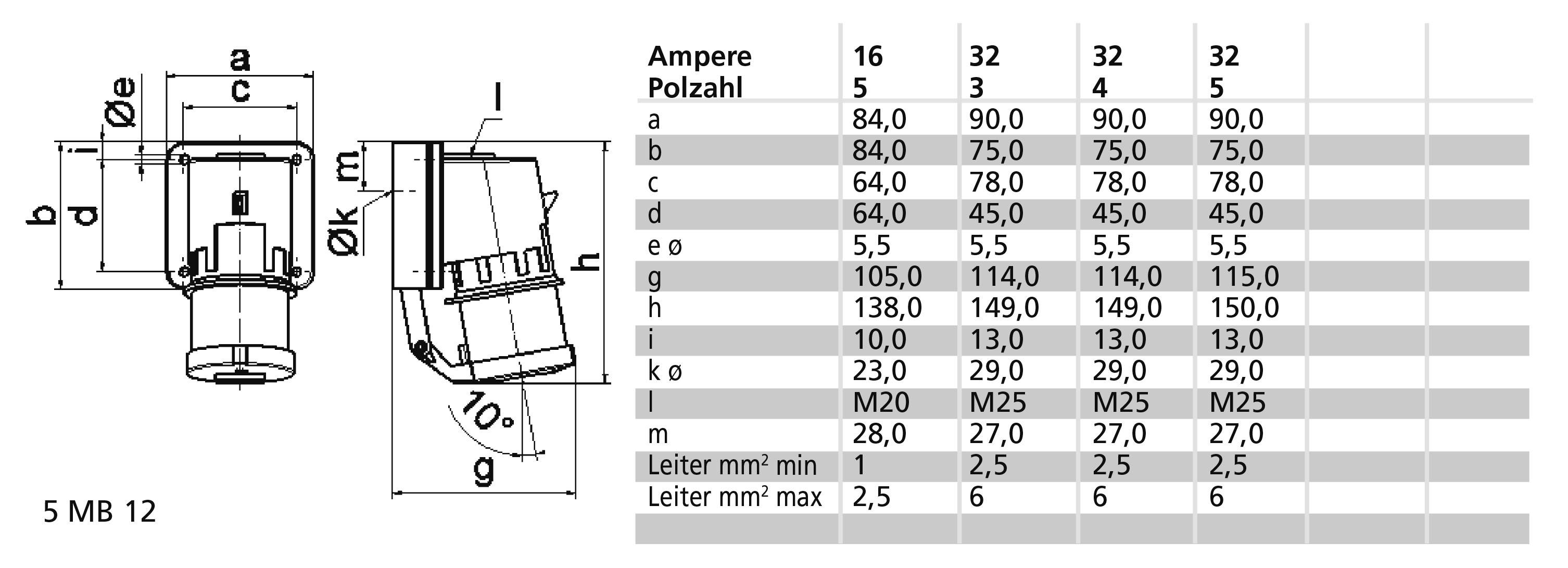

Device height: 147 mm, device width: 90 mm, device depth: 117 mm
Other technical characteristics: The cable entry is open at the top and closed at one time, the hinged lid is self-closing
This text is machine translated.
32A 3P (2P+PE) 110V (100 - 130V~) 4H IP44
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Housing size: 75x90 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Yellow collar RAL 1012, hinged lid gray RAL 7035, lower section gray RAL 7035, upper section of housing gray RAL 7035
Device height: 147 mm, device width: 90 mm, device depth: 117 mm
Other technical characteristics: The cable entry is open at the top and closed at one time, the hinged lid is self-closing
This text is machine translated.
