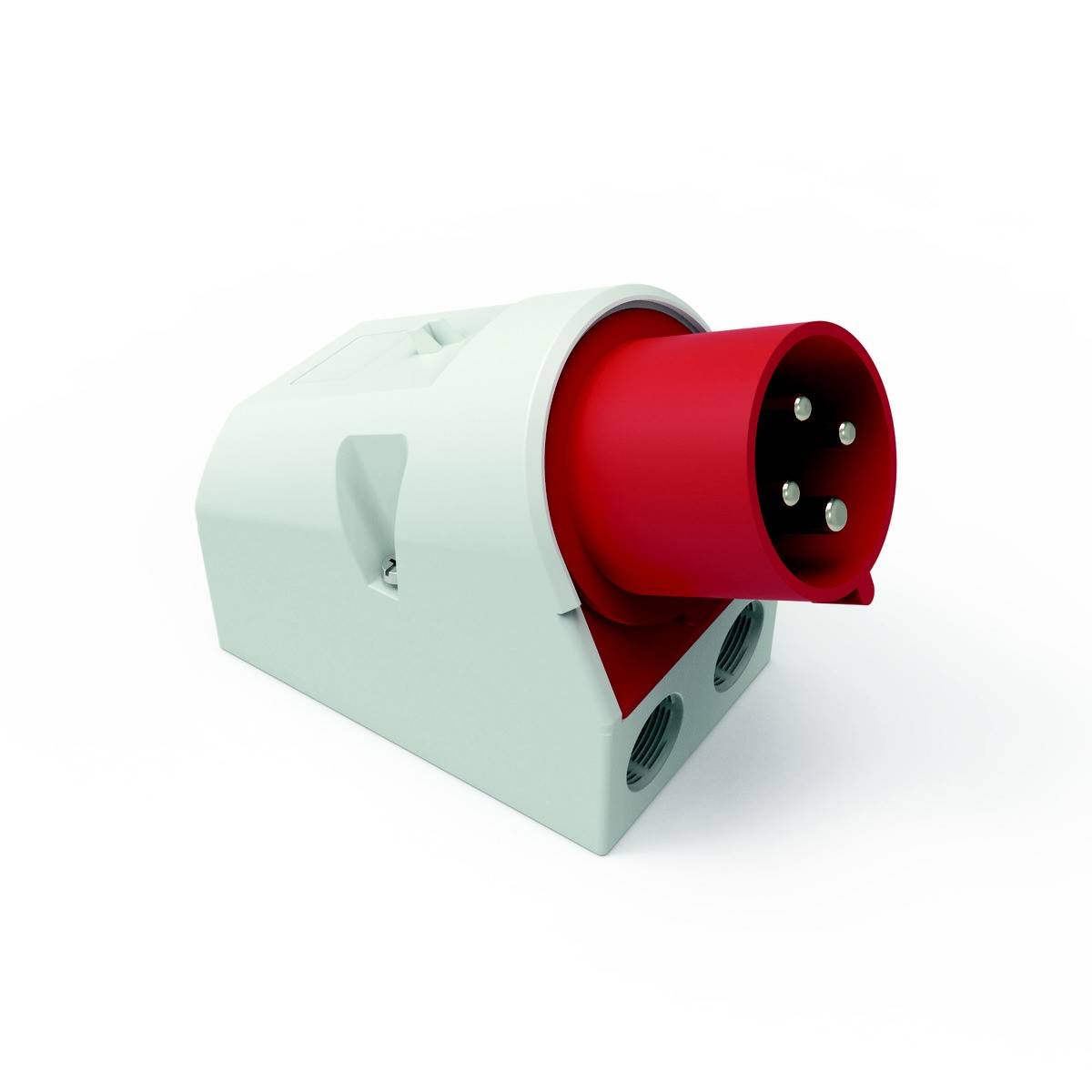

Bals Elektrotechnik 24411 24411 CEE add-on plug 32.0 A 4-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Number of pins: 4
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Design: Other
- Phase inverter: No.
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE add-on plug
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
Angled
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
4
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3144980 Bals Elektrotechnik 24411 24411 CEE add-on plug 32.0 A 4-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3144980 Bals Elektrotechnik 24411 24411 CEE add-on plug 32.0 A 4-pin 400 V 1 pc(s)
Description
WALL DEVICE PLUG QUICK-CONNECT TE
32A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Casing size: 126x83 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: 1xM25 top, 2xM25 below
Colour: Collar red RAL 3000, lower section gray RAL 7035, upper section of housing gray RAL 7035

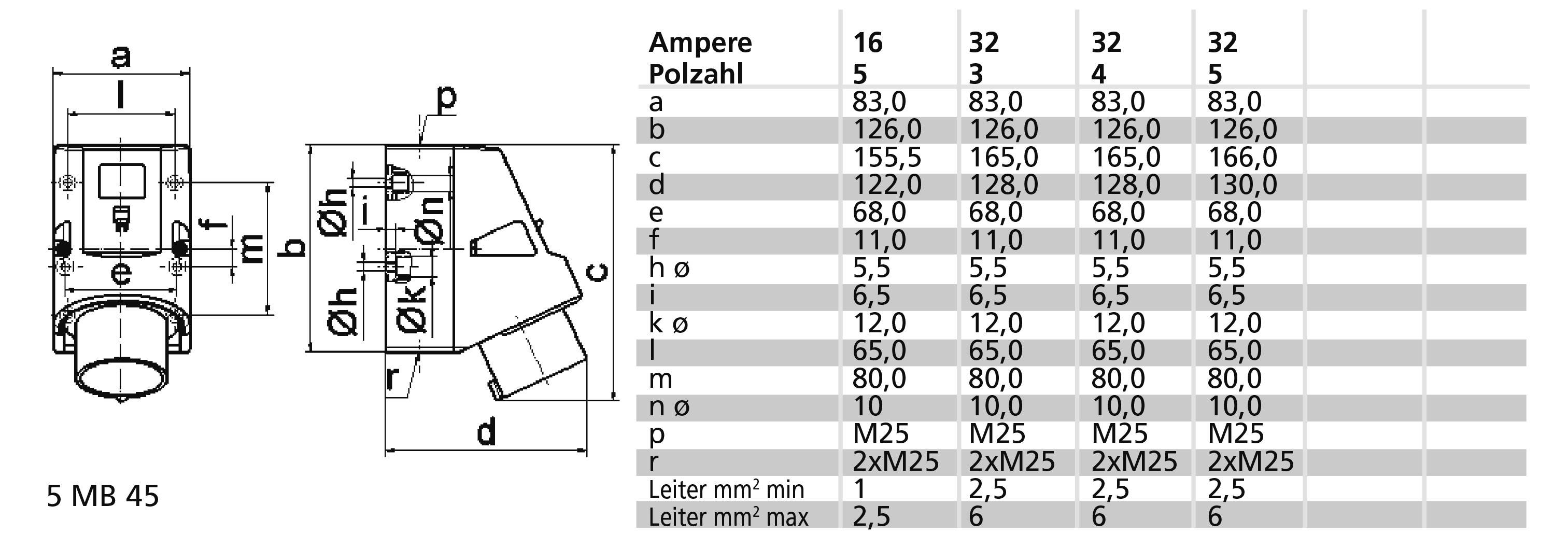

Device height: 166 mm, device width: 83 mm, device depth: 128 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°, and the bottom of the housing contains 4 fixing holes for breaking off
This text is machine translated.
32A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Casing size: 126x83 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: 1xM25 top, 2xM25 below
Colour: Collar red RAL 3000, lower section gray RAL 7035, upper section of housing gray RAL 7035
Device height: 166 mm, device width: 83 mm, device depth: 128 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°, and the bottom of the housing contains 4 fixing holes for breaking off
This text is machine translated.
