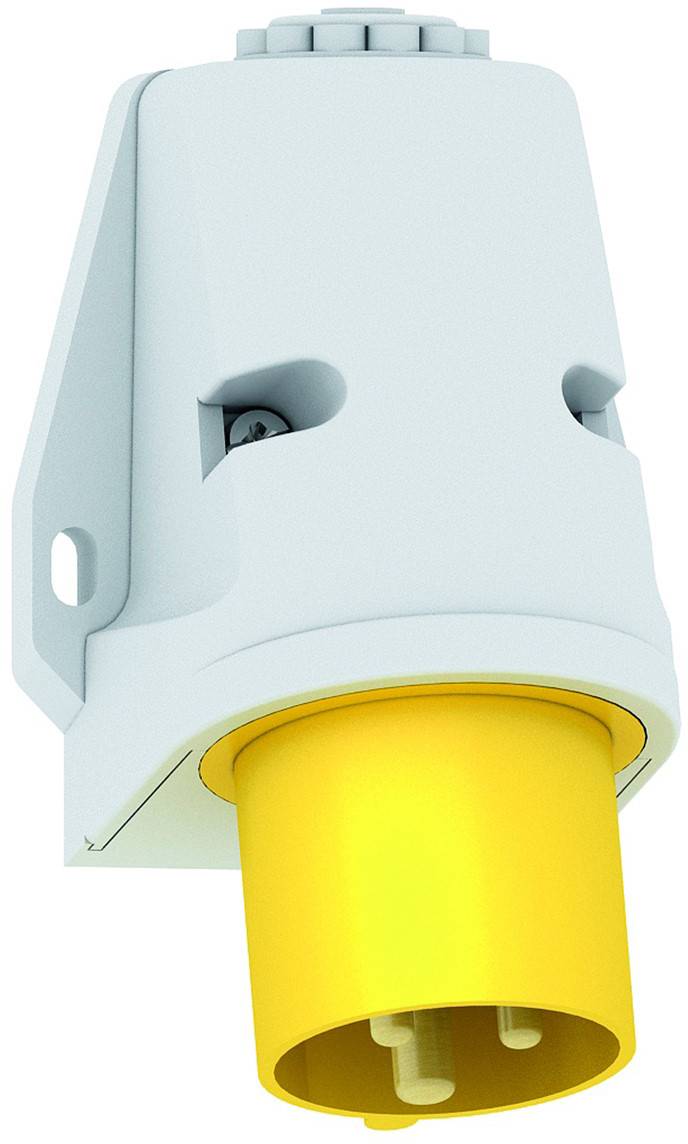

Bals Elektrotechnik 24422 24422 CEE wall plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 1012
- Protection type (IP) IP44
- Design: Other
- IEC current 16 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Phase inverter: No.
- Mating direction: Angled
- Product type
CEE wall plug
- Features
Screwless terminals
- Cores
3
- Factory colour
RAL 1012 (Lemon Yellow)
- Dim
(L x W x H) 72 x 72 x 121 mm
- Length
72 mm
- Width
72 mm
- Height
121 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544477 Bals Elektrotechnik 24422 24422 CEE wall plug 1 pc(s)
Description
Wall device plug Quick-Connect
16A 3P (2P+PE) 110V (100 - 130V~) 4H IP44
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
90x72 mm (HxB) case size
Contact holder/contacts: The contacts are bare brass, the contact carrier is made of polyamide
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry 1xM20 at the top
Colour: Lower part gray RAL 7035, yellow collar RAL 1012, upper part of housing gray RAL 7035
Device height: 121 mm, device width: 72 mm, device depth: 72 mm
Other technical characteristics: The cable entry is open at the top once and is closed at one time in the floor
This text is machine translated.
16A 3P (2P+PE) 110V (100 - 130V~) 4H IP44
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
90x72 mm (HxB) case size
Contact holder/contacts: The contacts are bare brass, the contact carrier is made of polyamide
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry 1xM20 at the top
Colour: Lower part gray RAL 7035, yellow collar RAL 1012, upper part of housing gray RAL 7035
Device height: 121 mm, device width: 72 mm, device depth: 72 mm
Other technical characteristics: The cable entry is open at the top once and is closed at one time in the floor
This text is machine translated.
