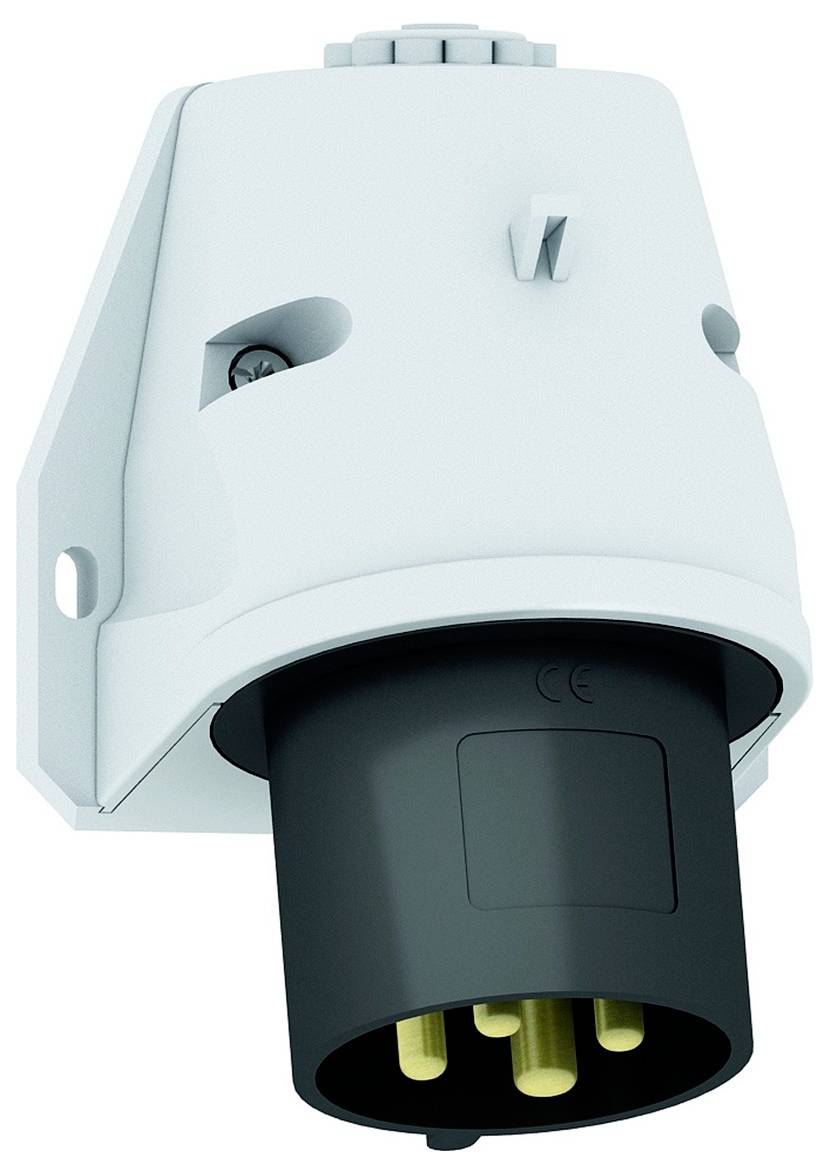

Image similar
Bals Elektrotechnik 24540 24540 CEE wall plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 9005
- Protection type (IP) IP44
- Design: Other
- IEC current 32 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Phase inverter: No.
- Mating direction: Angled
- Product type
CEE wall plug
- Features
Screwless terminals
- Dim
(L x W x H) 87 x 94 x 133 mm
- Length
87 mm
- Width
94 mm
- Height
133 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546024 Bals Elektrotechnik 24540 24540 CEE wall plug 1 pc(s)
Description
Wall device plug Quick-Connect
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 92x94 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: 1xM25 at the top
Colour: Housing base gray RAL 7035, collar black RAL 9005, housing top gray RAL 7035
Device height: 133 mm, device width: 94 mm, device depth: 87 mm
Other technical characteristics: The cable entry is open at the top once and is closed at one time in the floor
This text is machine translated.
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 92x94 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: 1xM25 at the top
Colour: Housing base gray RAL 7035, collar black RAL 9005, housing top gray RAL 7035
Device height: 133 mm, device width: 94 mm, device depth: 87 mm
Other technical characteristics: The cable entry is open at the top once and is closed at one time in the floor
This text is machine translated.
