Bals Elektrotechnik 2473 2473 CEE add-on plug 16.0 A 3-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Number of poles: 3
- Time setting 6 h
- Colour code: Blue
- RAL number: 5015
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Design: Other
- Phase inverter: No.
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE add-on plug
- Nominal voltage
230 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
Angled
IP67
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
3
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
230 V
5015
Other
3
Plastic
Nickel-plated
16 A
Screwed terminal
Angled
CuZn
IP67
FALSE
6 h
Blue
230 V (50+60 Hz) blue
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146992 Bals Elektrotechnik 2473 2473 CEE add-on plug 16.0 A 3-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146992 Bals Elektrotechnik 2473 2473 CEE add-on plug 16.0 A 3-pin 230 V 1 pc(s)
Description

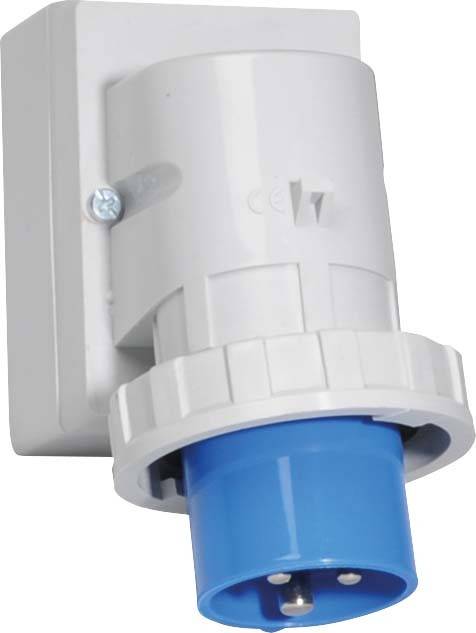

Wall-mounted connector
16A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size: 87x64 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry 1xM20 at the top
Colour: Collar blue RAL 5015, bayonet ring gray RAL 7035, lower section gray RAL 7035, housing top gray RAL 7035
Device height: 128 mm, device width: 70 mm, device depth: 111 mm
Other technical characteristics: The cable entry is open once, closed once at the bottom and once at the rear
This text is machine translated.
16A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size: 87x64 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry 1xM20 at the top
Colour: Collar blue RAL 5015, bayonet ring gray RAL 7035, lower section gray RAL 7035, housing top gray RAL 7035
Device height: 128 mm, device width: 70 mm, device depth: 111 mm
Other technical characteristics: The cable entry is open once, closed once at the bottom and once at the rear
This text is machine translated.
