Bals Elektrotechnik 26009 26009 CEE phase inverter 16.0 A 5-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Number of pins: 5
- Time setting 9 h
- Colour code: Blue
- RAL number: 5015
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Design: Mounting appliance plug
- Phase inverter: Yes
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE phase inverter
- Nominal voltage
230 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
Angled
IP67
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
230 V
5015
Surface mounted plug
5
Plastic
Nickel-plated
16 A
Screwed terminal
Angled
CuZn
IP67
FALSE
9 h
Blue
230 V (50+60 Hz) blue
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3144981 Bals Elektrotechnik 26009 26009 CEE phase inverter 16.0 A 5-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3144981 Bals Elektrotechnik 26009 26009 CEE phase inverter 16.0 A 5-pin 230 V 1 pc(s)
Description
Phase inverter as a surface-mounted device plug
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Collar blue RAL 5015, bayonet ring gray RAL 7035, housing gray RAL 7035

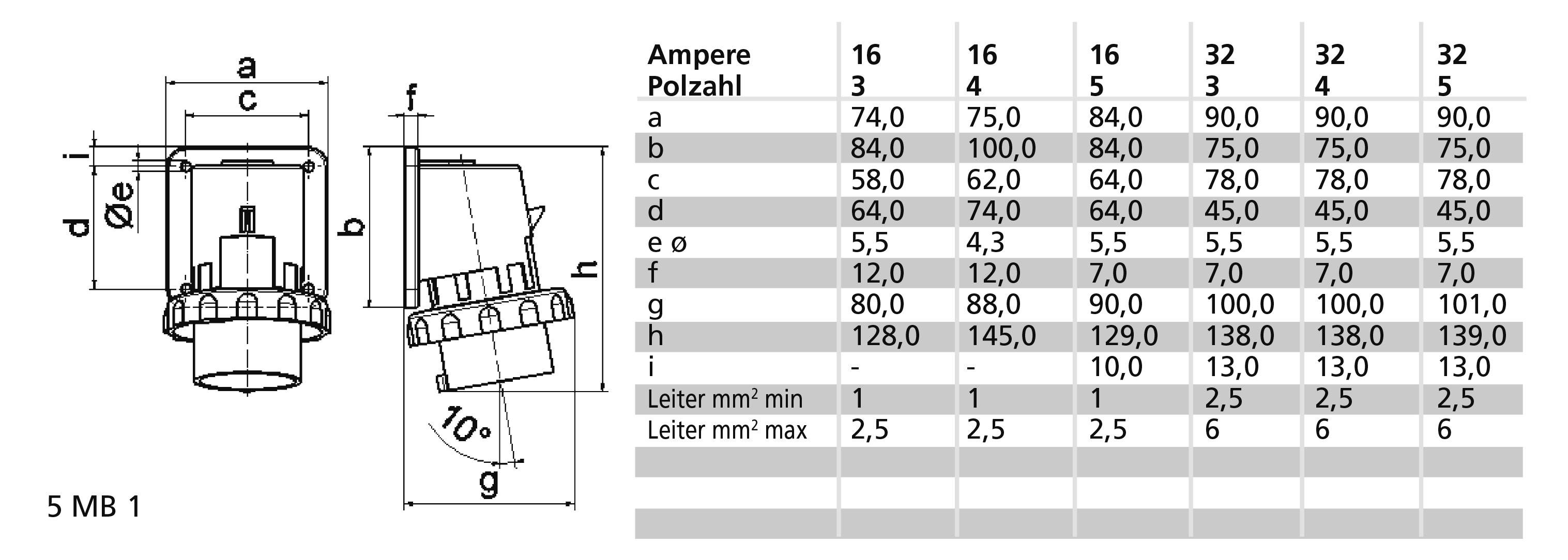

Device height: 129 mm, device width: 88 mm, device depth: 89 mm
Flange size vertical 84 mm, flange dimension horizontal 84 mm
Vertical hole spacing 64 mm, horizontal hole spacing 64 mm
This text is machine translated.
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Collar blue RAL 5015, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 129 mm, device width: 88 mm, device depth: 89 mm
Flange size vertical 84 mm, flange dimension horizontal 84 mm
Vertical hole spacing 64 mm, horizontal hole spacing 64 mm
This text is machine translated.
