Bals Elektrotechnik 2618 2618 CEE add-on plug 16.0 A 4-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Number of pins: 4
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Design: Mounting appliance plug
- Phase inverter: No.
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE add-on plug
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
Angled
IP67
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
4
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
400 V
3000
Surface mounted plug
4
Plastic
Nickel-plated
16 A
Screwed terminal
Angled
CuZn
IP67
FALSE
6 h
Red
400 V (50+60 Hz) red
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3146960 Bals Elektrotechnik 2618 2618 CEE add-on plug 16.0 A 4-pin 400 V 1 pc(s)
Description
Mounted device plug
16A 4P (3P+PE) 400V (380 - 415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Collar red RAL 3000, bayonet ring gray RAL 7035, housing gray RAL 7035

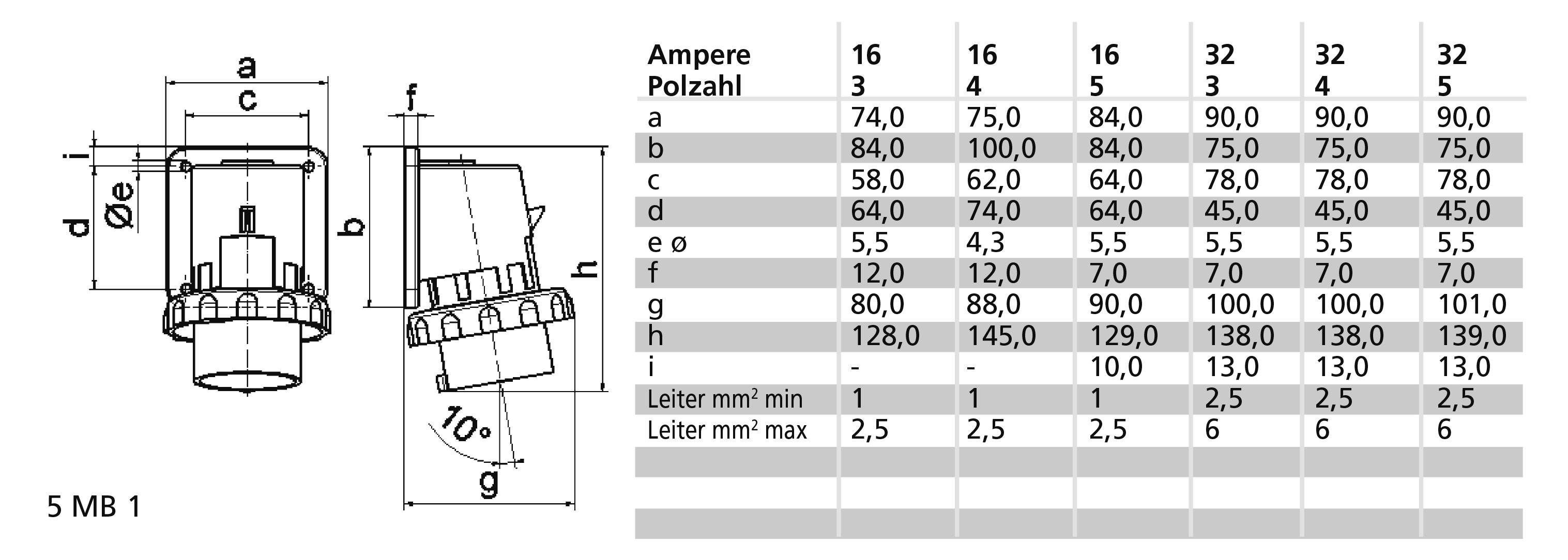

Device height: 145 mm, device width: 79 mm, device depth: 88 mm
Flange size vertical 100 mm, flange dimension horizontal 75 mm
Vertical hole spacing 74 mm, horizontal hole spacing 62 mm
This text is machine translated.
16A 4P (3P+PE) 400V (380 - 415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Collar red RAL 3000, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 145 mm, device width: 79 mm, device depth: 88 mm
Flange size vertical 100 mm, flange dimension horizontal 75 mm
Vertical hole spacing 74 mm, horizontal hole spacing 62 mm
This text is machine translated.
