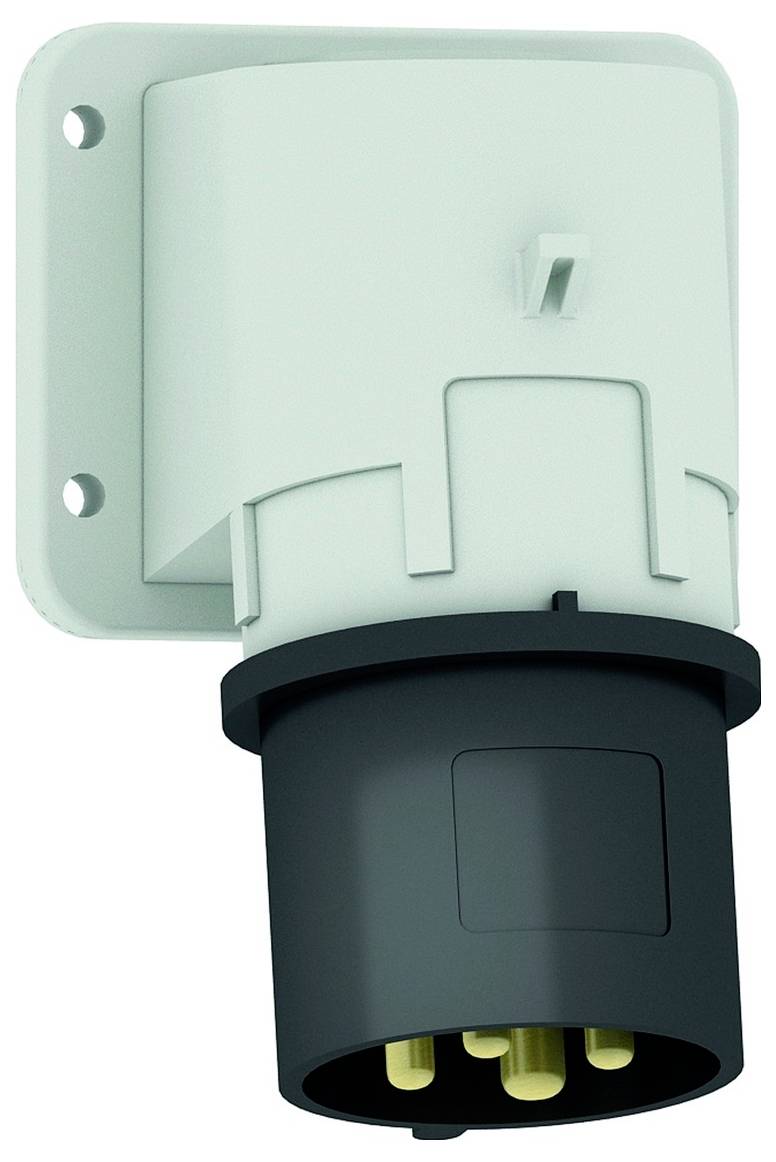

Bals Elektrotechnik 2664 2664 CEE add-on plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 9005
- Protection type (IP) IP44
- Design: Mounting appliance plug
- IEC current 32 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Phase inverter: No.
- Mating direction: Angled
- Product type
CEE add-on plug
- Cores
4
- Dim
(L x W x H) 86 x 90 x 139 mm
- Length
86 mm
- Width
90 mm
- Height
139 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546549 Bals Elektrotechnik 2664 2664 CEE add-on plug 1 pc(s)
Description
Mounted device plug
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Grey RAL 7035 housing, black collar RAL 9005
Device height: 139 mm, device width: 90 mm, device depth: 86 mm
Flange size vertical 75 mm, flange dimension horizontal 90 mm
Vertical hole spacing 45 mm, horizontal hole spacing 78 mm
This text is machine translated.
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Grey RAL 7035 housing, black collar RAL 9005
Device height: 139 mm, device width: 90 mm, device depth: 86 mm
Flange size vertical 75 mm, flange dimension horizontal 90 mm
Vertical hole spacing 45 mm, horizontal hole spacing 78 mm
This text is machine translated.
