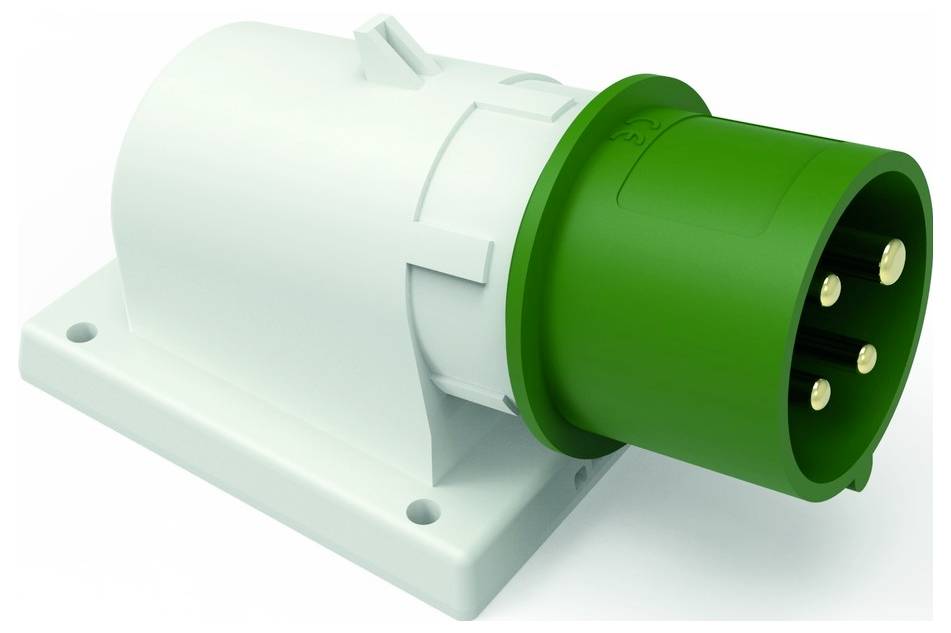

Image similar
Bals Elektrotechnik 267 267 CEE add-on plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 6002
- Protection type (IP) IP44
- Design: Mounting appliance plug
- IEC current 16 A.
- Voltage according to EN 60309-2: 50-500 V (100-300 Hz) green
- Time setting 10 h
- Colour code: Green
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Phase inverter: No.
- Mating direction: Angled
- Product type
CEE add-on plug
- Cores
4
- Dim
(W x H) 75 mm x 145 mm
- Width
75 mm
- Height
145 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546031 Bals Elektrotechnik 267 267 CEE add-on plug 1 pc(s)
Description
Mounted device plug
16A 4p (3P+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Contact holder/contacts: The contacts are bare brass, the contact carrier is made of polyamide
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Grey RAL 7035 housing, green collar RAL 6002
Device height: 145 mm, device width: 75 mm, device depth: 78 mm
Flange size vertical 100 mm, flange dimension horizontal 75 mm
Vertical hole spacing 74 mm, horizontal hole spacing 62 mm
This text is machine translated.
