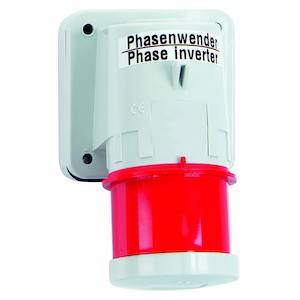

Bals Elektrotechnik 2674 2674 CEE phase inverter 32.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Number of pins: 5
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Design: Mounting appliance plug
- Phase inverter: Yes
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE phase inverter
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screw terminals
- Type
Angled
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
400 V
3000
Surface mounted plug
5
Plastic
Nickel-plated
32 A
Screwed terminal
Angled
CuZn
IP44
FALSE
6 h
Red
400 V (50+60 Hz) red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147223 Bals Elektrotechnik 2674 2674 CEE phase inverter 32.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147223 Bals Elektrotechnik 2674 2674 CEE phase inverter 32.0 A 5-pin 400 V 1 pc(s)
Description
Phase inverter as a surface-mounted device plug
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid gray RAL 7035, red collar RAL 3000, gray housing RAL 7035
Device height: 148 mm, device width: 90 mm, device depth: 116 mm
Flange size vertical 75 mm, flange dimension horizontal 90 mm
Vertical hole spacing 45 mm, horizontal hole spacing 78 mm
Other technical features: The hinged lid is self-closing
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid gray RAL 7035, red collar RAL 3000, gray housing RAL 7035
Device height: 148 mm, device width: 90 mm, device depth: 116 mm
Flange size vertical 75 mm, flange dimension horizontal 90 mm
Vertical hole spacing 45 mm, horizontal hole spacing 78 mm
Other technical features: The hinged lid is self-closing
