EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Number of pins: 4
- Time setting 9 h
- Colour code: Blue
- RAL number: 5015
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Design: Mounting appliance plug
- Phase inverter: No.
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Product type
CEE add-on plug
- Nominal voltage
230 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screw terminals
- Type
Angled
IP44
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
4
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135025 Bals Elektrotechnik 2685 2685 CEE add-on plug 32.0 A 4-pin 230 V 1 pc(s)
Description

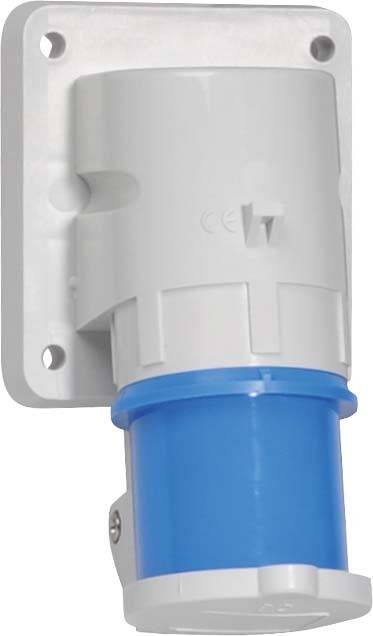

Mounted device plug
32A 4P (3P+PE) 230V (200 - 250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid gray RAL 7035, collar blue RAL 5015, housing gray RAL 7035
Device height: 148 mm, device width: 90 mm, device depth: 116 mm
Flange size vertical 75 mm, flange dimension horizontal 90 mm
Vertical hole spacing 45 mm, horizontal hole spacing 78 mm
Other technical features: The hinged lid is self-closing
This text is machine translated.
32A 4P (3P+PE) 230V (200 - 250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid gray RAL 7035, collar blue RAL 5015, housing gray RAL 7035
Device height: 148 mm, device width: 90 mm, device depth: 116 mm
Flange size vertical 75 mm, flange dimension horizontal 90 mm
Vertical hole spacing 45 mm, horizontal hole spacing 78 mm
Other technical features: The hinged lid is self-closing
This text is machine translated.
