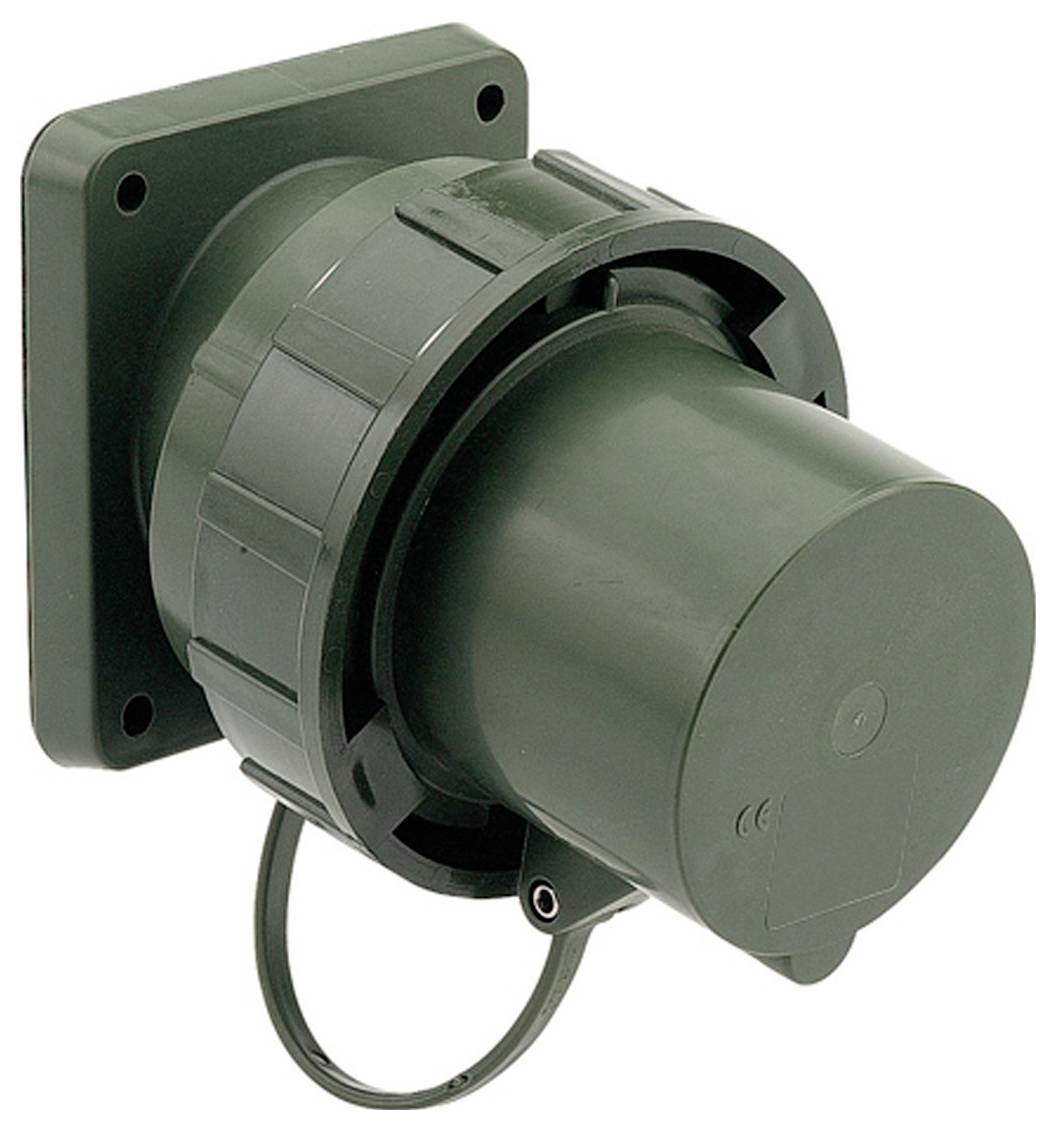

Bals Elektrotechnik 27045 27045 CEE add-on plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 6031
- Protection class (IP) IP67
- Design: Connectors on the equipment
- IEC current 63 A.
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Phase inverter: No.
- Mating direction: Angled
- Product type
CEE add-on plug
- Cores
5
- Dim
(L x W x H) 141 x 113.5 x 123 mm
- Length
141 mm
- Width
113.5 mm
- Height
123 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544987 Bals Elektrotechnik 27045 27045 CEE add-on plug 1 pc(s)
Description
Add-on device plug TN inclined
63A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green housing RAL 6031-F9
Device height: 123 mm, device width: 113.5 mm, device depth: 141 mm
Flange size vertical 107 mm, flange dimension horizontal 100 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The inclination is 10°, with sealing hood
VG type no.: VG 96919 BP 012, supply no.: 5935-12-335-8070
This text is machine translated.
63A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green housing RAL 6031-F9
Device height: 123 mm, device width: 113.5 mm, device depth: 141 mm
Flange size vertical 107 mm, flange dimension horizontal 100 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The inclination is 10°, with sealing hood
VG type no.: VG 96919 BP 012, supply no.: 5935-12-335-8070
