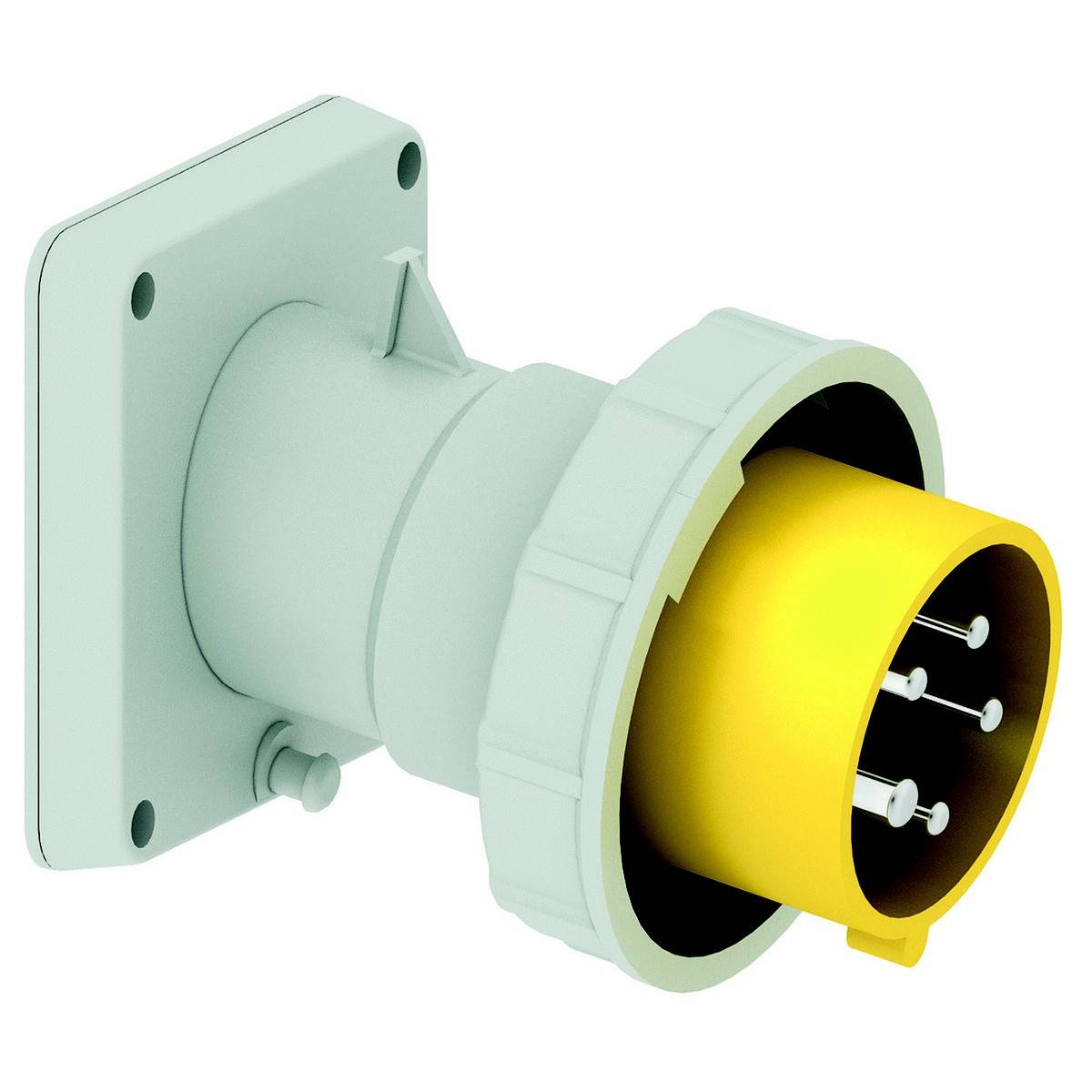

Bals Elektrotechnik 27233 27233 CEE add-on plug 16.0 A 5-pin 110 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Number of pins: 5
- Time setting 4 h
- Colour code: Yellow
- RAL number: 1012
- Protection class (IP) IP67
- Connection technology: Screw less terminal
- Design: Connectors on the equipment
- Phase inverter: No.
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE add-on plug
- Nominal voltage
110 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
Angled
IP67
- Factory colour
Yellow
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
110 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135043 Bals Elektrotechnik 27233 27233 CEE add-on plug 16.0 A 5-pin 110 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135043 Bals Elektrotechnik 27233 27233 CEE add-on plug 16.0 A 5-pin 110 V 1 pc(s)
Description
Attachment device plug QUICK-CONNECT TE inclined
16A 5P (3P+N+PE) 110V (57/100 - 75/130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: Other
Colour: Yellow collar RAL 1012, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 99 mm, device width: 86.5 mm, device depth: 115 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical characteristics: The slope is 10°
This text is machine translated.
