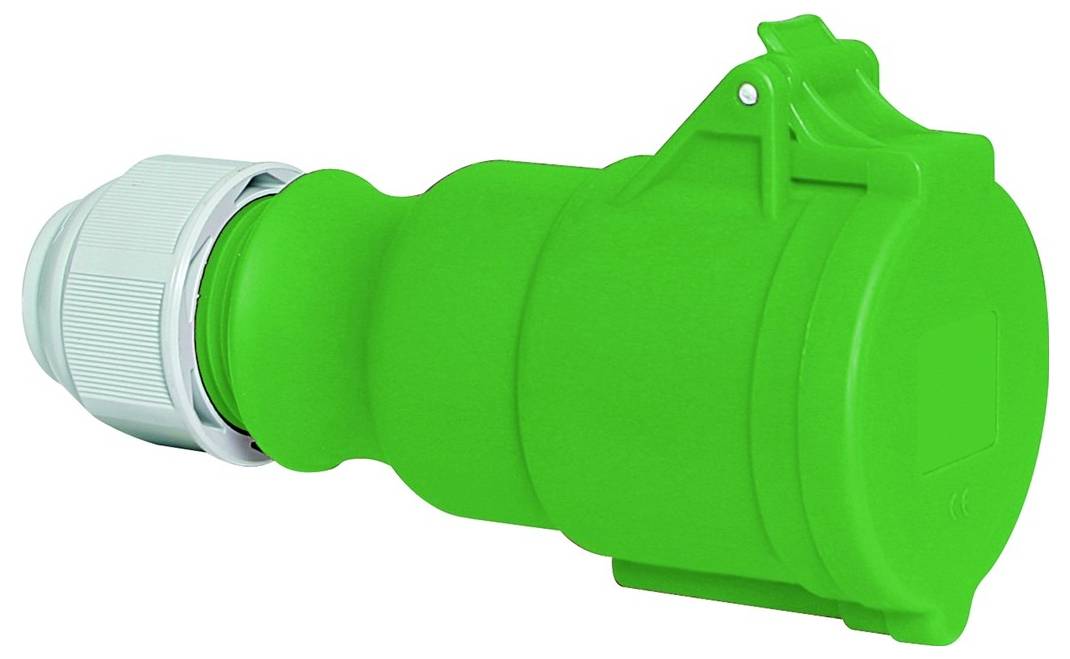

Bals Elektrotechnik 31019-TLS 31019-TLS CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 6002
- Protection type (IP) IP44
- IEC current 32 A.
- Voltage according to EN 60309-2: 50-500 V (100-300 Hz) green
- Time setting 10 h
- Colour code: Green
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- With straight plug
- Product type
CEE connector
- Cores
4
- Factory colour
RAL 6002 (Leaf Green)
- Dim
(W x H) 67 mm x 181 mm
- Width
67 mm
- Height
181 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547309 Bals Elektrotechnik 31019-TLS 31019-TLS CEE connector 1 pc(s)
Description
TLS coupling with MULTI-grip screw connection
32A 4p (3P+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Hinged lid green RAL 6002, cable screwing gray RAL 7035, housing green RAL 6002
Device height: 181 mm, device width: 67 mm, device depth: 94 mm
Other technical features: With multi-grip cable gland and integrated strain relief, the casing is one-piece, for cables with a min. Diameter from 11 mm to max. Diameter 23 mm
