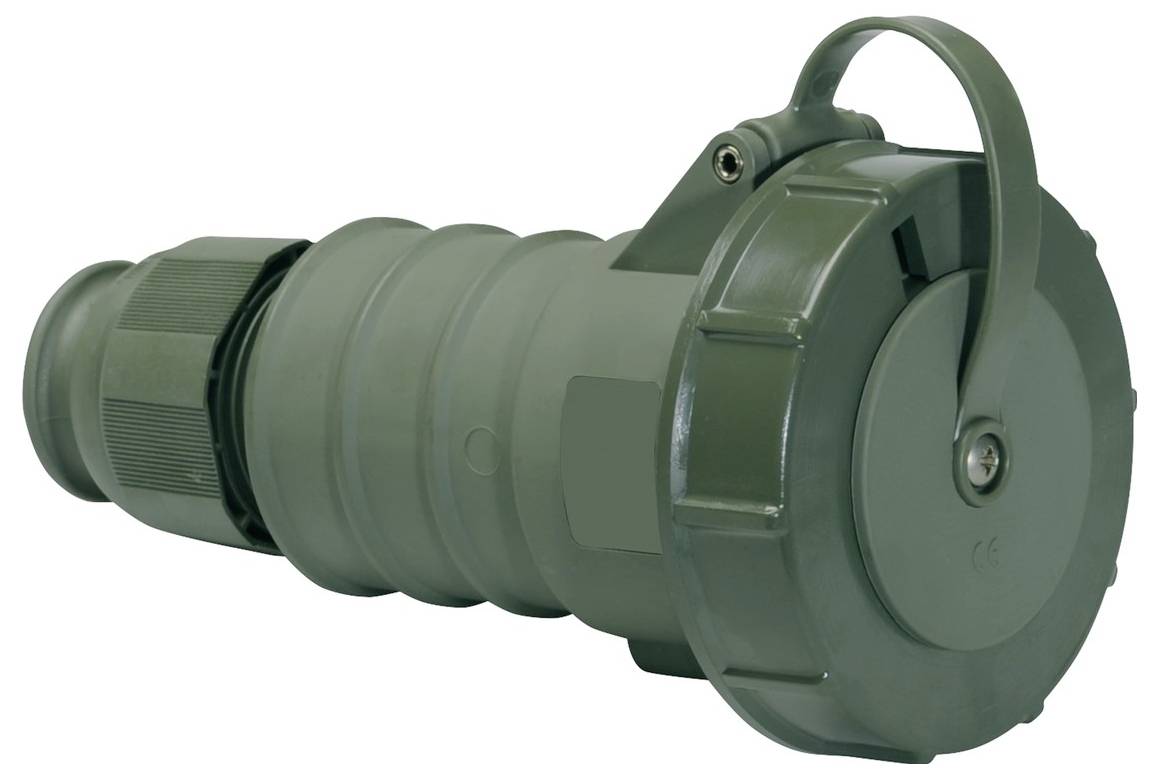

Image similar
Bals Elektrotechnik 310194 310194 CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 6031
- Protection class (IP) IP67
- IEC current 32 A.
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- With straight plug
- Product type
CEE connector
- Features
Screwless terminals
- Cores
3
- Factory colour
RAL 6031 (Brass Green)
- Dim
(L x W x H) 96.5 x 94 x 200 mm
- Length
96.5 mm
- Width
94 mm
- Height
200 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544984 Bals Elektrotechnik 310194 310194 CEE connector 1 pc(s)
Description
Coupling quick-connect TE design
32A 3p (2P+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: With cable gland
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9
Device height: 200 mm, device width: 94 mm, device depth: 96.5 mm
Other technical features: With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, for cable with a min. Diameter from 11 mm to max. Diameter 23mm, The bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 DS 044
This text is machine translated.
32A 3p (2P+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: With cable gland
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9
Device height: 200 mm, device width: 94 mm, device depth: 96.5 mm
Other technical features: With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, for cable with a min. Diameter from 11 mm to max. Diameter 23mm, The bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 DS 044
This text is machine translated.
