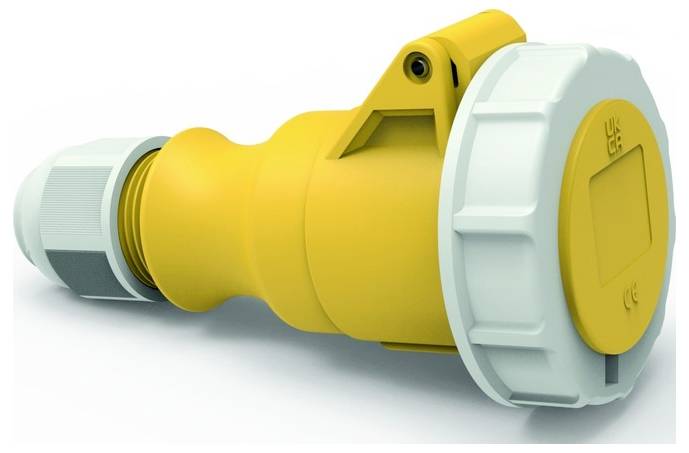

Image similar
Bals Elektrotechnik 310338 310338 CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 1012
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- With straight plug
- Product type
CEE connector
- Cores
4
- Dim
(L x W x H) 84 x 79 x 157 mm
- Length
84 mm
- Width
79 mm
- Height
157 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544985 Bals Elektrotechnik 310338 310338 CEE connector 1 pc(s)
Description
TLS coupling with MULTI-grip screw connection
16A 4P (3P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing yellow RAL 1012
Device height: 157 mm, device width: 79 mm, device depth: 84 mm
Other technical features: The casing is one-piece, for cables with a min. Diameter from 8 mm to max. Diameter 18 mm, with multi-grip cable gland and integrated strain relief
This text is machine translated.
16A 4P (3P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing yellow RAL 1012
Device height: 157 mm, device width: 79 mm, device depth: 84 mm
Other technical features: The casing is one-piece, for cables with a min. Diameter from 8 mm to max. Diameter 18 mm, with multi-grip cable gland and integrated strain relief
This text is machine translated.
