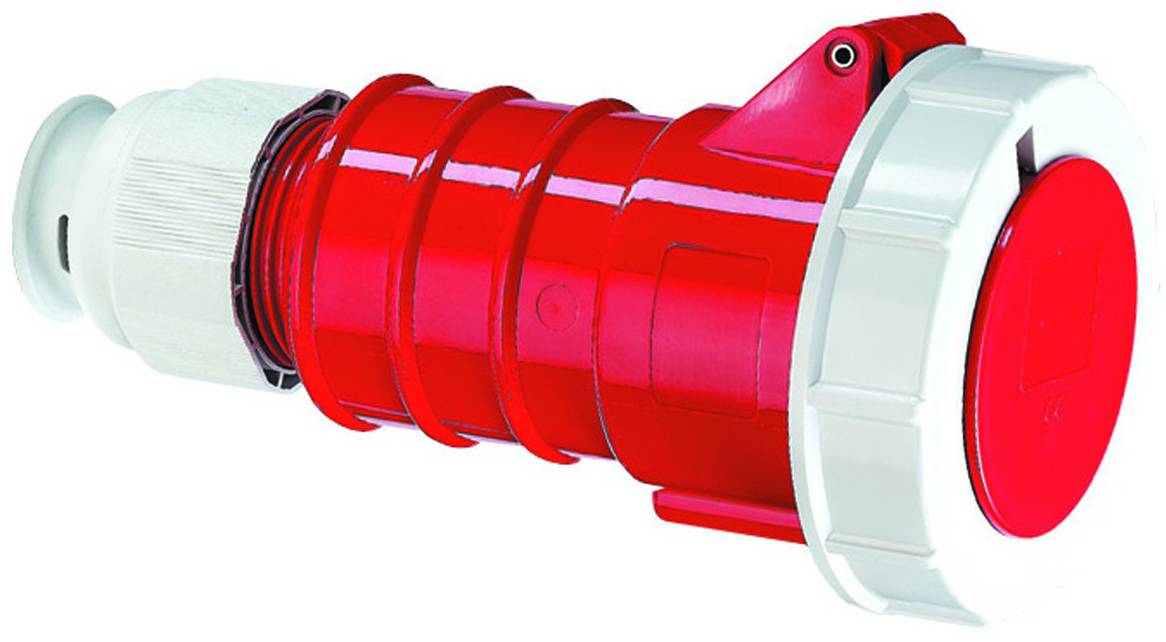

Image similar
Bals Elektrotechnik 310426 310426 CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 3000
- Protection class (IP) IP67
- IEC current 32 A.
- Voltage according to EN 60309-2: Other
- Time setting 3 h
- Colour code: Red
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- With straight plug
- Product type
CEE connector
- Features
Screwless terminals
- Cores
4
- Dim
(L x W x H) 97 x 94 x 198 mm
- Length
97 mm
- Width
94 mm
- Height
198 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544487 Bals Elektrotechnik 310426 310426 CEE connector 1 pc(s)
Description
QUICK-CONNECT TE COUPLING
32A 4p (3P+PE) 380 and 440 V (380V~(50Hz) 440 V~ (60Hz) 3h IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: With cable gland
Colour: Bayonet ring, gray RAL 7035, cable gland gray RAL 7035, housing red RAL 3000, hinged cover red RAL 3000
Device height: 198 mm, device width: 94 mm, device depth: 97 mm
This text is machine translated.
32A 4p (3P+PE) 380 and 440 V (380V~(50Hz) 440 V~ (60Hz) 3h IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: With cable gland
Colour: Bayonet ring, gray RAL 7035, cable gland gray RAL 7035, housing red RAL 3000, hinged cover red RAL 3000
Device height: 198 mm, device width: 94 mm, device depth: 97 mm
This text is machine translated.
