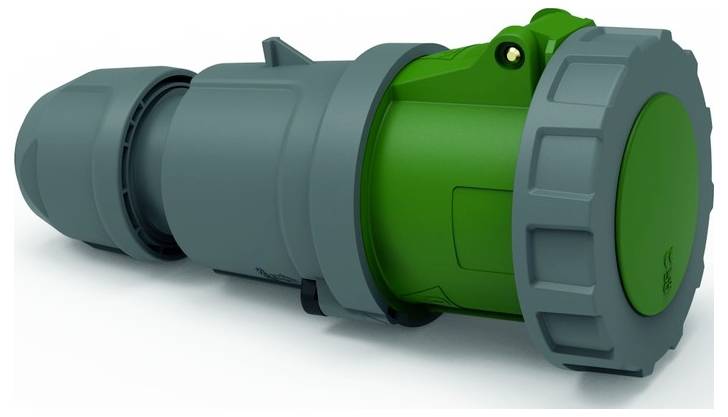

Image similar
Bals Elektrotechnik 31183 31183 CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 6002
- Protection class (IP) IP67
- IEC current 63 A.
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- With straight plug
- Product type
CEE connector
- Cores
5
- Dim
(L x W x H) 115 x 110 x 251 mm
- Length
115 mm
- Width
110 mm
- Height
251 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546542 Bals Elektrotechnik 31183 31183 CEE connector 1 pc(s)
Description
TE coupling
63A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Green hinged lid RAL 6002, black actuating slider RAL 9005, green collar RAL 6002, dark gray cover of housing RAL 7012, dark gray cable gland RAL 7012, dark gray bayonet ring RAL 7012
Device height: 251 mm, device width: 110 mm, device depth: 115 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it by means of a screwdriver. With multi-grip cable gland and integrated strain relief
This text is machine translated.
63A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Green hinged lid RAL 6002, black actuating slider RAL 9005, green collar RAL 6002, dark gray cover of housing RAL 7012, dark gray cable gland RAL 7012, dark gray bayonet ring RAL 7012
Device height: 251 mm, device width: 110 mm, device depth: 115 mm
Other technical features: For cables with a min. Diameter from 16mm to max. Diameter 36mm, The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it by means of a screwdriver. With multi-grip cable gland and integrated strain relief
