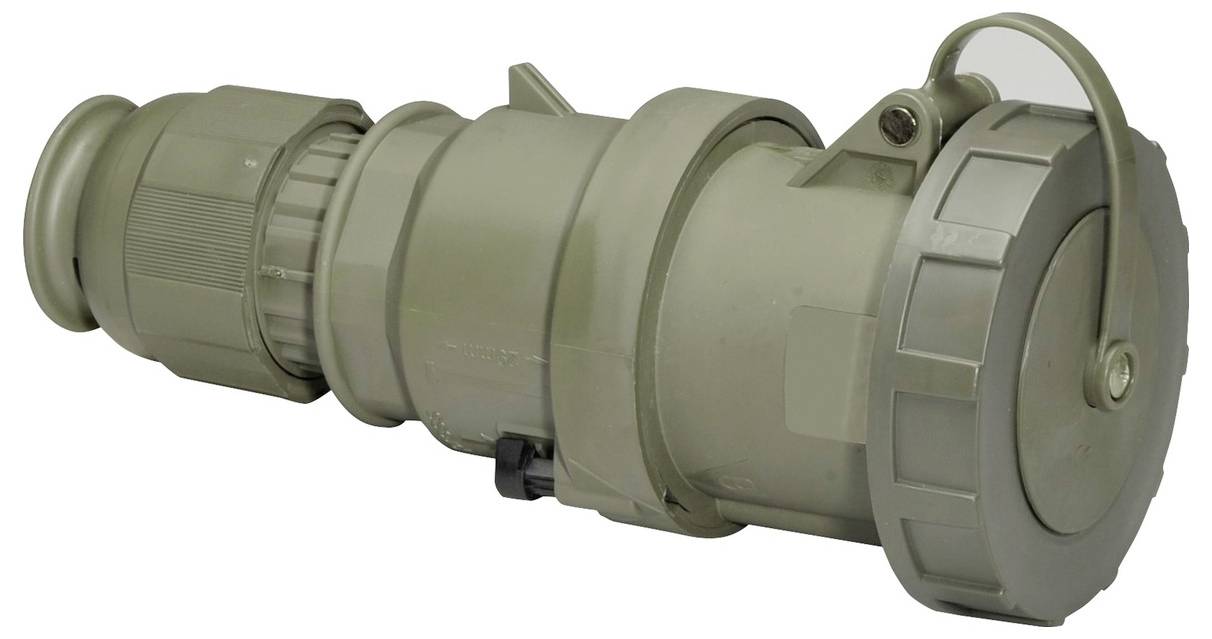

Bals Elektrotechnik 31325 31325 CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 6031
- Protection class (IP) IP67
- IEC current 63 A.
- Voltage according to EN 60309-2: Other
- Time setting 11 h
- Colour code: Green
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- With straight plug
- Product type
CEE connector
- Cores
5
- Factory colour
RAL 6031 (Brass Green)
- Dim
(L x W x H) 115 x 111 x 256 mm
- Length
115 mm
- Width
111 mm
- Height
256 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547070 Bals Elektrotechnik 31325 31325 CEE connector 1 pc(s)
Description
TN connector
63A 5P (3P+N+PE) 440 V (250/440 - 265/460V~) 11H IP67
Frequency: 60Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Bronze green hinged lid RAL 6031-F9, bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green housing cover RAL 6031-F9, black actuator slider RAL 9005
Device height: 256 mm, device width: 111 mm, device depth: 115 mm
Other technical features: A pilot contact is available, With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, the connection of the housing parts is screw-less and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 16mm to max. Diameter 36mm, The bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 DS 011
This text is machine translated.
63A 5P (3P+N+PE) 440 V (250/440 - 265/460V~) 11H IP67
Frequency: 60Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Bronze green hinged lid RAL 6031-F9, bronze green cable gland RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green housing cover RAL 6031-F9, black actuator slider RAL 9005
Device height: 256 mm, device width: 111 mm, device depth: 115 mm
Other technical features: A pilot contact is available, With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, the connection of the housing parts is screw-less and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 16mm to max. Diameter 36mm, The bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 DS 011
This text is machine translated.
