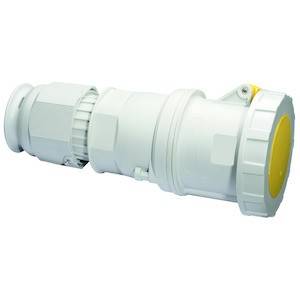

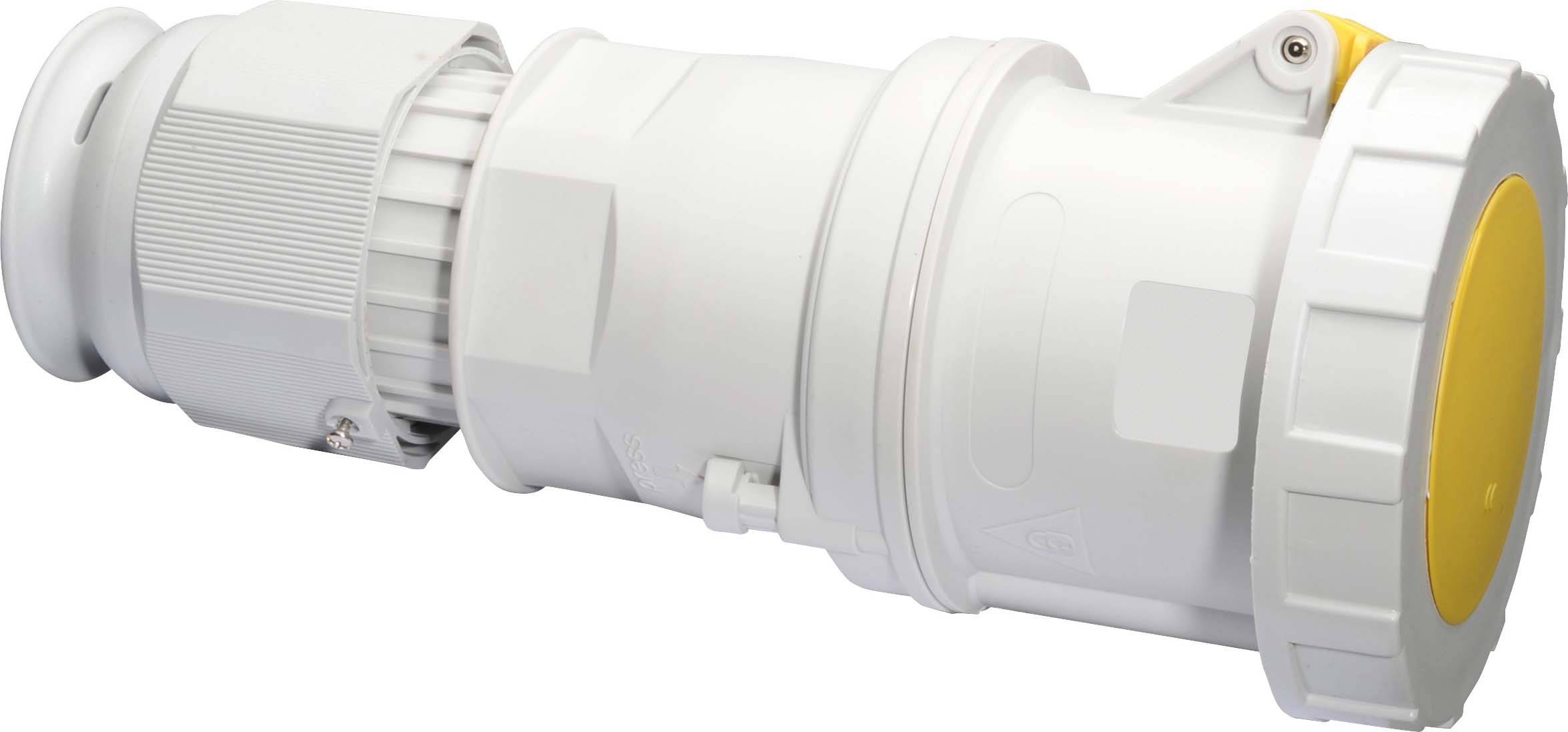

Bals Elektrotechnik 3190 3190 CEE connector 125.0 A 3-pin 110 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 125 A.
- Number of poles: 3
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- RAL number: 1012
- Protection class (IP) IP67
- Connection technology: Screw terminal
- With straight plug
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE connector
- Nominal voltage
110 V
- Nominal current
125.0 A
- Nominal current - rounded value
125 A
- Type A
Screw terminals
- Type
straight
IP67
- Factory colour
Yellow
- Content
1 pc(s)
- Number of pins
3
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
110 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147409 Bals Elektrotechnik 3190 3190 CEE connector 125.0 A 3-pin 110 V 1 pc(s)
Description
TE coupling
125A 3P (2P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 50.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, housing cover gray RAL 7035, cable gland gray RAL 7035, collar gray RAL 7035

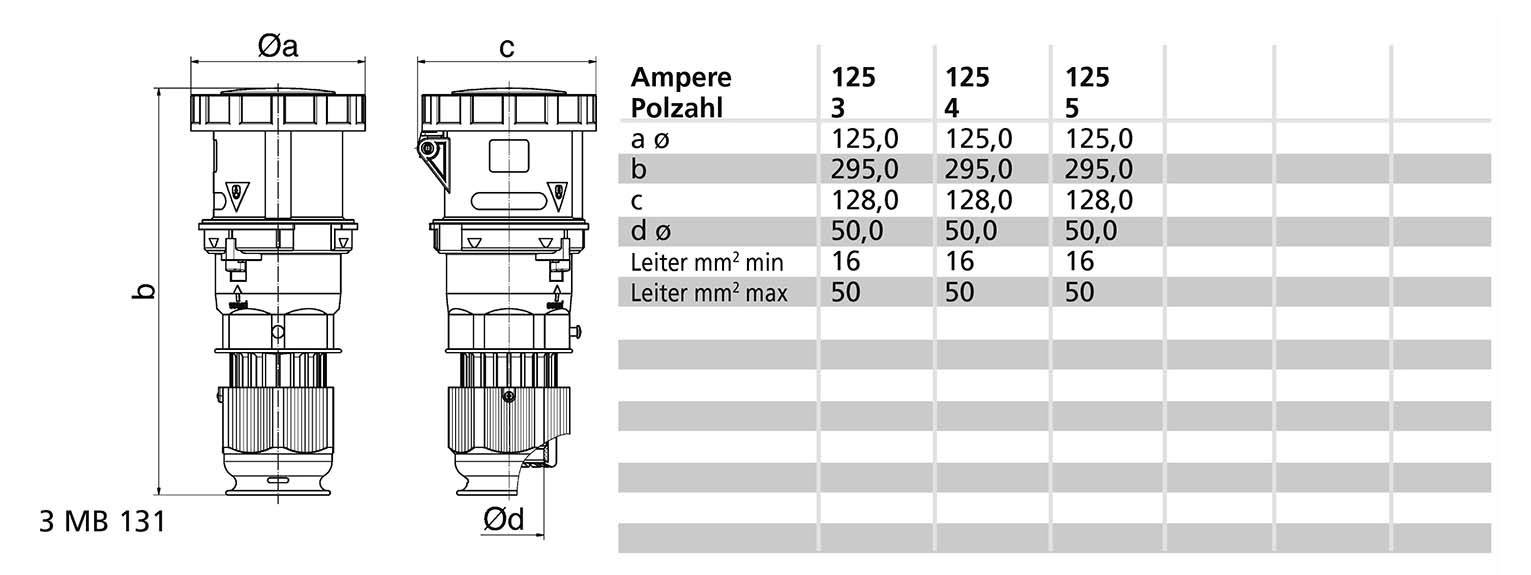

Device height: 295 mm, device width: 125 mm, device depth: 128 mm
Other technical features: For cables with a min. Diameter from 26mm to max. Diameter 50mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
125A 3P (2P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 50.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, housing cover gray RAL 7035, cable gland gray RAL 7035, collar gray RAL 7035
Device height: 295 mm, device width: 125 mm, device depth: 128 mm
Other technical features: For cables with a min. Diameter from 26mm to max. Diameter 50mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
