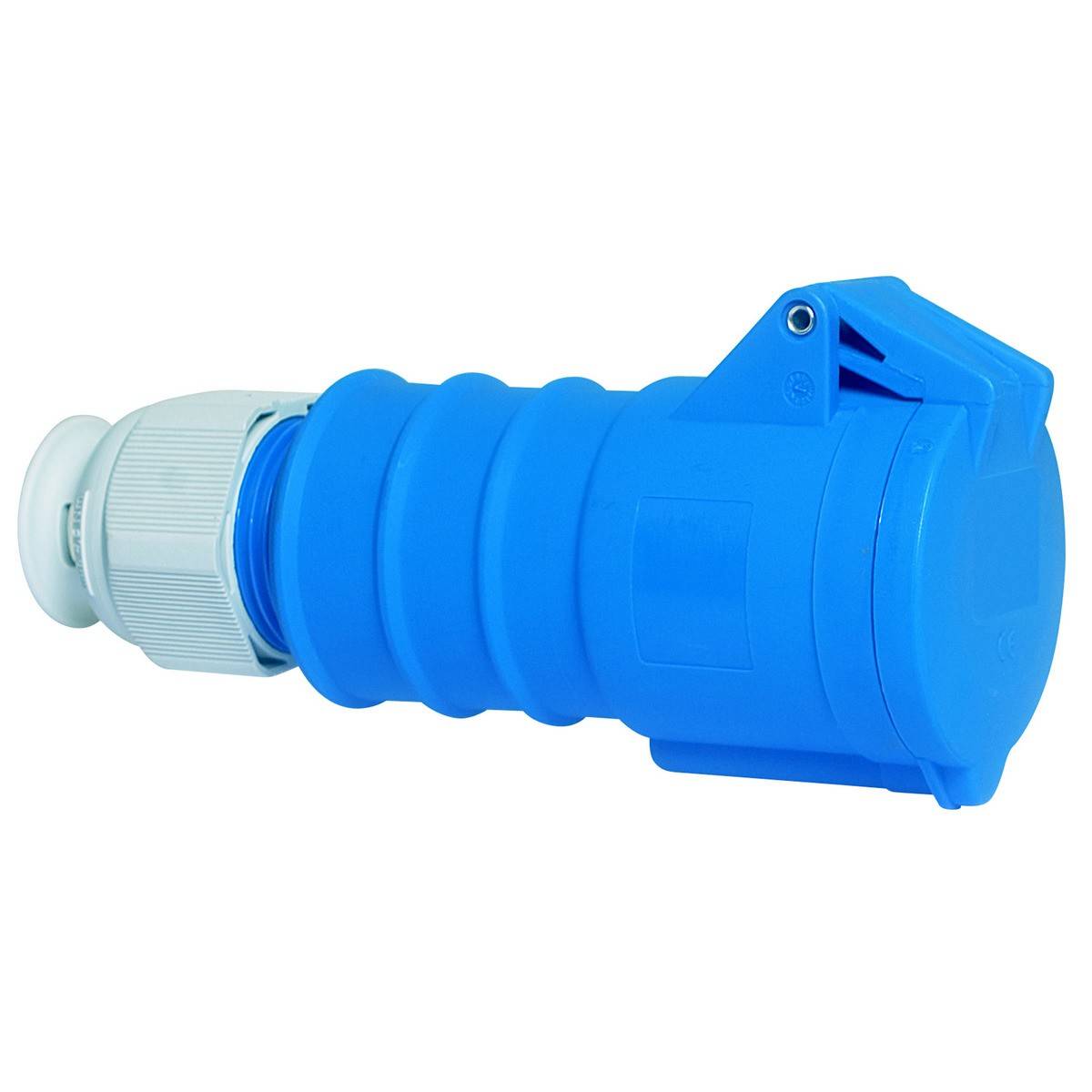

Bals Elektrotechnik 31968 31968 CEE connector 32.0 A 3-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of poles: 3
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 6 h
- Colour code: Blue
- RAL number: 5015
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- With straight plug
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE connector
- Nominal voltage
230 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
straight
IP44
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
3
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3144939 Bals Elektrotechnik 31968 31968 CEE connector 32.0 A 3-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3144939 Bals Elektrotechnik 31968 31968 CEE connector 32.0 A 3-pin 230 V 1 pc(s)
Description
QUICK-CONNECT TE COUPLING
32A 3P (2P+PE) 230V (200 - 250V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: With cable gland
Colour: Blue housing RAL 5015, blue flap lid RAL 5015, cable gland gray RAL 7035

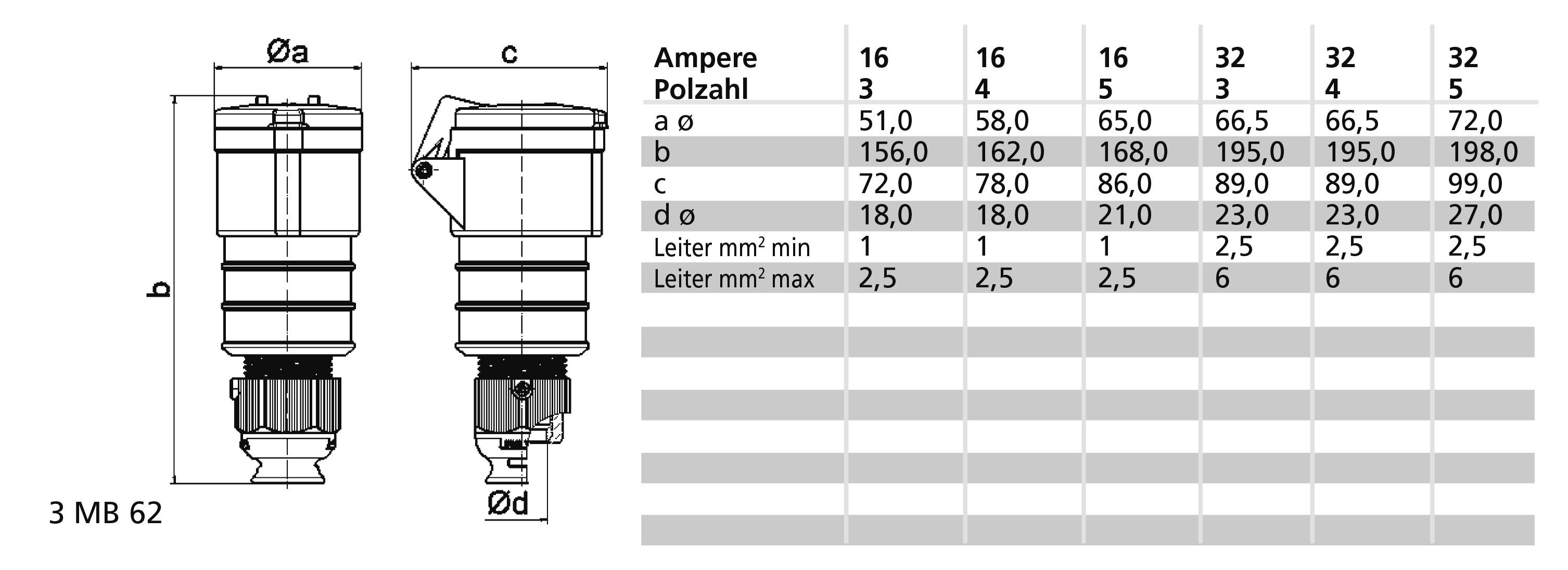

Device height: 198 mm, device width: 66 mm, device depth: 91 mm
Other technical features: For cables with a min. Diameter from 11 mm to max. Diameter 23mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
32A 3P (2P+PE) 230V (200 - 250V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: With cable gland
Colour: Blue housing RAL 5015, blue flap lid RAL 5015, cable gland gray RAL 7035
Device height: 198 mm, device width: 66 mm, device depth: 91 mm
Other technical features: For cables with a min. Diameter from 11 mm to max. Diameter 23mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
