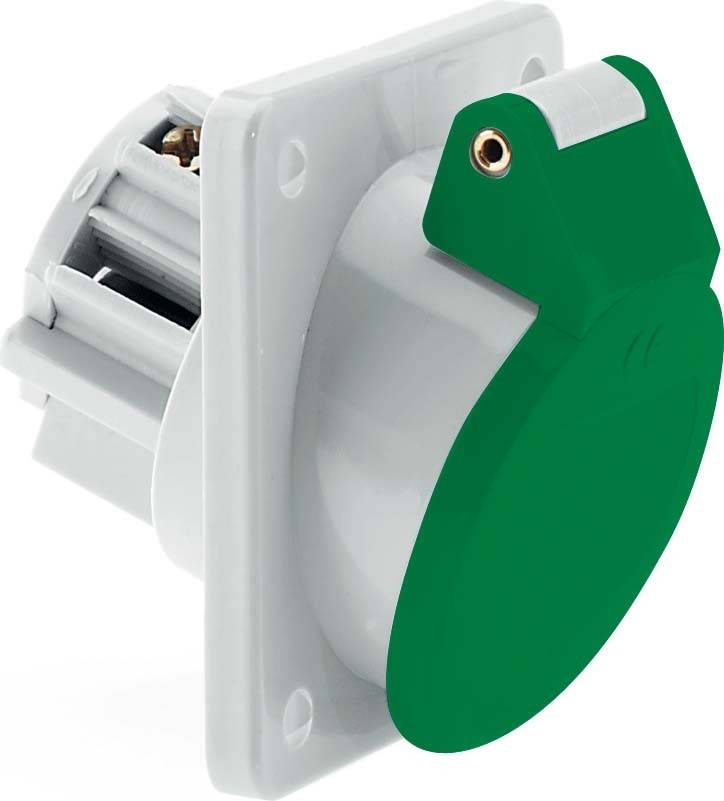

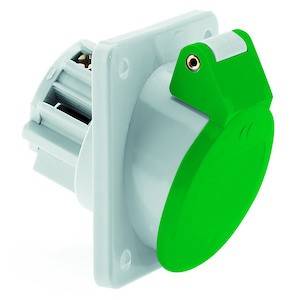

Bals Elektrotechnik 422 422 CEE add-on socket 16.0 A 2-pin 50 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 20-25 V / 40-50 V (100-200 Hz) green
- Number of poles: 2
- Time setting 4 h
- Colour code: Green
- RAL number: 6002
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Mating direction: Angled
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Flange size vertical 68 mm
- Hole spacing vertical 53 mm
- Flange size horizontal 62 mm
- Hole spacing horizontal 47 mm
- Product type
CEE add-on socket
- Nominal voltage
50 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
Angled
IP44
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
2
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
50 V
6002
2
Plastic
Nickel-plated
16 A
Screwed terminal
Angled
CuZn
IP44
FALSE
4 h
Green
20-25 V / 40-50 V (100-200 Hz) green
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146968 Bals Elektrotechnik 422 422 CEE add-on socket 16.0 A 2-pin 50 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146968 Bals Elektrotechnik 422 422 CEE add-on socket 16.0 A 2-pin 50 V 1 pc(s)
Description
Low-voltage mounted socket
16A 2p (2P) <50V green 100-200Hz (20 to 25 and 40 to 50V) 4h IP44
Frequency 100 Hz - 200 Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid green RAL 6002, housing gray RAL 7035

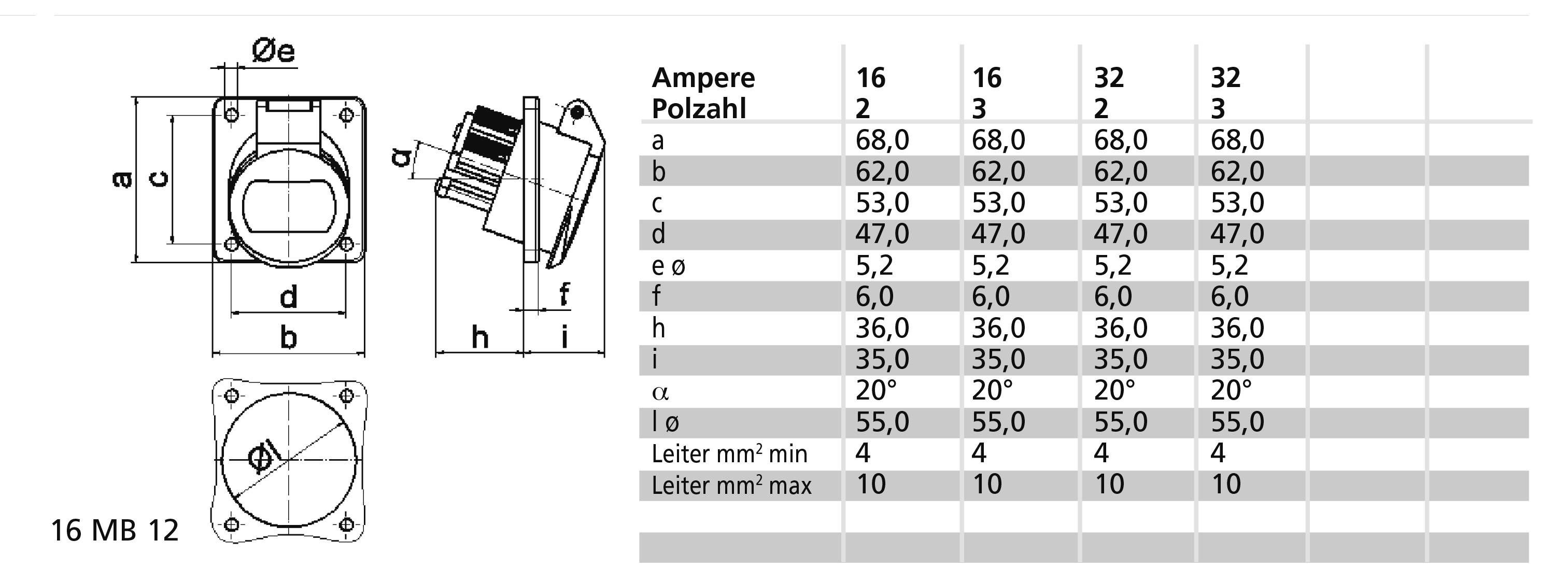

Device height: 69 mm, device width: 62 mm, device depth: 70 mm
Flange size vertical 68 mm, flange dimension horizontal 62 mm
Vertical hole spacing 53 mm, horizontal hole spacing 47 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
16A 2p (2P) <50V green 100-200Hz (20 to 25 and 40 to 50V) 4h IP44
Frequency 100 Hz - 200 Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid green RAL 6002, housing gray RAL 7035
Device height: 69 mm, device width: 62 mm, device depth: 70 mm
Flange size vertical 68 mm, flange dimension horizontal 62 mm
Vertical hole spacing 53 mm, horizontal hole spacing 47 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
