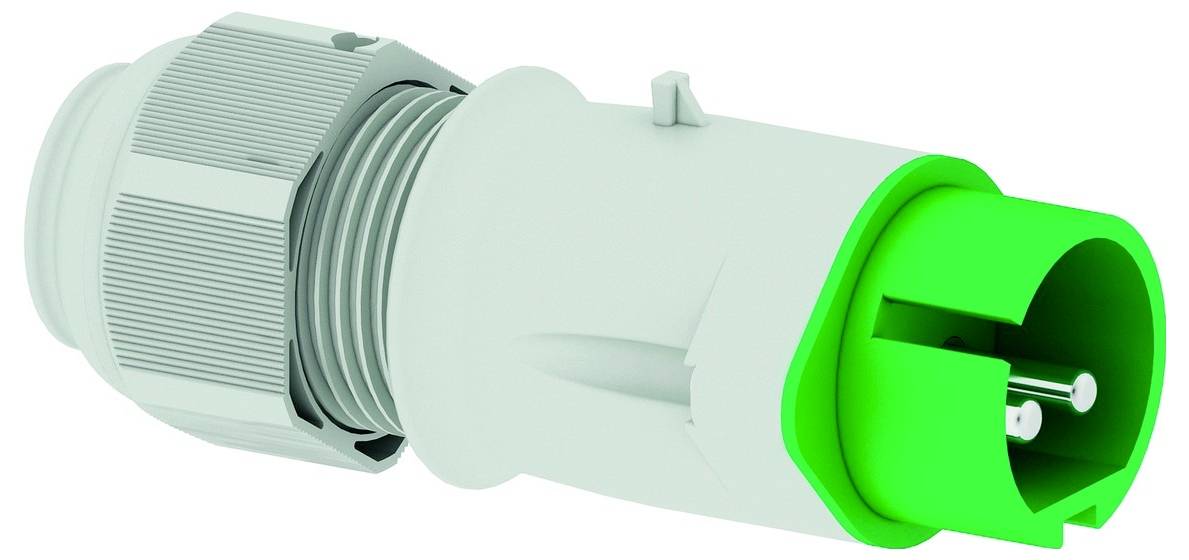

Bals Elektrotechnik 4425 4425 CEE plug 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 2
- Material: Plastic
- RAL number: 6002
- Protection type (IP) IP44
- IEC current 16 A.
- Voltage according to EN 60309-2: 20-25 V / 40-50 V (300 Hz) green
- Time setting 2 h
- Colour code: Green
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Phase inverter: No.
- With straight plug
- Product type
CEE plug
- Dim
(L x W x H) 57 x 62 x 141 mm
- Length
57 mm
- Width
62 mm
- Height
141 mm
- Content
1 pc(s)
- Number of pins
2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547815 Bals Elektrotechnik 4425 4425 CEE plug 1 pc(s)
Description
Low-voltage plug
16A 2p (2P) <50V green 300Hz 2h IP44
Frequency: 300Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Collar green RAL 6002, housing cover gray RAL 7035, cable gland gray RAL 7035
Device height: 141 mm, device width: 62 mm, device depth: 57 mm
Other technical features: With multi-grip cable gland and integrated strain relief, for cable with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
16A 2p (2P) <50V green 300Hz 2h IP44
Frequency: 300Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: With cable gland
Colour: Collar green RAL 6002, housing cover gray RAL 7035, cable gland gray RAL 7035
Device height: 141 mm, device width: 62 mm, device depth: 57 mm
Other technical features: With multi-grip cable gland and integrated strain relief, for cable with a min. Diameter from 11 mm to max. Diameter 23 mm
This text is machine translated.
