Bals Elektrotechnik 468 468 CEE plug 16.0 A 3-pin 50 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 20-25 V / 40-50 V (100-200 Hz) green
- Number of poles: 3
- Time setting 4 h
- Colour code: Green
- RAL number: 6002
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Design: Other
- Phase inverter: No.
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
50 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
Angled
IP44
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
3
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
50 V
6002
Other
3
Plastic
Untreated
16 A
Screwed terminal
Angled
CuZn
IP44
FALSE
4 h
Green
20-25 V / 40-50 V (100-200 Hz) green
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147156 Bals Elektrotechnik 468 468 CEE plug 16.0 A 3-pin 50 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147156 Bals Elektrotechnik 468 468 CEE plug 16.0 A 3-pin 50 V 1 pc(s)
Description

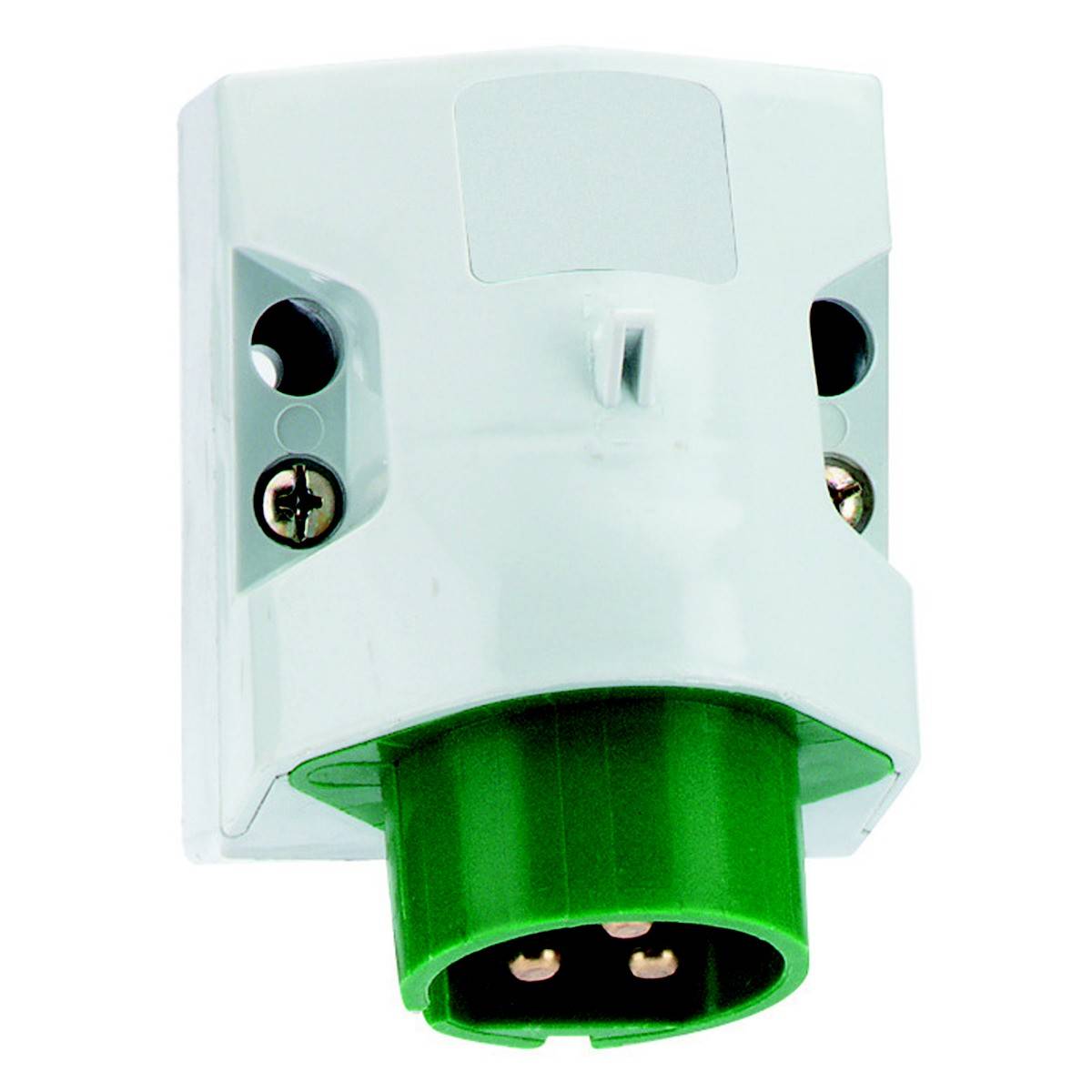

Low-voltage wall connector
16A 3p (3P) <50V green 100-200Hz 4h IP44
Frequency 100 Hz - 200 Hz
Technical color: Green RAL 6002

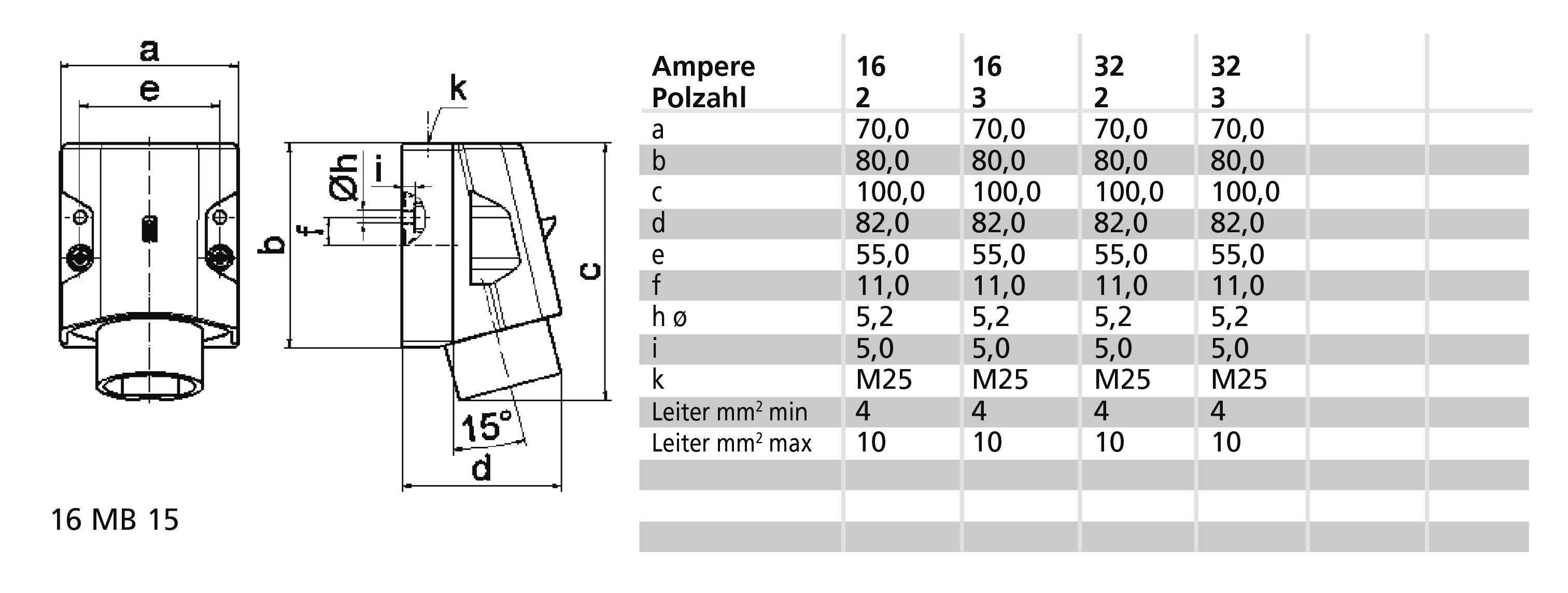

Casing size: 80x70 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Lower part of the casing gray RAL 7035, upper part of the casing gray RAL 7035, collar green RAL 6002
Device height: 102 mm, device width: 70 mm, device depth: 63 mm
Other technical characteristics: The cable entry is open once
This text is machine translated.
16A 3p (3P) <50V green 100-200Hz 4h IP44
Frequency 100 Hz - 200 Hz
Technical color: Green RAL 6002
Casing size: 80x70 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Lower part of the casing gray RAL 7035, upper part of the casing gray RAL 7035, collar green RAL 6002
Device height: 102 mm, device width: 70 mm, device depth: 63 mm
Other technical characteristics: The cable entry is open once
