Bals Elektrotechnik 51447 51447 Splitter 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 170 mm
- Width 118 mm
- Depth: 107 mm
- Colour: grey
- Protection type (IP) IP44
- Housing material: Plastic
- Protection: LS-switch
- Cable length 0 m
- Number of Schuko sockets: 2
- Military version: No.
- CEE socket - 16 A: Without
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Feed/connection options: 2 lines (loop/loop-through)
- Handling: Wall-mounting
- Number of circuit breakers: 2
- Diameter entrance: M25
- Product type
Splitter
- Dim
(L x W x H) 107 x 118 x 170 mm
- Length
107 mm
- Width
118 mm
- Height
170 mm
- No. of PG sockets
2
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546036 Bals Elektrotechnik 51447 51447 Splitter 1 pc(s)
Description

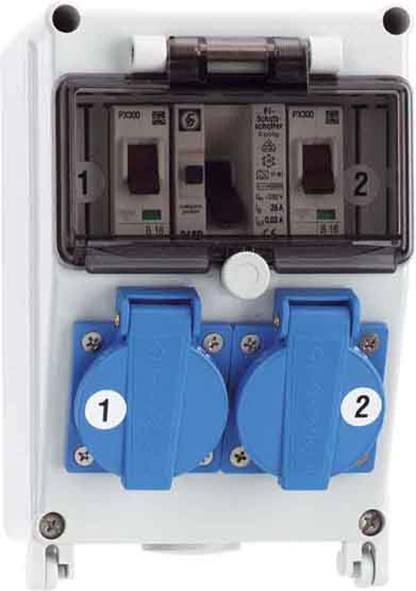

Distributor, plastic, wall mounting, protection type: IP44, housing: 170 x 118 mm with control flap, device color: Lower part gray RAL 7035, upper part of housing gray RAL 7035, device height: 2 mm, device width: 2 mm, device depth: 107 mm, equipment: 170 x earthing contact socket 16A 230V, security/protection measure: 118 x B-breaker 16A 1p with FI-circuit breaker 25/0.03 2p, cable entry/connection: 1 x M25 top (open) 1 x M25 below (locked) Additional information: Ready wired for connection
