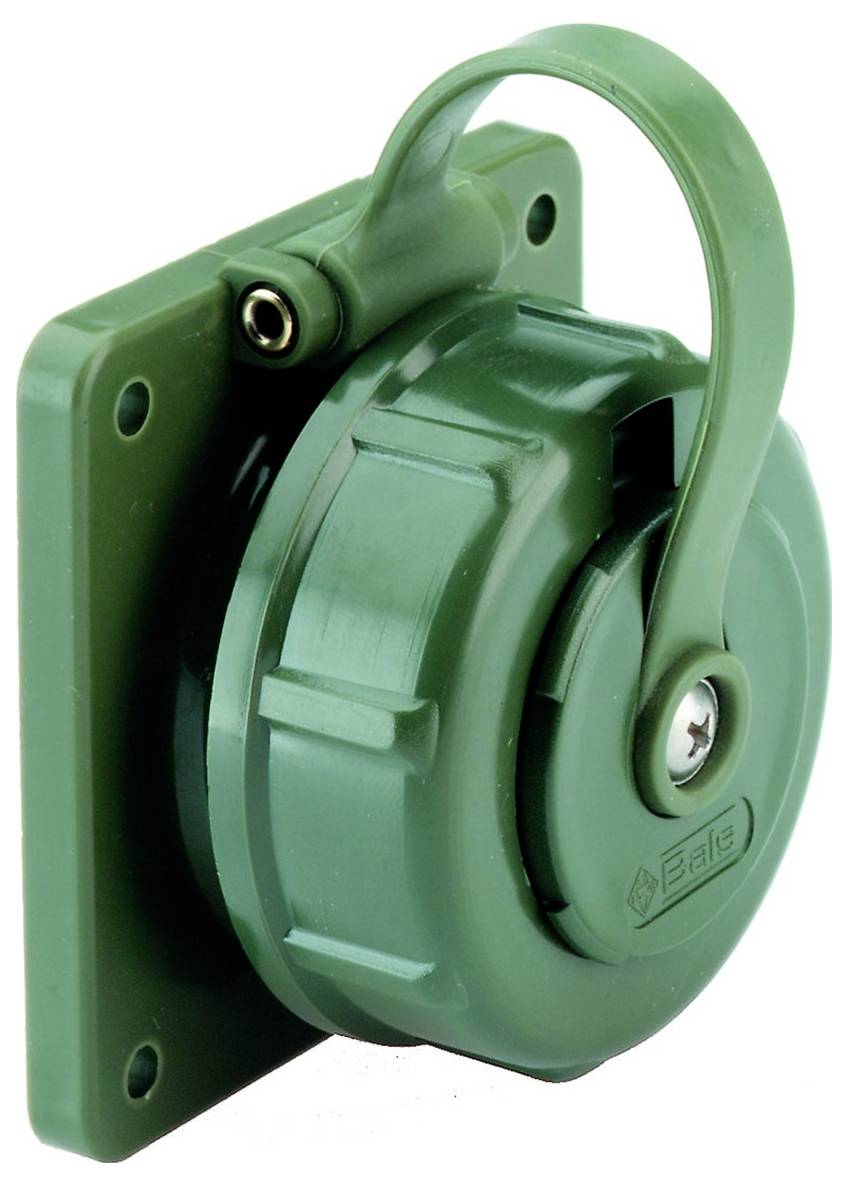

Bals Elektrotechnik 7185 Add-on socket incl. lid RAL 6031 (Brass Green)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Design: Earthing contact pin
- Material: Plastic
- Colour: green
- RAL number: 6031
- Protection class (IP) IP68
- Nominal voltage: 250 V
- Nominal current: 16 A
- With hinged cover: Yes
- Halogen-free: Yes
- Material quality: Thermoplastic
- Connection technology: Screw terminal
- With straight plug
- For "difficult conditions" (according to VDE): No.
- Flange dimensions 75 x 75 mm
- Product type
Add-on socket
- Light bulb features
incl. lid
- Outlets
1
- Mounting type
Flange
- Flange dimensions
75 mm
- Factory colour
RAL 6031 (Brass Green)
- Dim
(W x H x D) 75 x 75 x 78 mm
- Width
75 mm
- Height
75 mm
- Depth
78 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550723 Bals Elektrotechnik 7185 Add-on socket incl. lid RAL 6031 (Brass Green)
Description
Earthing contact surface-mounted socket-outlet, Belgian/French system
16A 3P (2P+PE) 250V (250V~) IP68
Frequency AC
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: Cap screw terminal
Cable entry: Other
System: Belgian/French system - Type E.
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green bayonet ring RAL 6031-F9
Device height: 75 mm, device width: 75 mm, device depth: 78 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Halogen-free: True
Other technical features: The connector is rearward, With center contact Belgian/French system, The bayonet cover is attached to the housing with a fastening strap
This text is machine translated.
