Technical specifications
- Design: Earthing contact pin
- Material: Plastic
- With hinged cover: Yes
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Number of poles: 3
- Nominal current: 16 A
- Nominal voltage: 250 V
- Product type
PG socket
- Light bulb features
incl. lid
- Outlets
1
- Nominal voltage
250 V
- Mounting type
Wall
IP44

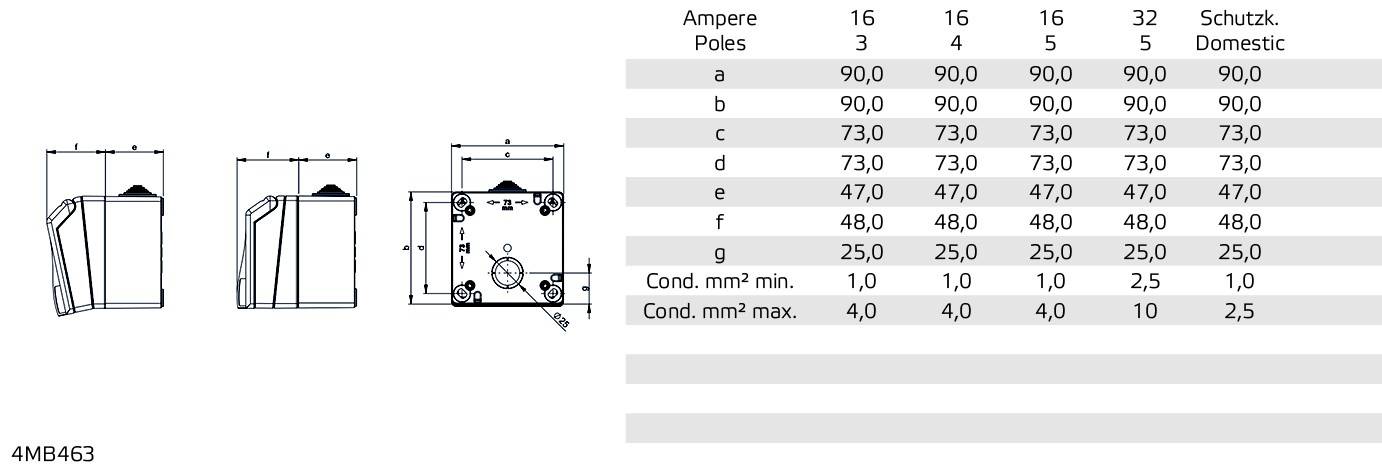

- Dim
(W x H x D) 90 x 90 x 95 mm
- Width
90 mm
- Height
90 mm
- Depth
95 mm
- Type
Protective contact pin
- Content
1 pc(s)
- Connection
Clamp
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3145929 Bals Elektrotechnik 72011 PG socket incl. lid IP44
User & Safety Instructions
User & Safety Instructions 3145929 Bals Elektrotechnik 72011 PG socket incl. lid IP44

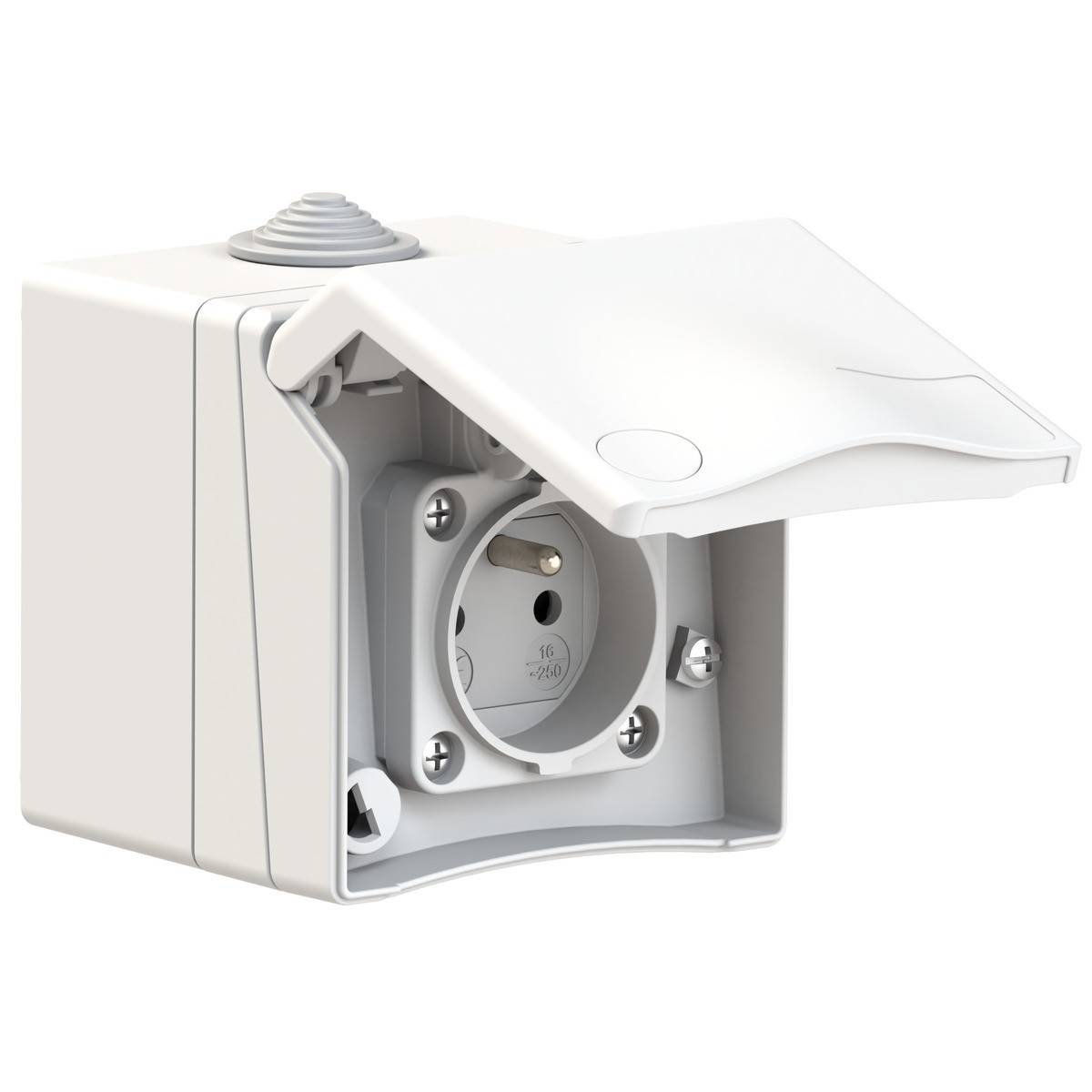

Description
Earthing contact wall socket-outlet straight
16A 3P (2P+PE) 250V (250V~) IP44
Frequency AC
Housing size: 90x90 mm
Contact carrier/contacts: The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material ABS + Polycarbonate
Connection technology: Screw less terminal
Cable inlet: Kink protection bushing
System: Belgian/French system - Type E.
Colour: White similar to RAL 9016
Device height: 90 mm, device width: 90 mm, device depth: 95 mm
Other technical features: Architectural program TH, hinged lid with labeling field (optional: Locking lock), the cable entry is open once at the top, closed once at the bottom and once at the back, with center contact Belgian/French system
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP44
Frequency AC
Housing size: 90x90 mm
Contact carrier/contacts: The contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material ABS + Polycarbonate
Connection technology: Screw less terminal
Cable inlet: Kink protection bushing
System: Belgian/French system - Type E.
Colour: White similar to RAL 9016
Device height: 90 mm, device width: 90 mm, device depth: 95 mm
Other technical features: Architectural program TH, hinged lid with labeling field (optional: Locking lock), the cable entry is open once at the top, closed once at the bottom and once at the back, with center contact Belgian/French system
This text is machine translated.
